Models 427 and 427R Installation

26

Stainless Steel Door Panel

Before installing the stainless steel door panel, check the

panel carefully. Options are available for kickplate/grille

height, overall height, door swing and door lock.

The stainless steel panel is mounted to the door by

passing the #8–32 x

5

/

8

" screws provided, through holes in

the door frame from the rear, and into the threaded holes

in the door panel. Refer to the illustration below. The

screw holes inside the door are hidden under a cover flap

on the door gasket. It is necessary to lift the flap to insert

the screws.

After the door panel installation is complete, apply the

cover patches or plugs provided over the holes on the

inside surface of the door.

For installation of stainless steel panels on model 427R

drawers, refer to model 427R drawer panels on page 28.

Overlay Door Panel

Inspect the door panel for the minimum

5

/

8

" (16) thickness,

the greater width requirements for the stiles (to cover the

door hinges), and the finished inside edge. The glass door

panel has a weight limit of 20 lbs (9 kg). Refer to the wine

storage section of the Sub-Zero design guide for addi-

tional panel information.

Decide if the handle will be attached through the glass

door frame or just through the decorative door panel. If it

is just through the door panel, the handle must be

attached first.

If a lock is to be used, the body of the lock should be

installed on the door panel after the panel is mounted.

Decorative panels are attached to the model 427 and

427R door using #8 x

5

/

8

" square drive screws passing

through the door frame from the rear, behind the gasket

into the panel. The door panel is marked for screw loca-

tions by the use of ‘tenon centers’, which are temporarily

inserted into the

1

/

4

" (6) diameter holes in the front of the

glass door frame. Refer to the illustration.

With the wine storage unit secured in position and the

door closed, the panel is held in the desired position on

the door and rapped by hand from the front, putting center

marks on the rear surface of the panel. If the door panel is

made of such a material that pre-drilling is needed, all of

the mounting holes should be marked. If not, only enough

holes to hold the panel in place temporarily, are necessary.

The door panel is then lowered from the door frame, tenon

centers removed, the door opened and the screws driven

into the panel through the black tape on the door frame,

using the center marks to locate the screws.

DOOR

FRAME

BACK OF

PANEL

STAINLESS

STEEL
PANEL

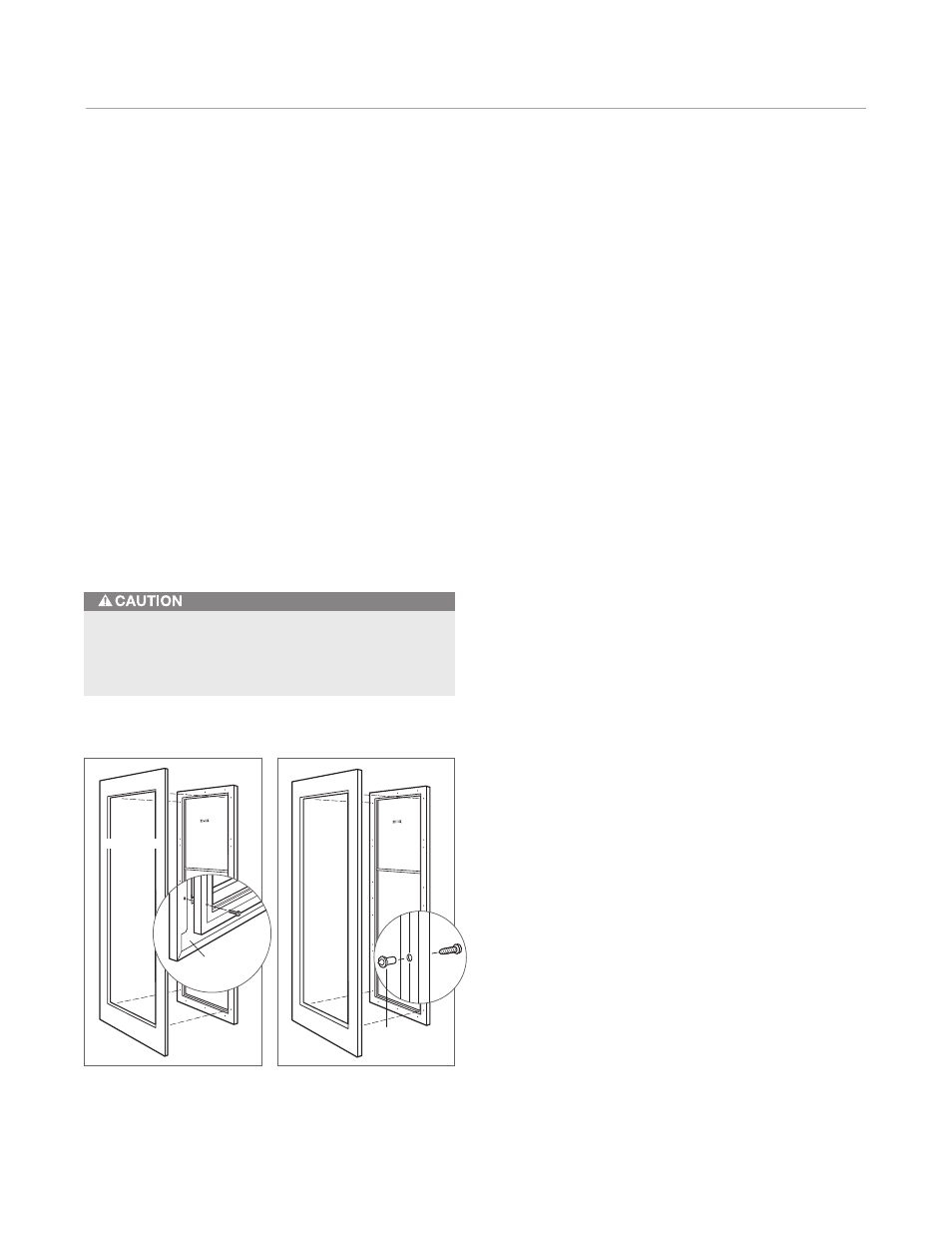

Stainless steel panel.

Overlay panel.

OVERLAY

PANEL

DOOR

FRAME

TENON

CENTER

The cover patches or plugs are part of the insulation

system on the door of the wine storage unit. Be sure to

cover all the holes in the door that were used.
