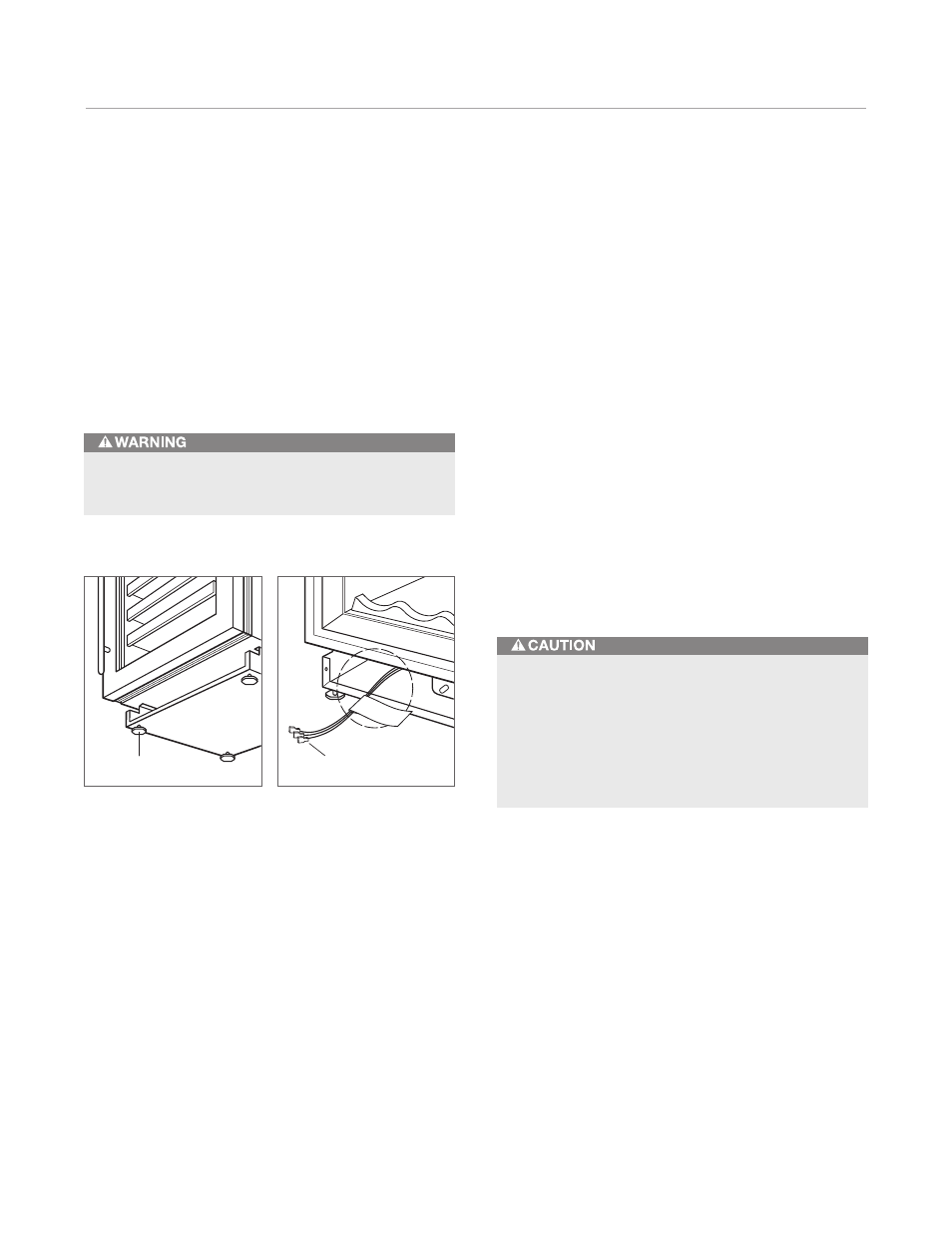

Level the Unit

Using an adjustable wrench or pliers, turn each of the four

leveling legs clockwise to raise the unit and counterclock-

wise to lower the unit. Refer to the illustration below for

location of the leveling legs.

For model 424, the countertop bracket should be used

to make a solid installation. Refer to the illustration on

page 8. If this is not possible, wedge shims along the

sides and top.

Home Alarm Connections

Before the kickplate is installed, all necessary wiring

connections in the compressor compartment should be

completed.

If a home alarm system is to be installed on the wine

storage unit, the connections should be made using the

logic supplied with the alarm specifications. Refer to the

illustration for the appliance lead locations, and refer to

the following for color codes:

Normally open contacts – white with red stripe wire

Normally closed contacts – white with blue stripe wire

Common – gray with white stripe wire

Use the

1

/

4

" (6) spade terminals or wire nuts provided to

make the proper wiring connections.

IMPORTANT NOTE:

If you are not responsible for alarm

system connection, this information should be supplied to

the home security system contractor.

Models 424 and 424FS Installation

11

subzero.com

The alarm circuit in the unit is intended as a low-

voltage, low-current device only. It should not be used

to switch line power.

Any unused terminals should be completely insulated

and all wires should be secured away from conductive

or moving components.

To reduce the possibility of the unit tipping forward, the

front leveling legs must be in contact with the floor.

LEVELING LEGS

Leveling legs.

Home alarm connections.

HOME ALARM

CONNECTIONS
