Machine exterior – Savin 3360DNP User Manual
Page 21
1

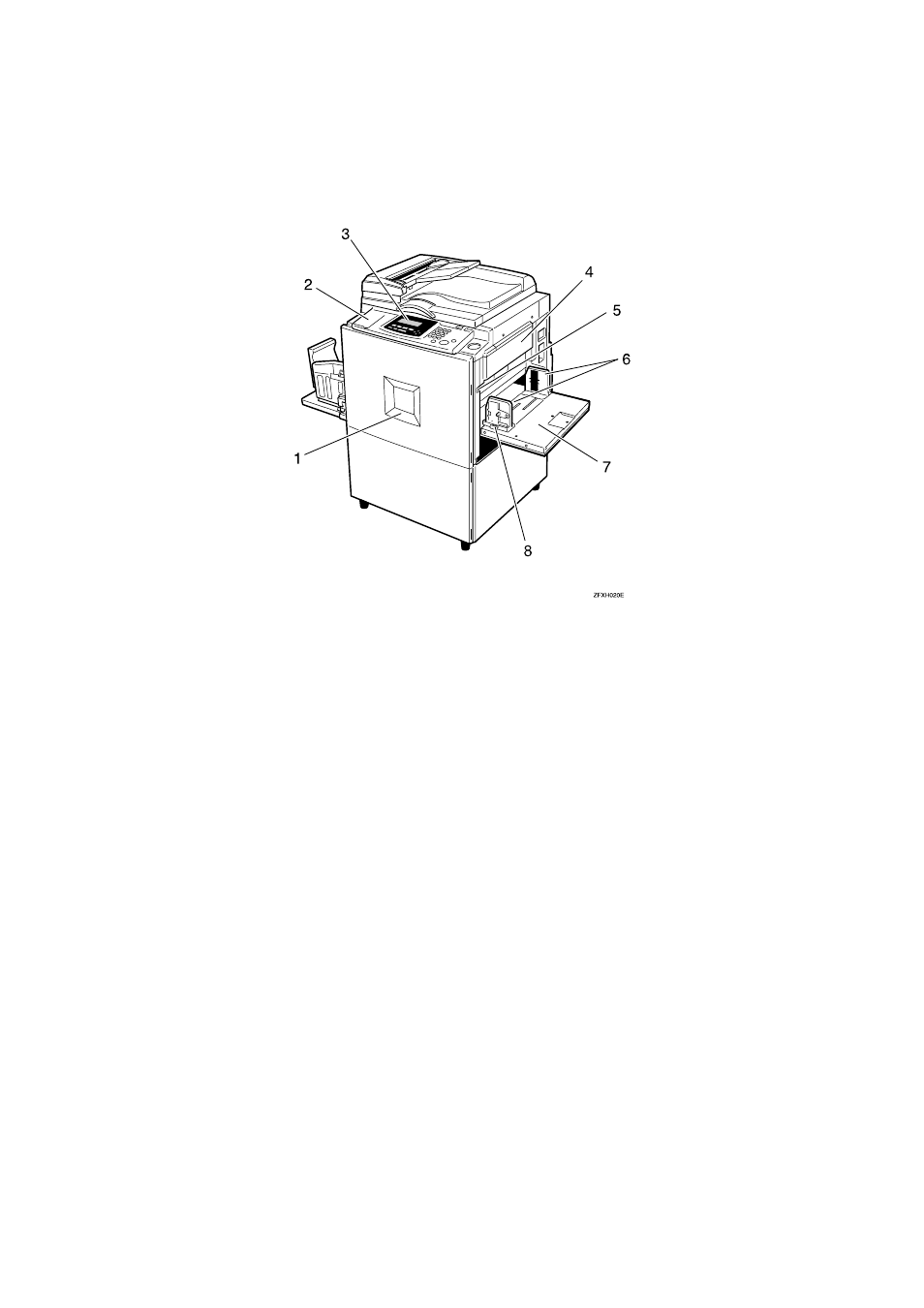

Machine Exterior
1.
Front door
Open to access the inside of the machine.
2.
Flip up cover
Flip up to access the keys underneath.
3.
Operation panel
See p.6 “Operation Panel”.
4.
Master tray
Open this unit when installing the mas-
ter.
5.
Paper feed tray down key
Press to lower the paper feed tray.
6.
Paper feed side plates
Prevent paper skewing.
7.
Paper feed tray
Load paper here.
8.
Paper feed side plates knob
Use to move the side plates.
