Troubleshooting
174
5
BBBB

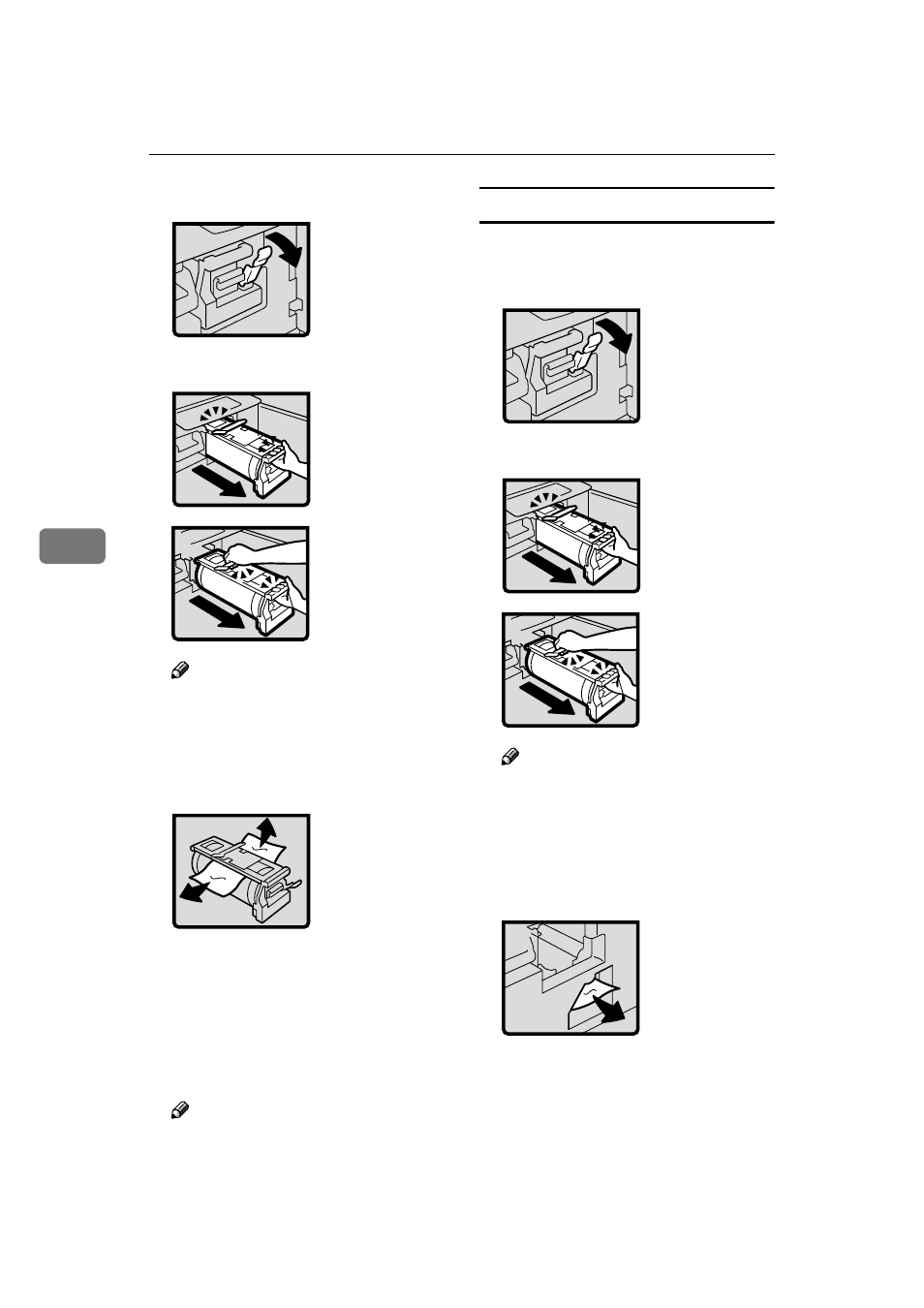

Lower drum unit lock lever (B1).
CCCC
Take out the drum.
Note
❒ For taking out the drum unit,
see p.130 “Changing the Color
Drum Unit”.
DDDD
Remove the misfed paper from
the drum.
EEEE
If you cannot find misfed paper
around the drum (as in step
DDDD),
check the pressure cylinder. Re-
move any misfed paper.
FFFF
Set the drum unit and close the
front door.
Note
❒ For setting the drum unit, see
p.130 “Changing the Color
Drum Unit”.
When paper is misfed inside the machine
AAAA
Open the front cover.
BBBB
Lower drum unit lock lever (B1).
CCCC
Take out the drum.
Note
❒ For taking out the drum unit,
see p.130 “Changing the Color
Drum Unit”.
DDDD
Remove the misfed paper from
the inside as shown in the illus-
tration.
EEEE
If you cannot remove the misfed
paper, remove paper from the
pressure cylinder.
B 1
B 2
B 2
B 3
B 1
B 2
B 2
B 3
