2-3
Hardware Setup
To insert the iPAQ and SPS 3000 into the cradle:
1. Insert the iPAQ into the SPS 3000 (see Figure 2-1 ).
2. Align the connectors on the bottom of the iPAQ with the cradle’s plastic pin and pin-
out connectors (see
Figure 2-3 ).
3. Slide the iPAQ and SPS 3000 into the cradle as pictured below.
4. The iPAQ and SPS 3000 are connected to the cradle when they are seated firmly
in the cradle and the connectors are fully engaged.

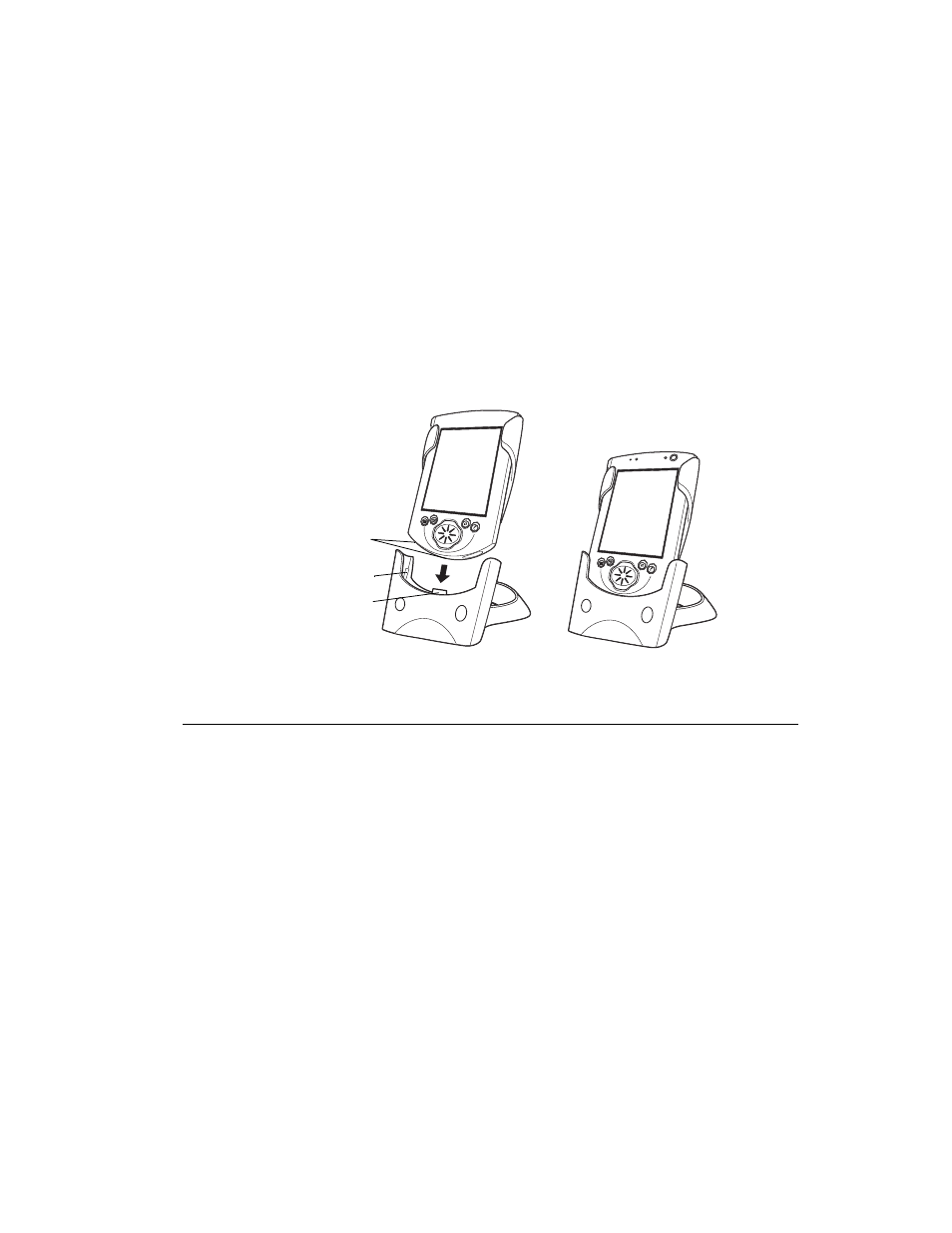

Figure 2-3. Inserting the iPAQ and SPS 3000 into the Cradle
Charging the Battery (WLAN models only)
Both the iPAQ and SPS 3000 include non user-accessible rechargeable Lithium-ion
batteries.The SPS 3000 battery powers the internal radio. Although the SPS 3000 ships
from the factory with a partially charged battery, it is recommended that you fully charge the
battery before using the SPS 3000.
Plastic Pin Connector
Pin-out Connectors
iPAQ Connectors
