B-1
A
PPENDIX
B
C
ABLES
Twisted-Pair Cable and Pin Assignments
For 10/100BASE-TX connections, the twisted-pair cable must have two
pairs of wires. For 1000BASE-T connections the twisted-pair cable must
have four pairs of wires. Each wire pair is identified by two different colors.
For example, one wire might be green and the other, green with white
stripes. Also, an RJ-45 connector must be attached to both ends of the
cable.
Caution: DO NOT plug a normal phone jack connector into any RJ-45
port. Use only twisted-pair cables with RJ-45 connectors that
conform with FCC standards.
Caution: Each wire pair must be attached to the RJ-45 connectors in a
specific orientation. (See “Cabling Guidelines” on page 4-3 for
an explanation.)

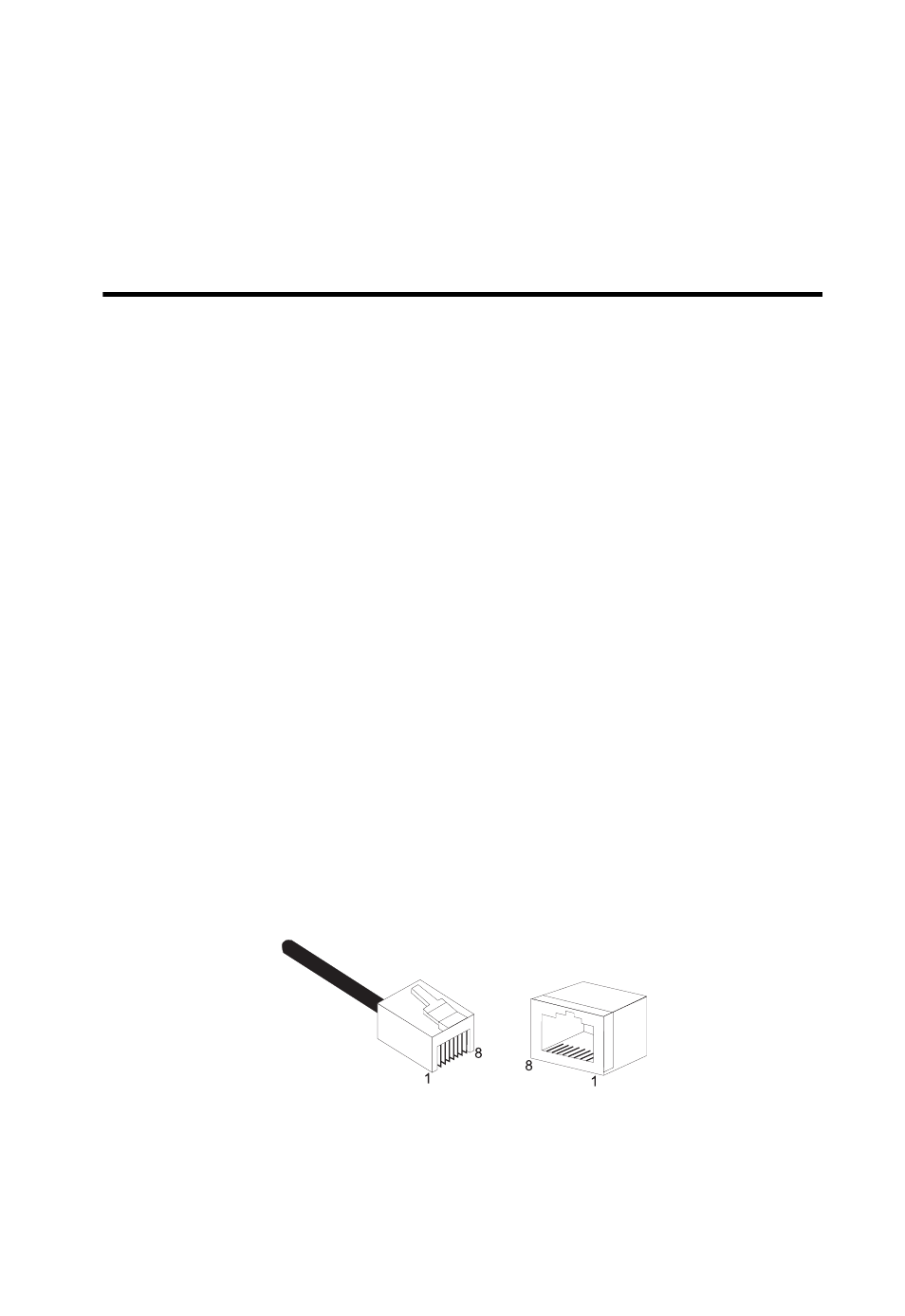

Figure B-1 illustrates how the pins on the RJ-45 connector are numbered.
Be sure to hold the connectors in the same orientation when attaching the
wires to the pins.
Figure B-1 RJ-45 Connector Pin Numbers
