I
NSTALLING THE
S
WITCH
3-2
• As with any equipment, using a filter or surge suppressor is
recommended.
Ethernet Cabling
To ensure proper operation when installing the switch into a network,
make sure that the current cables are suitable for 10BASE-T or
100BASE-TX operation. Check the following criteria against the current
installation of your network:
• Cable type: Unshielded twisted pair (UTP) or shielded twisted pair
(STP) cables with RJ-45 connectors; Category 3 or better for
10BASE-T and Category 5 or better for 100BASE-TX and
1000BASE-T connections.
• Protection from radio frequency interference emissions
• Electrical surge suppression
• Separation of electrical wires (switch related or other) and
electromagnetic fields from data based network wiring
• Safe connections with no damaged cables, connectors or shields

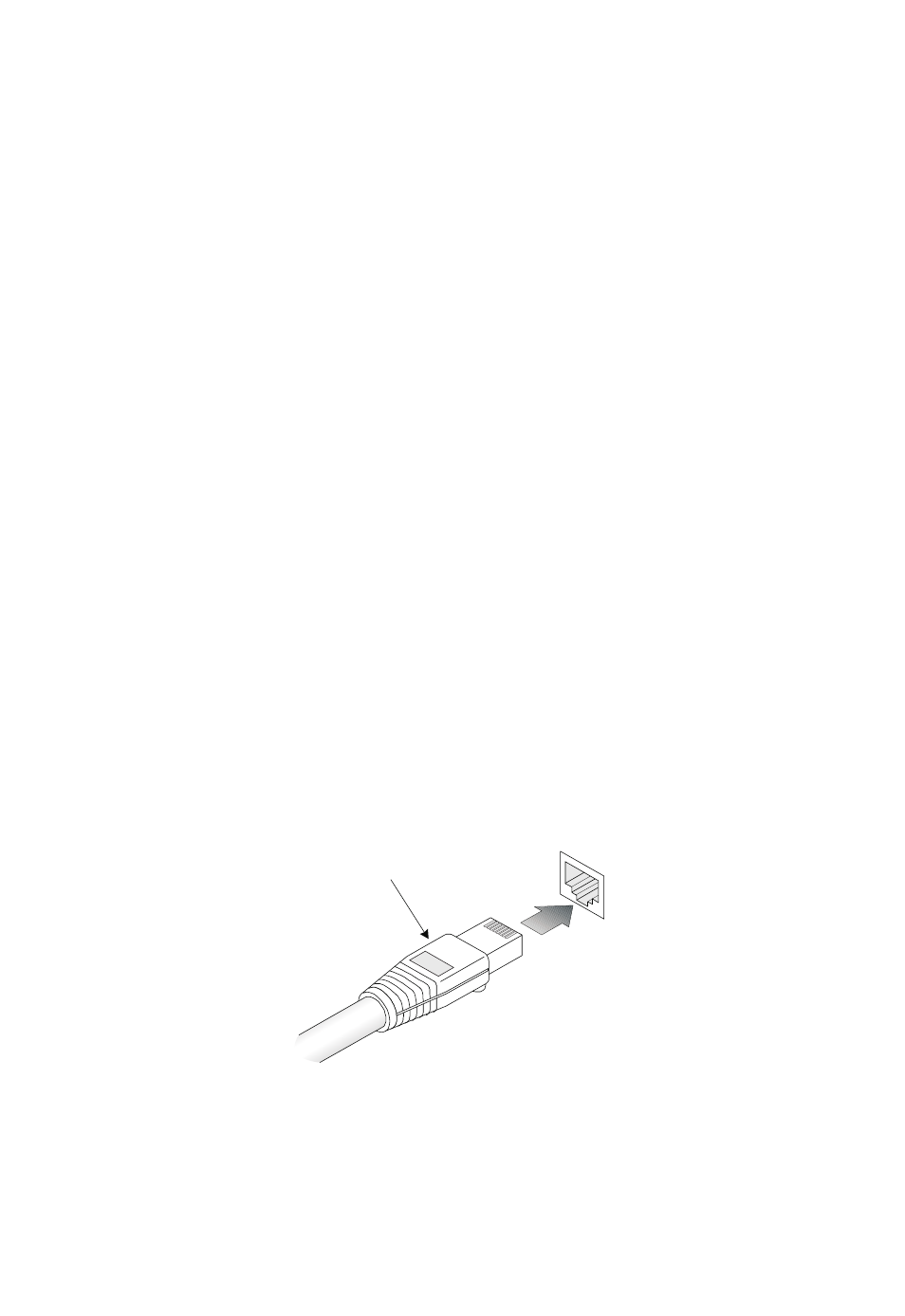

Figure 3-1 RJ-45 Connections
RJ-45 Connector
