Application Examples
The switch is not only designed to segment your network, but also to
provide a wide range of options in setting up network connections. Some
typical applications are described below.
Supplying PoE
The switch is an excellent choice for supplying power to connected PoE
devices such as web cameras, IP telephones or access points. You can
easily connect a PoE device to the network and build on this basic
configuration, to allow power to be delivered over the connection to the
PoE device. Each of the 24 ports on the switch can provide power to a
connected device.

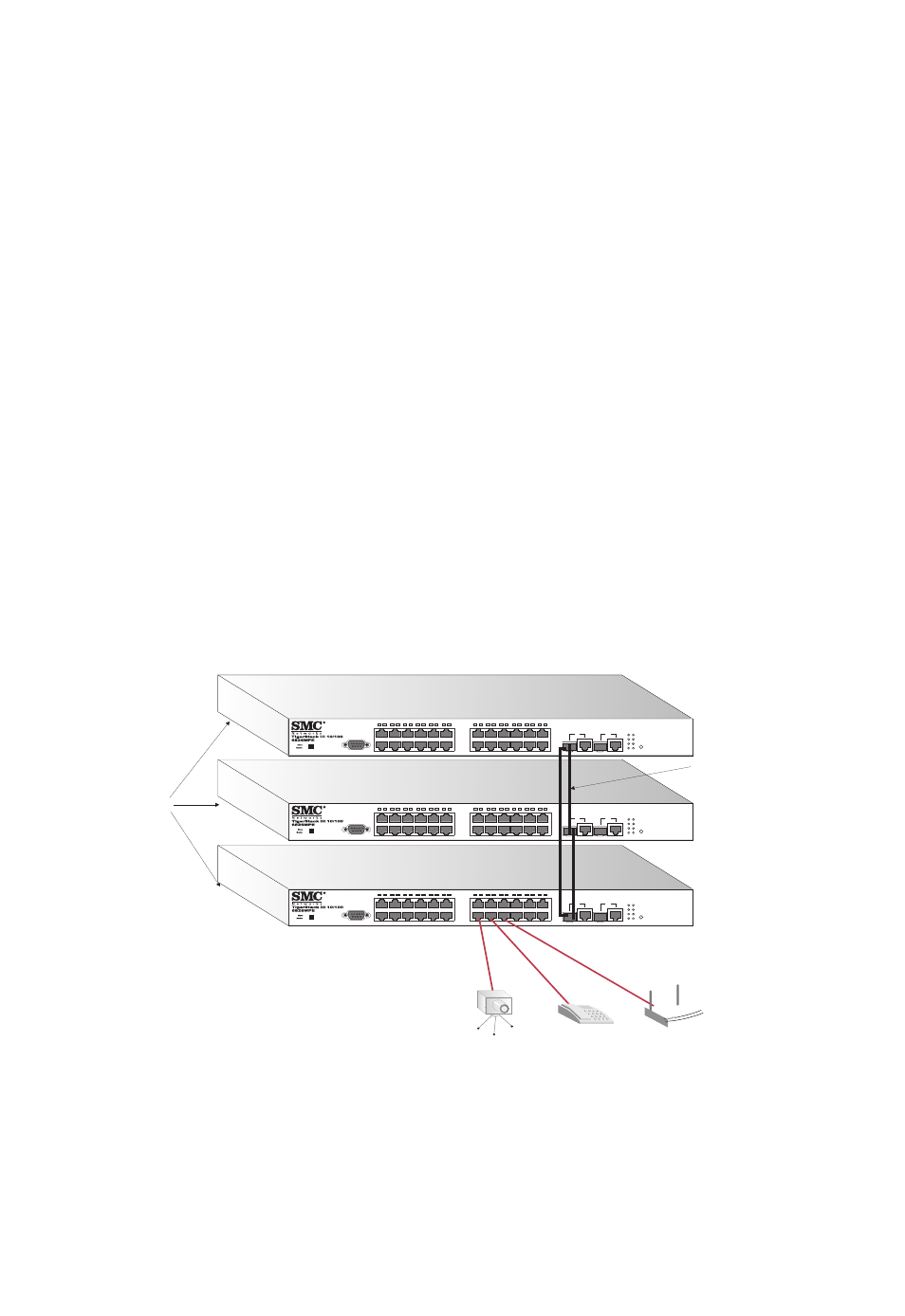

In the figure below, the switch is supplying power to 3 PoE devices. It is
also providing dedicated 100 Mbps full-duplex connections to the devices.
In addition, other non-PoE devices can be connected to the switch.
