D

ESCRIPTION

OF

H

ARDWARE

1-9

Mode PoE/Link Button

The Mode PoE/Link button is located on the front panel.

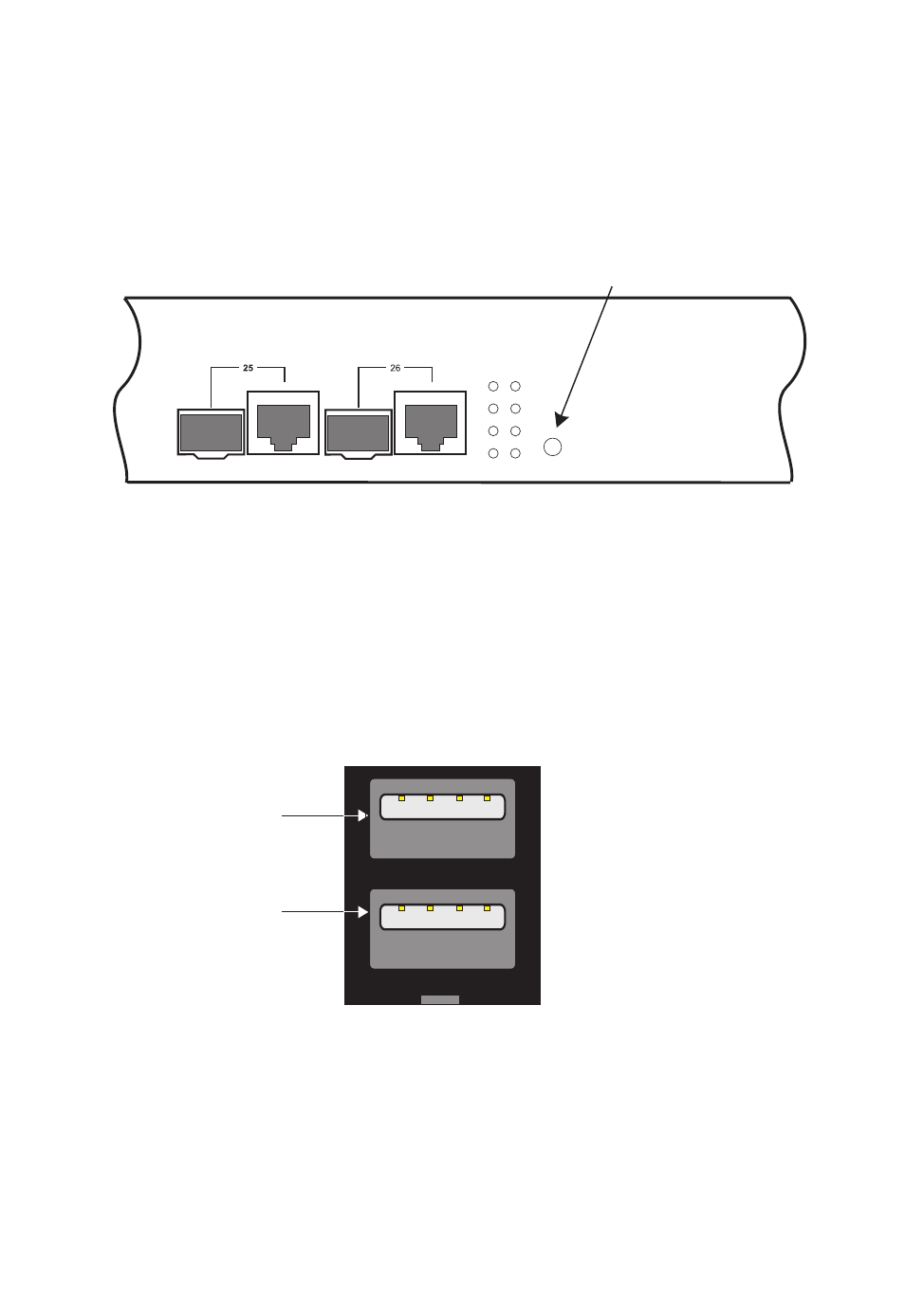

Figure 1-5 Mode Selection

The Mode PoE/Link button is used to toggle between the two port status
LED display modes (see “Port Status LED Indicators” on page 1-5).
Pressing this button changes from one display mode to the other. The
default display mode is Link/Act mode.

Optional Stacking Transceiver

Figure 1-6 Optional Stacking Transceiver

The stacking transceiver provides two 1 Gbps ports via USB Type-A
connectors. The upper port is a transmit port and the lower one is a
receive port. The transceiver allows up to eight switches to be linked

Mode Select Button

Link/Act

PoE

25

26

PWR

Diag

Stacking

Mode

PoE/Link

RPU

RX

TX
