3-9

Stacking Switches

The switch supports stacking up to eight units through an optional SFP
stacking transceiver. Each stacking connection provides a 2 Gbps
high-speed link using USB stacking cables. The stacking transceiver must
be installed in the port 25 SFP slot. Each stacking transceiver has two
connectors, Tx and Rx, for attaching stacking cables. Figure 3-7 shows
how stacking cables are connected between switches in a stack.

Note: The stacking transceiver must only be installed in the port 25 SFP

slot.

Installing a Stacking Transceiver

The stacking transceiver must be installed in the port 25 slot. It should be
inserted before any of the systems in the stack are powered on.

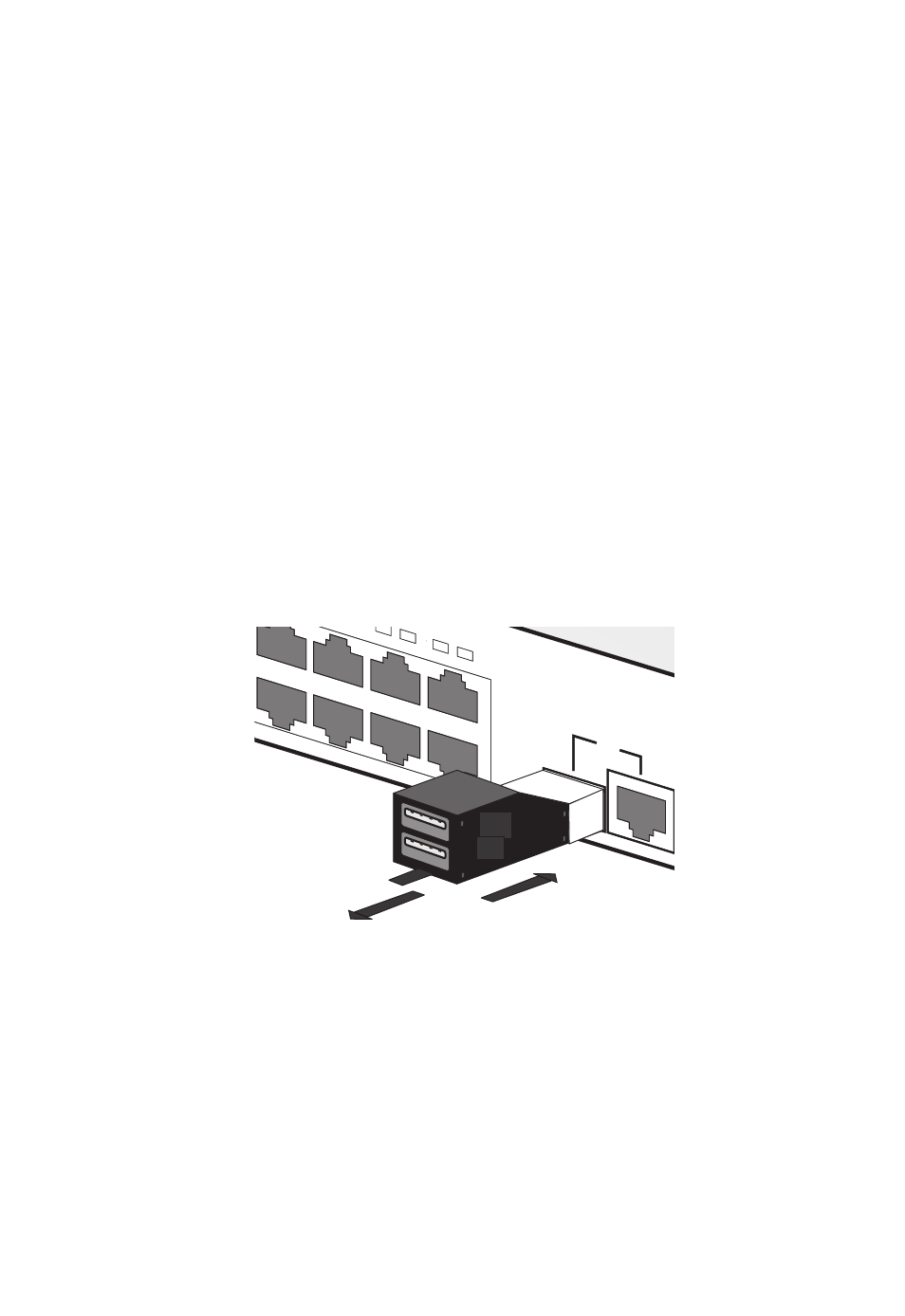

Figure 3-6 Installing a Stacking Transceiver

Slide the SFP transceiver into the SFP transceiver slot until it clicks into
place. To remove, pull on the tab at the bottom of the front of the
transceiver.

Remove Transceiver
by Pulling Tab

Slide Transceiver into
SFP Transceiver Slot
