Connecting to the console port, Wiring map for serial cable, Table 3-1 serial cable wiring -13 – SMC Networks SMC TigerStack III SMC6826MPE User Manual

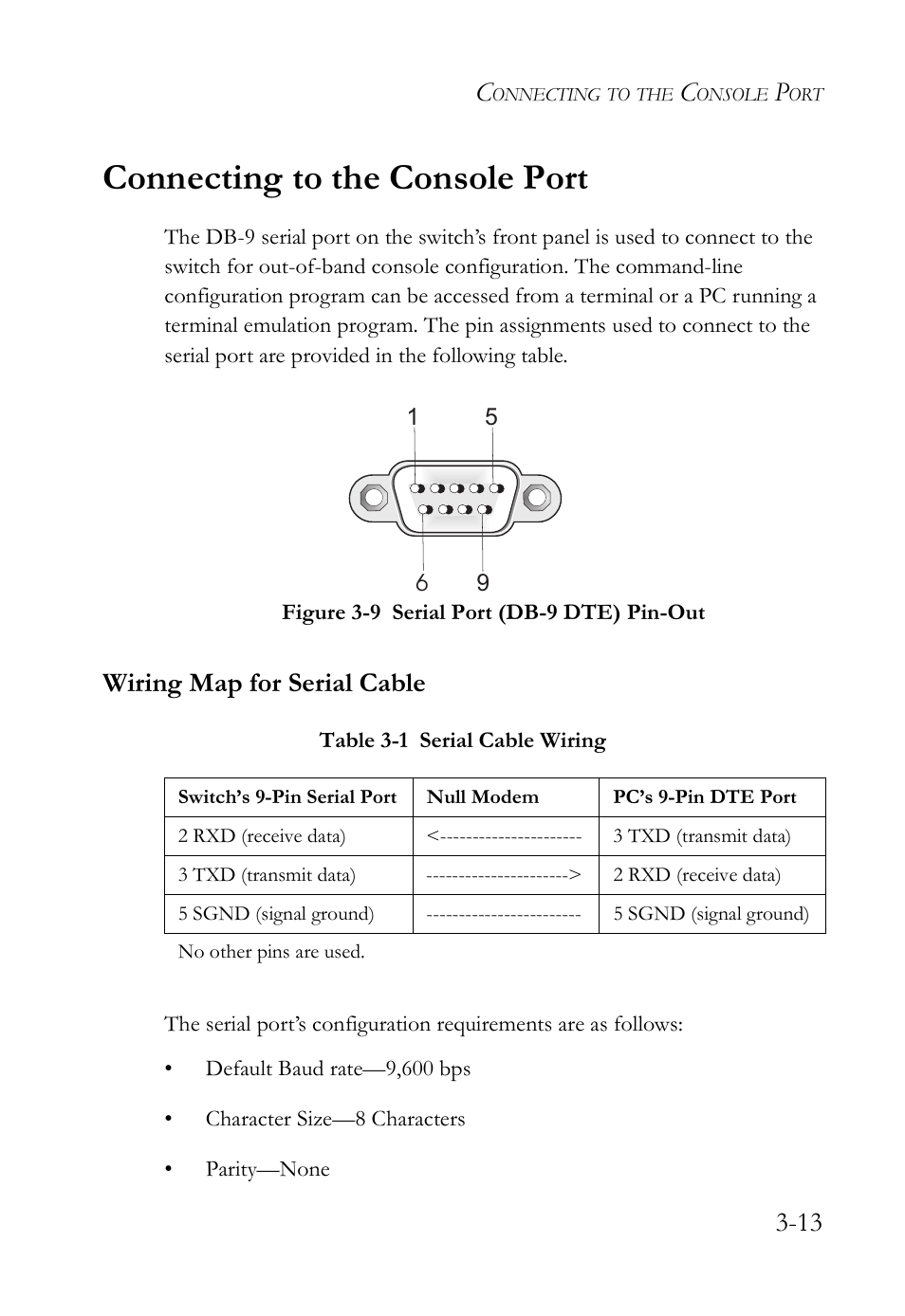

Page 53: Figure 3-9, Serial port (db-9 dte) pin-out -13

Connecting to the console port, Wiring map for serial cable, Table 3-1 serial cable wiring -13 | Figure 3-9, Serial port (db-9 dte) pin-out -13 | SMC Networks SMC TigerStack III SMC6826MPE User Manual | Page 53 / 94 Connecting to the console port, Wiring map for serial cable, Table 3-1 serial cable wiring -13 | Figure 3-9, Serial port (db-9 dte) pin-out -13 | SMC Networks SMC TigerStack III SMC6826MPE User Manual | Page 53 / 94
