Woodstock SHOP FOX W1678 - Manual (Page 38)

DRUM
MOTOR
CONV.
MOTOR
220V
POWER
SUPPLY
CONTROL PANEL
WIRING PANEL
CONTROL BOX
(GROUND)
BLACK
WHITE
RED
BLACK
GREEN
GREEN
GREEN
CONV. MOTOR SWITCH
CONV. MOTOR SPEED CIRCUIT BOARD
WIRING
BLOCK
DRUM MOTOR SWITCH
10 A 10 A
RED
BLACK
FUSE
AMMETER
FEED MOTOR ON
FEED MOTOR OFF
EMR STOP
DRUM MOTOR ON
DRUM MOTOR OFF
FEED MOTOR SPEED
N/O
N/C N/C
N/O
.
(Backside View)
(Frontside View)
-36-
W1678 26" Double Drum Sander

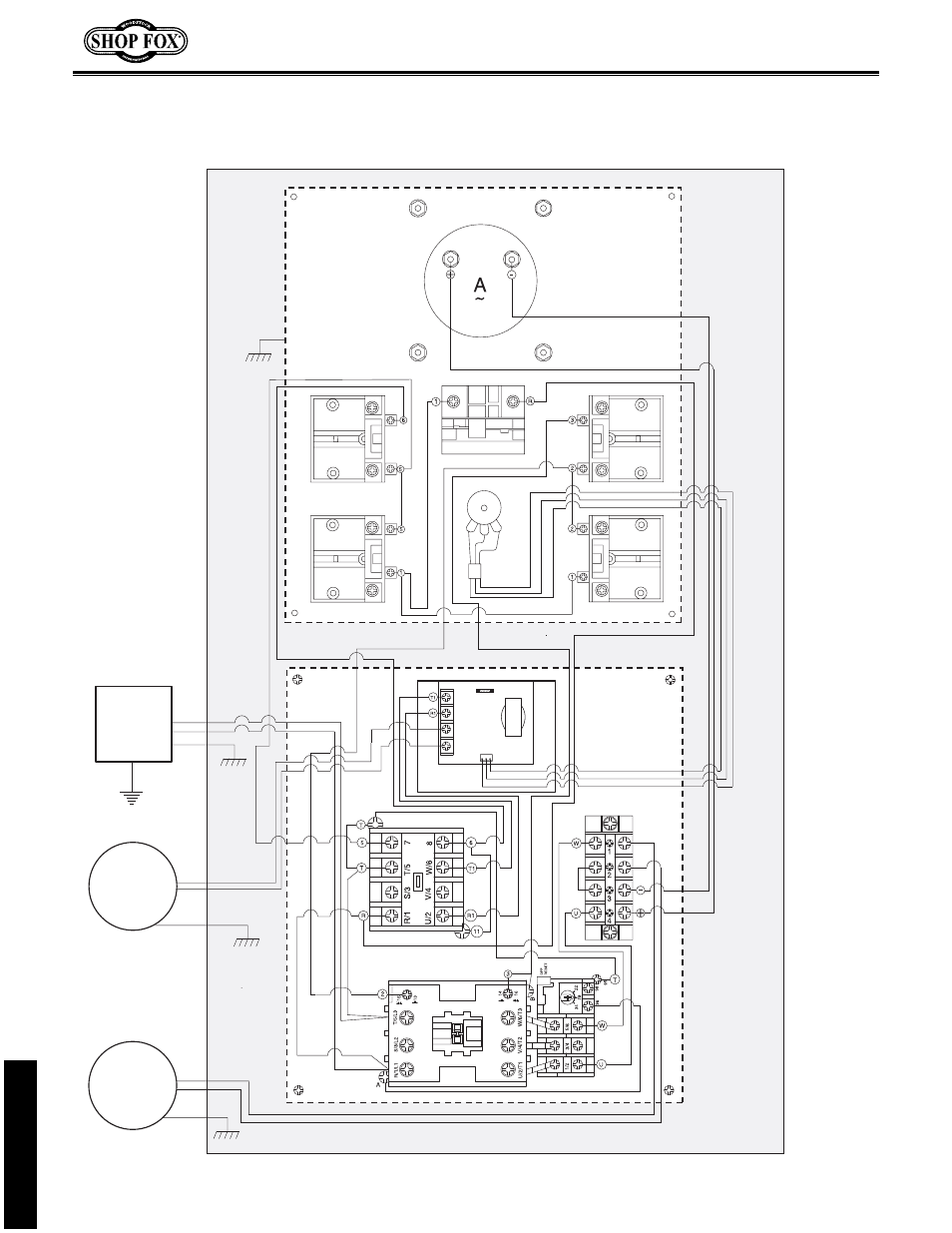

Control System Wiring Diagram
MAINTENANCE
