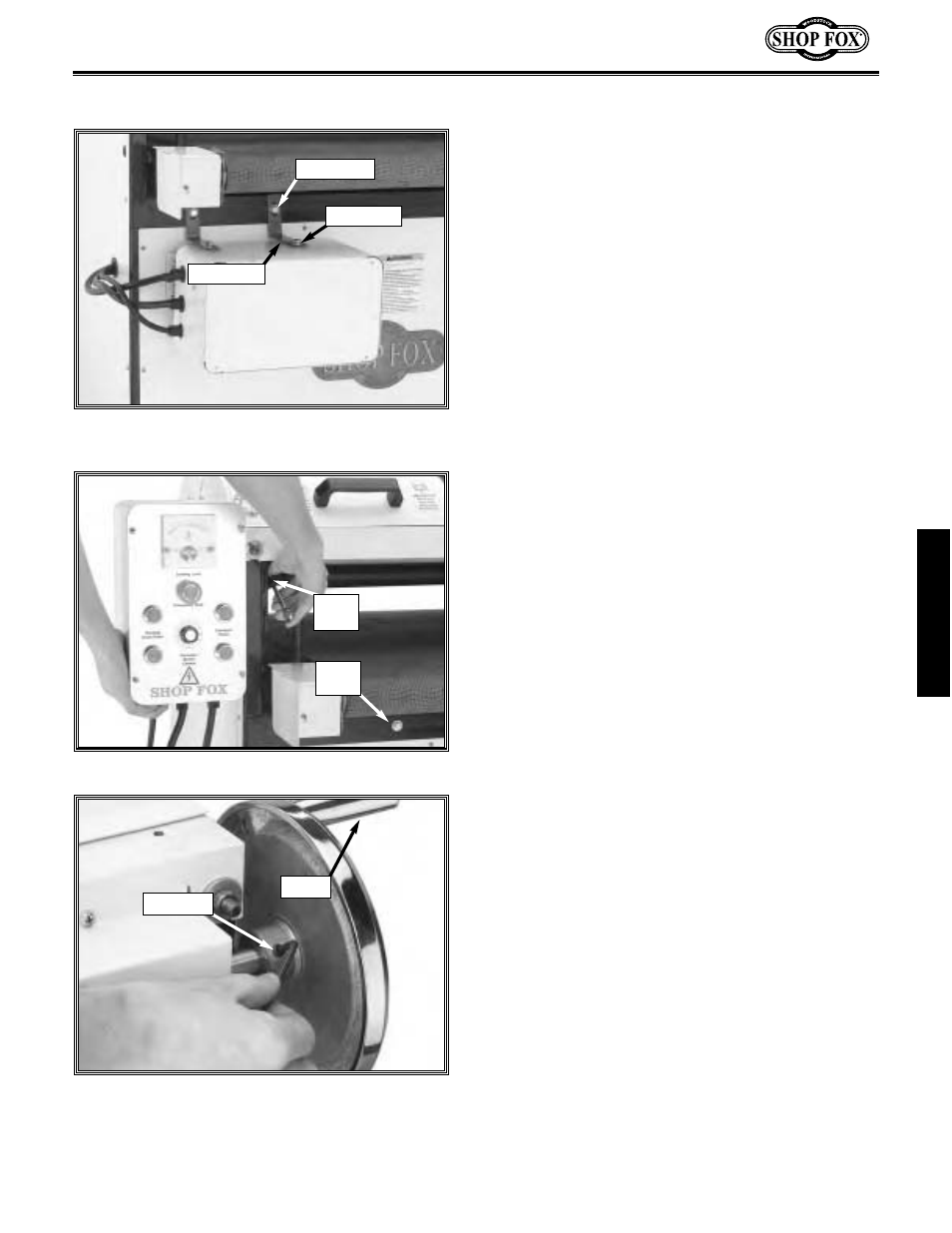

Figure 13. The control box, L-brackets, and
bolts for shipping.
-13-
Figure 14. Short and long bolt locations.
Figure 15. The crank and handle installed.
The control panel allows you to control the
sander electrically. For shipping, the control box
comes bolted to the sander with L-brackets and
long and short bolts. Retain these brackets
should you ever need to ship the sander. See
Figure 13.
To install the control box, do these steps:
1. Remove the L-brackets, bolts, and washers,
and reinstall the two short bolts ( 5 ⁄
16
"-18 x
1 ⁄
2
") and washers into the sander. See Figure
14.
2. Position the control box on the sander, install
the flat washers and the 5 ⁄
16
"-18 x 2" long
bolts.
3. Tighten the bolts. See Figure 14.
Control Box
The crank and handle is used to raise and lower
the conveyor. For each revolution of the crank,
the conveyor moves 0.021".
To install the crank and handle, do these steps:
1. Thread the handle into the crank and use a
1 ⁄
2
" wrench to tighten the handle to the crank.
2. Slide the handwheel onto the shaft and
align the threaded set screw bore on the
crank with the flat on the shaft.
3. Thread the 5 ⁄
16
"-18 x 1 ⁄
2
" set screw into the
crank to secure the handwheel to the shaft.
See Figure 15.
4. Use the 4 mm Allen ® wrench and tighten the
set screw.
Crank and Handle
L-bracket
Short
Bolt
Long
Bolt
Long Bolts
Short Bolts
Handle
Set Screw
ASSEMBLY
