Page 37
CONV. MOTOR SPEED
CIRCUIT BOARD
POWER
JUNCTION BOX
WIRING PANEL
(GROUND)
CONV. MOTOR (60 VDC)
DRUM MOTOR (220 VAC)
WIRING
BLOCK
GREEN
GREEN
10 A
10 A
FUSE
START
CAPACITOR
BLUE
BLUE
RUN
CAPACITOR
RED
RED
CAPACITOR
JUNCTION BOX
POWER
JUNCTION BOX
Keep your machine
unplugged during all
service and wiring
procedures. Otherwise
serious personal injury
may occur!
Seek assistance from a qualified electrician
if you do not understand the wiring diagram
in this manual. Always follow the applicable
electrical codes and standards. Otherwise
serious personal injury or death may
occur!
W1678 26" Double Drum Sander

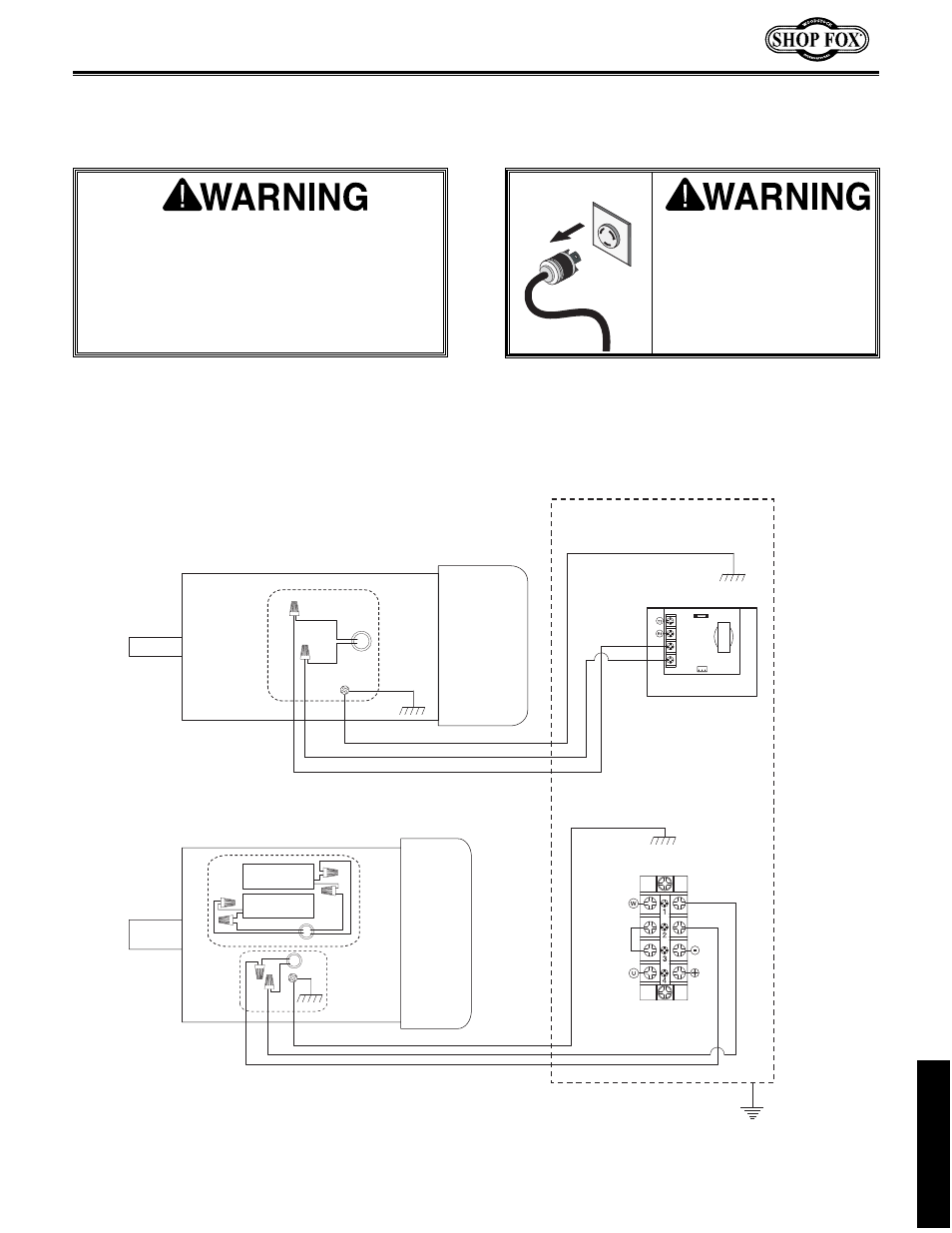

Drive System Wiring Diagram
NOTE: The motor power-supply wires in the POWER
JUNCTION BOX besides the green wire are
interchangeable. Therefore, motor wire colors are
not specified on this diagram.
MAINTENANCE
-35-
