ASSEMBLY
-10-
ASSEMBLY
Unpacking
The Model W1678 26" Double Drum Sander is
carefully packed. However, if it is damaged
or is missing any parts, please contact
Woodstock International Service and
Support at 1-360-734-3482 or send e-mail
to: [email protected].
Get moving assistance
before starting assembly.
The Model W1678 Double
Drum Sander is a heavy
load at 435 pounds.
Lay out and inventory the shipped parts to
familiarize yourself with your Model W1678 26"
Double Drum Sander. See Figures 10 and 11.
This will help with the machine assembly.
1. W1678 26" Double Drum Sander 1
2. Control Box 1
3 Dust Port (Flat Base) 1
4. Dust Port (Concave Base) 1
5. Crank Wheel 1
6. Crank Handle 1
7. Hand Knob 2
8. Handle 2
9. Bolt and Wrench Bag: 1
• Self Tapping Screw (#8 X 1 ⁄
2
") 8
• Flat Washer (#10) 8
• Cap Screw ( 5 ⁄
16
"-18 X 1") 4
• Lock Washer ( 5 ⁄
16
") 4
• Hex Nut ( 5 ⁄
16
"-18) 4
• Set Screw ( 5 ⁄
16
"-18 X 1 ⁄
2
") 1
• Set Screw ( 1 ⁄
4
"-20 X 5 ⁄
16
") 2
• Allen ® Wrench (3 mm) 1
• Allen ® Wrench (4 mm) 1
• Allen ® Wrench (6 mm) 1
Item Qty.
Box Contents

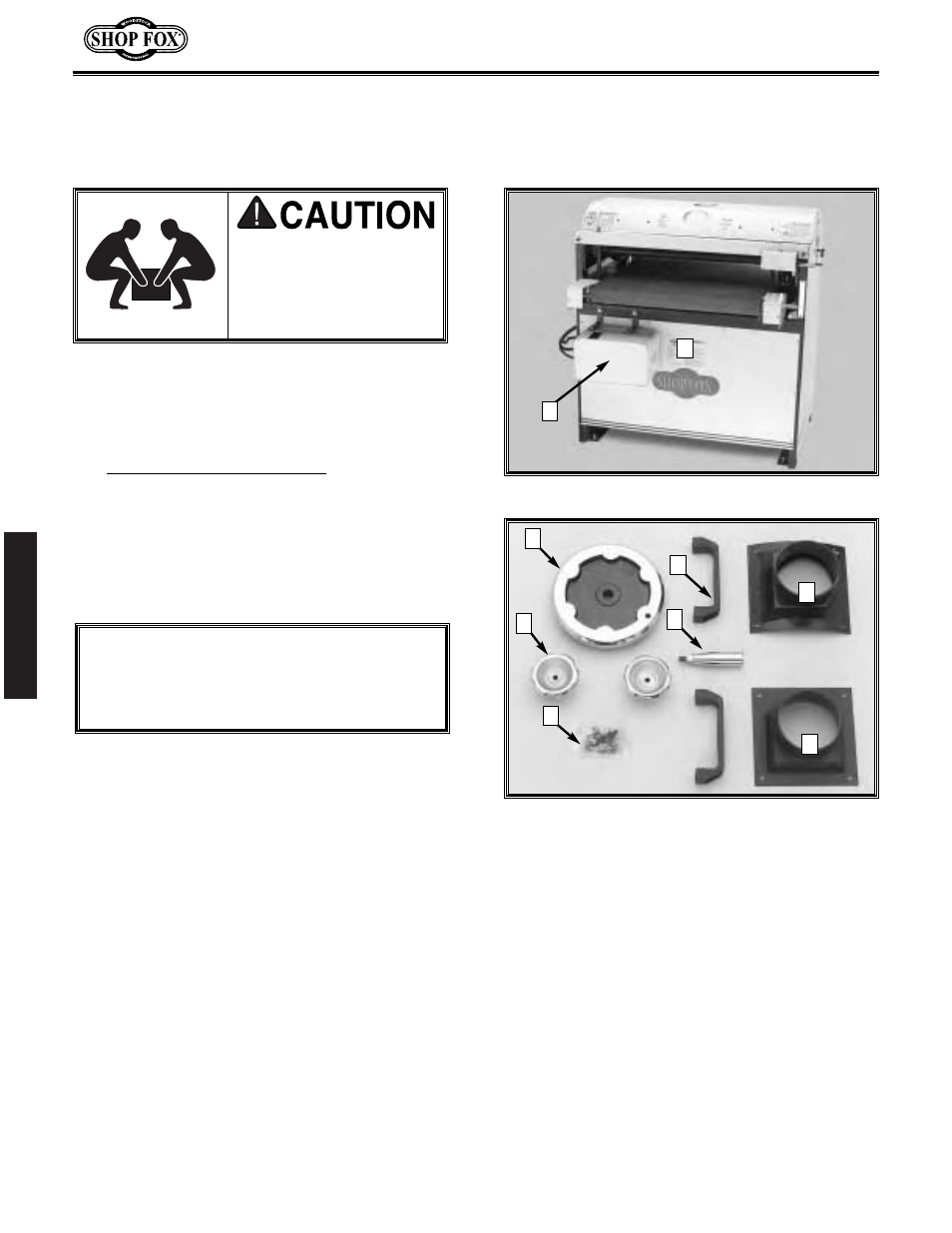

Figure 10. W1678 26" Double Drum Sander
Figure 11. Components
1
5
2
8
7
4
3
6
9
NOTICE
Depending on manufacture date, some of the
box contents may already be installed on your
sander.
