Woodstock SHOP FOX W1678 - Manual (Page 34)

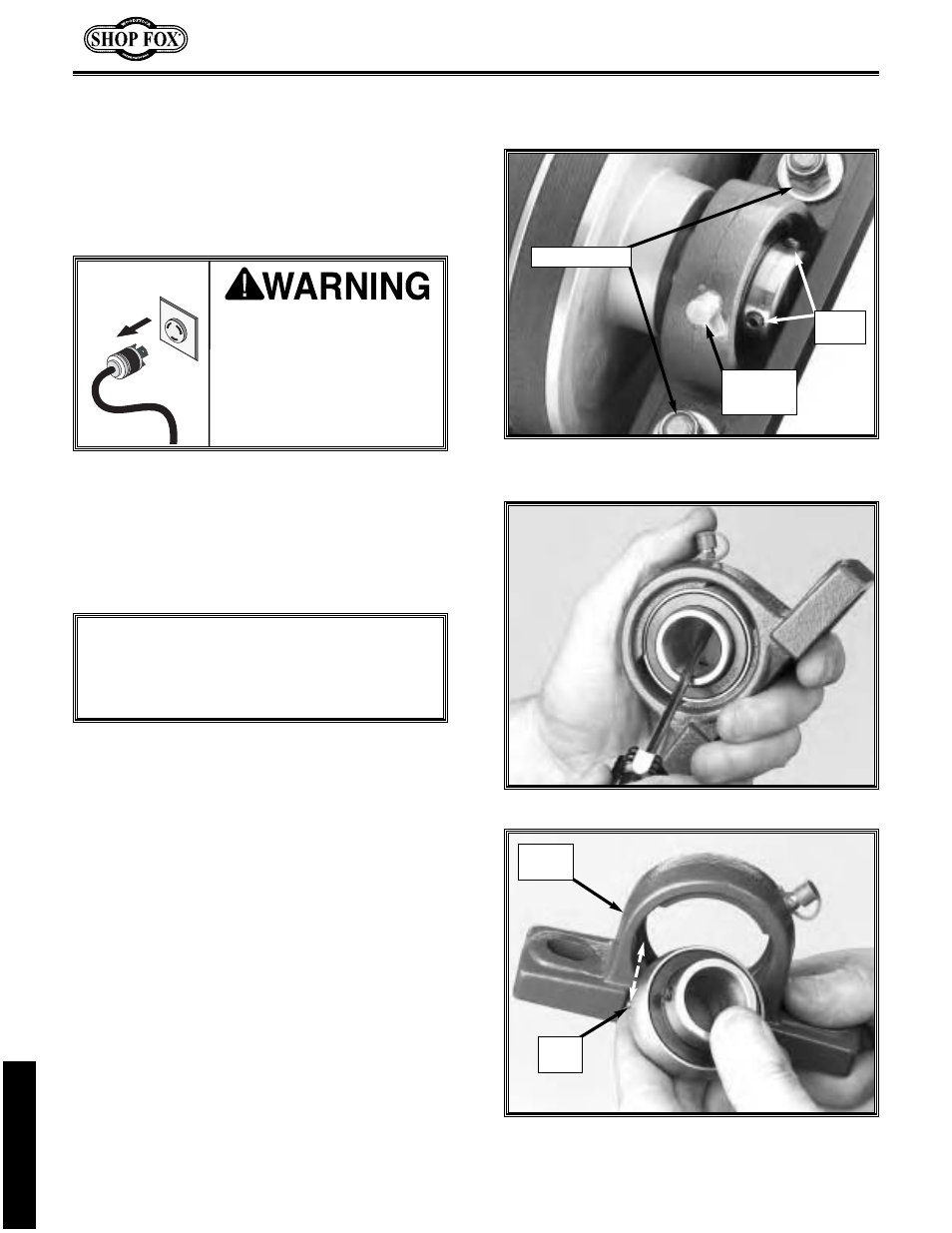

Figure 59. Removal and installation bearing
positioning.
-32-
Figure 58. Bearing positioning for removal.
Figure 57. Mounting nuts, washers, and set
screws.
Bearing Replacement
The Model W1678 26" Double Drum Sander is
designed for many years of reliable service. But after
long periods of heavy sander use, it may be
necessary to replace the drum bearings. Always
replace both bearings on the same drum.
To replace the drum bearings, do these steps:
1. Unplug the double drum sander!
2. Open the dust hood, and remove the
mounting nuts, the washers and the set
screws. See Figure 57.
3. Lift the drum and slide the bearing block
and bearing from the drum shaft.
4. Clean and inspect the drum shaft for cracks,
burrs, wear, and other damage;
replace/repair as required.
5. Use a screwdriver to pry and rotate the
bearing so it is horizontal to the bearing-
block mounting flanges. See Figure 58.
6. Slide the bearing out of the bearing block.
See Figure 59.
Keep your drum sander
unplugged during all
assembly, maintenance,
and adjustment tasks.
Ignoring this warning can
cause serious personal
injury to you or others!
Mounting Nuts
Bearing
Block
Guide
Pin
Set
Screws
Zerk
Fitting and
Dust Cap
MAINTENANCE
NOTICE
DO NOT hammer on the bearing or housing as
you WILL damage these precision parts.
