Conserver XL Series Technical Manual 7610-002-10-23
Issued: 11-28-2007 Revised: N/A
SECTION 5: PARTS SECTION

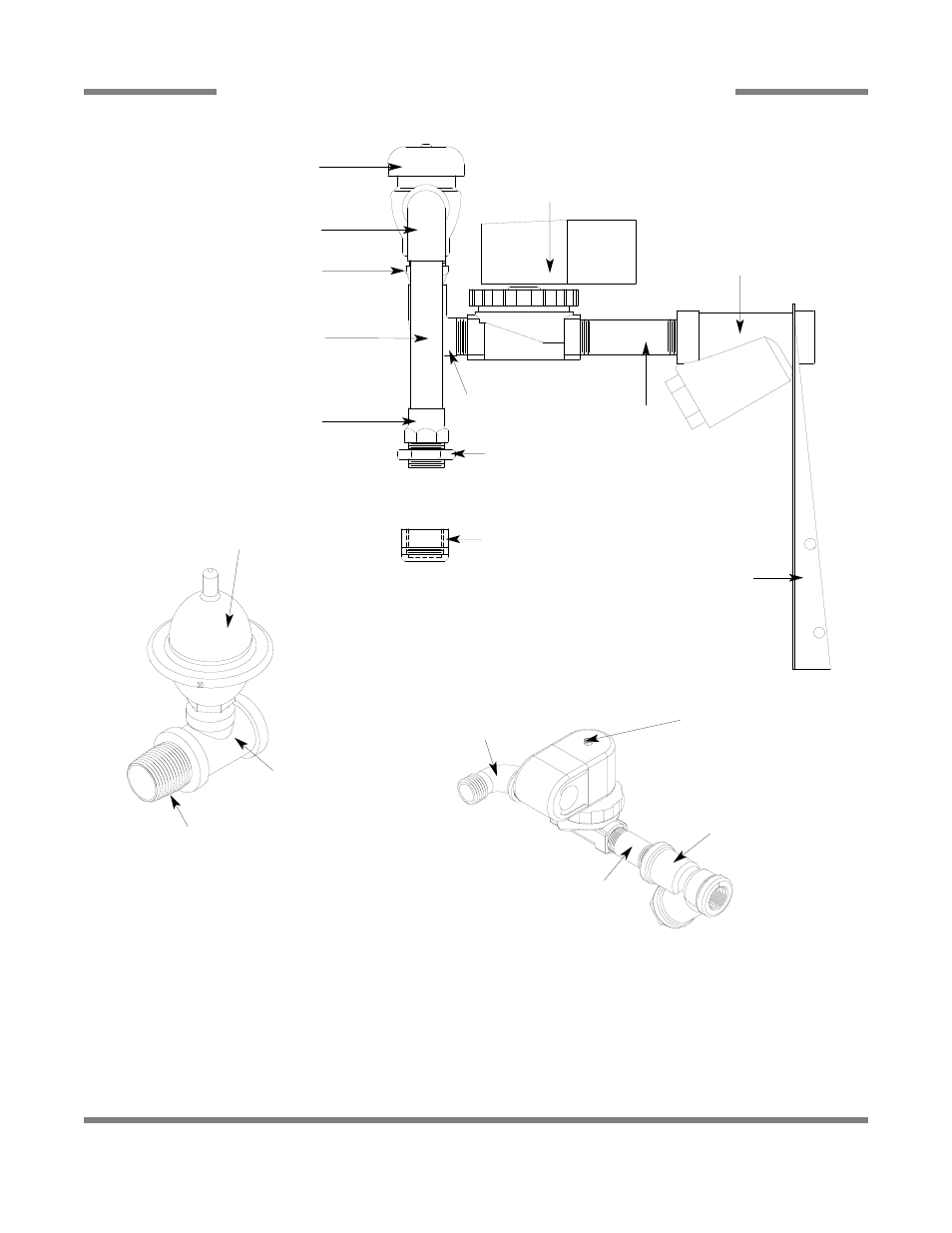

INCOMING PLUMBING ASSEMBLIES
54
ITEM QTY DESCRIPTION Mfg. No.
1 1 3/4" NPT, Solenoid Valve, 120 Volt 04810-100-53-00
1 1 3/4" NPT, Solenoid Valve, 240 Volt (Conserver XL Export Only) 04810-100-03-18
2 1 3/4" x 4" Copper Tube, Conserver XL (Prior to S/N 04D10286) 05700-001-07-38
2 1 3/4" x 6" Copper Tube, Conserver XL (Starting with S/N 04D10286) 05700-011-37-55
2 1 3/4" x 6" Copper Tube, Conserver XL2 05700-011-37-55
3 1 3/4" NPT, Close Brass Nipple, Conserver XL (Prior to S/N 04D10286) 04730-207-34-00
3 1 3/4" NPT x 3" Nipple, Conserver XL (Starting with S/N 04D10286) 04730-011-38-29
3 1 3/4" NPT x 3" Nipple, Conserver XL2 Series 04730-011-38-29
3/4”-14 NPS Locknut
04730-208-04-00
Slip Adapter,
3/4" Male NPT x Female
04730-401-11-01
2
3/4" NPT x 90
° Elbow
04730-406-42-01
3/4" Vacuum Breaker
04820-002-53-77
3/4" NPT x 90 ° Elbow
04730-406-42-01
Male Slip Adapter x 3/4"
Male NPT
04730-401-10-01
1
3
3/4" NPT "Y"- Strainer
04730-717-02-06
Bracket Support,
Incoming Plumbing
05700-021-34-02
Water Arrestor, 1/2”
06685-100-05-00
Water Arrestor 1/2”, Assembly
05700-002-61-29
Tee, 3/4” x 3/4” x 1/2”
04730-211-06-00
Nipple, 3/4” NPT, Close, Brass
04730-207-34-00
Diverter End Cap
05700-021-45-32
Elbow, 90 Deg. 1/2” Street
04730-206-08-00
Conserver AXL Incoming
Plumbing Assembly
1/2" NPT "Y"- Strainer
04730-217-01-10
1/2" NPT x 2" Nipple
2 Per
04730-011-38-29
1/2" NPT, Solenoid Valve, 120 Volt
04810-100-12-18
