SECTION 5: PARTS SECTION

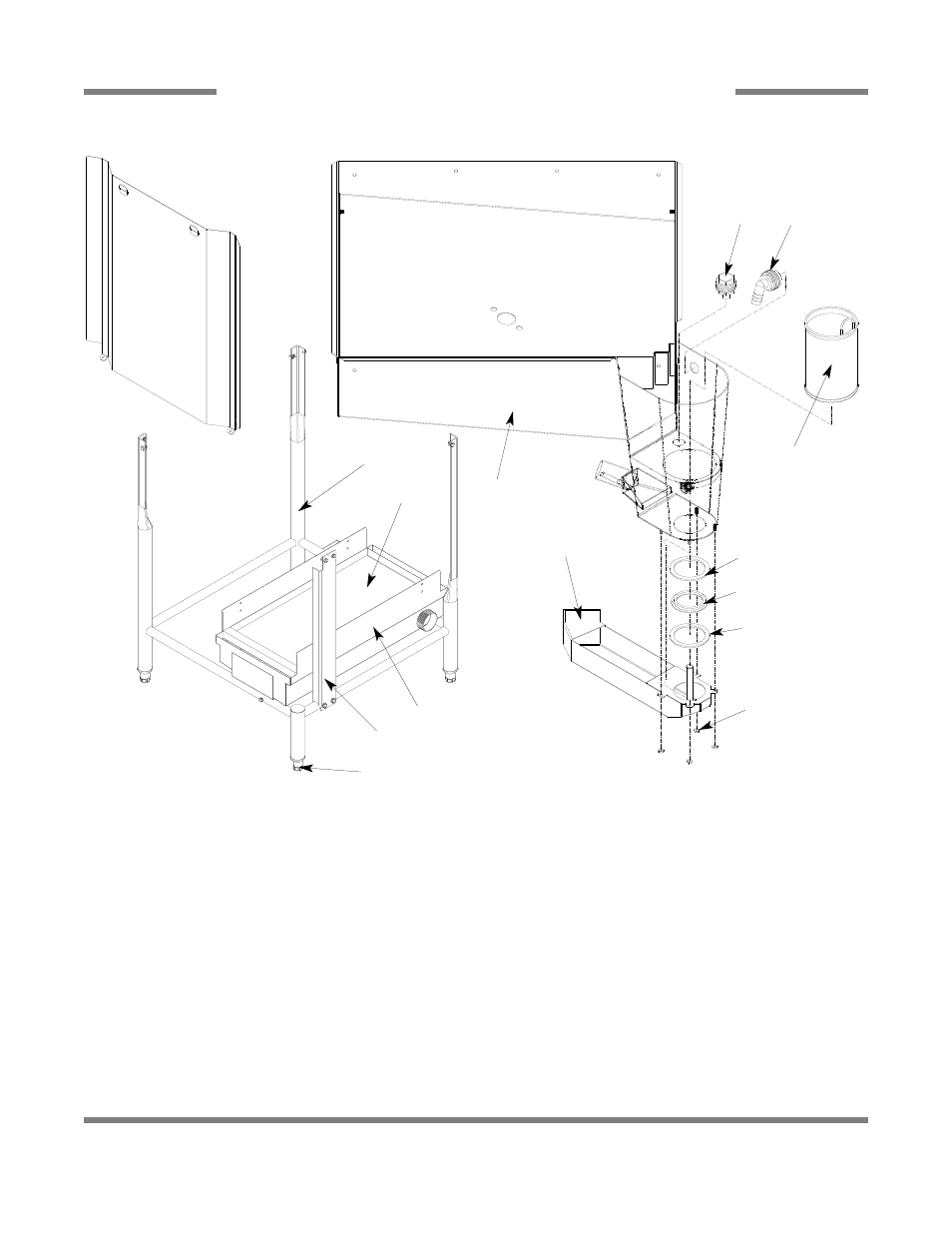

CONSERVER XL WASH TUB & FRAME ASSEMBLY (Starting with S/N 04D10286)
50
ITEM QTY DESCRIPTION Mfg. No.
1 1 Tub Weldment, Conserver XL (Prior to S/N 04D10286) 05700-002-04-38
1 1 Tub Weldment, Conserver XL (Starting with S/N 04D10286) 05700-002-78-30
2 1 Fitting, Chemical Drip 05700-002-05-62
3 1 Spillway Weldment 05700-002-04-41
3 1 Cover, Drain Chute 05700-002-35-53
4 2 Drain Seat Gasket 05700-002-04-42
5 1 Sump Strainer 05700-002-06-25
6 1 Drain Seat Insert 05700-021-34-38
7 1 Bulkhead to 1/2" Hosebarb Fitting 04730-011-45-21
8 4 Locknut, 10-24, with Nylon Insert 05310-373-01-00
9 1 Accumulator Weldment 05700-002-19-05
10 1 Strainer, Accumulator Weldment 05700-031-33-13
11 1 Frame Weldment 05700-002-29-15
12 1 Leg, Tub Support 05700-002-89-32
13 4 Bullet Feet 05340-108-01-03
1
2 7
5
4
6
4
8
3
12
9
10
11
13
False Panel Weldment
05700-002-51-66
