SECTION 5: PARTS SECTION

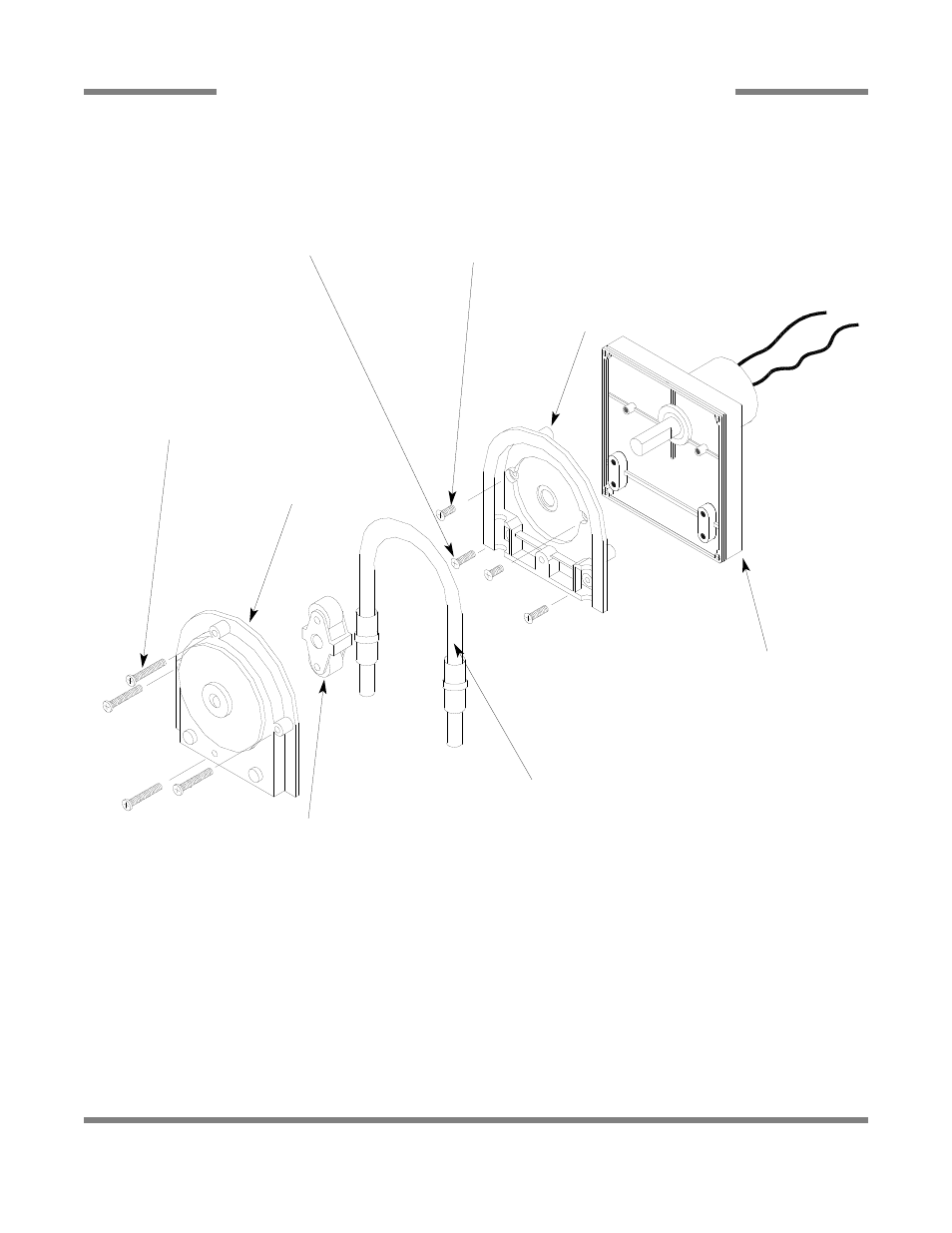

CHEMICAL FEEDER PUMP ASSEMBLY
44
Screw, 6-32 x 3/4” Phillips Pan Head
4 per
05305-011-37-05
Roller, Red (Detergent/Sanitizer)
04320-111-36-70
Roller, White (Rinse Aid)
04320-002-82-28
If using Tygroprene Tubing:
Roller, White
04320-002-82-28
Roller, Black
04320-111-65-27
Front Housing
04320-111-37-08
Rear Housing
04320-111-37-09
Squeeze Tube, Detergent/Sanitizer
(Use with the red roller.)
05700-111-35-29
Clear Squeeze Tube, Rinse Aid
(Use with the white roller.)
05700-011-76-41
Tube, 3/16 x 8” Clear Tygoprene
05700-003-22-89
Screw, 8-32 x 1/2” Phillips Flat Head
2 per
05305-011-37-06
Motor, 14 RPM 115V
Rinse Aid Feeder Pump
04320-111-35-13
Motor, 14 RPM 240V
Rinse Aid Feeder Pump
04320-111-47-46
Motor, 36 RPM 115V
Detergent/Sanitizer Feeder Pump
04320-111-35-14
Motor, 36 RPM 240V
Detergent/Sanitizer Feeder Pump
04320-111-47-47
Screw, 8-32 x 3/8” Phillips Pan Head
2 per
05305-011-37-07
