SECTION 5: PARTS SECTION

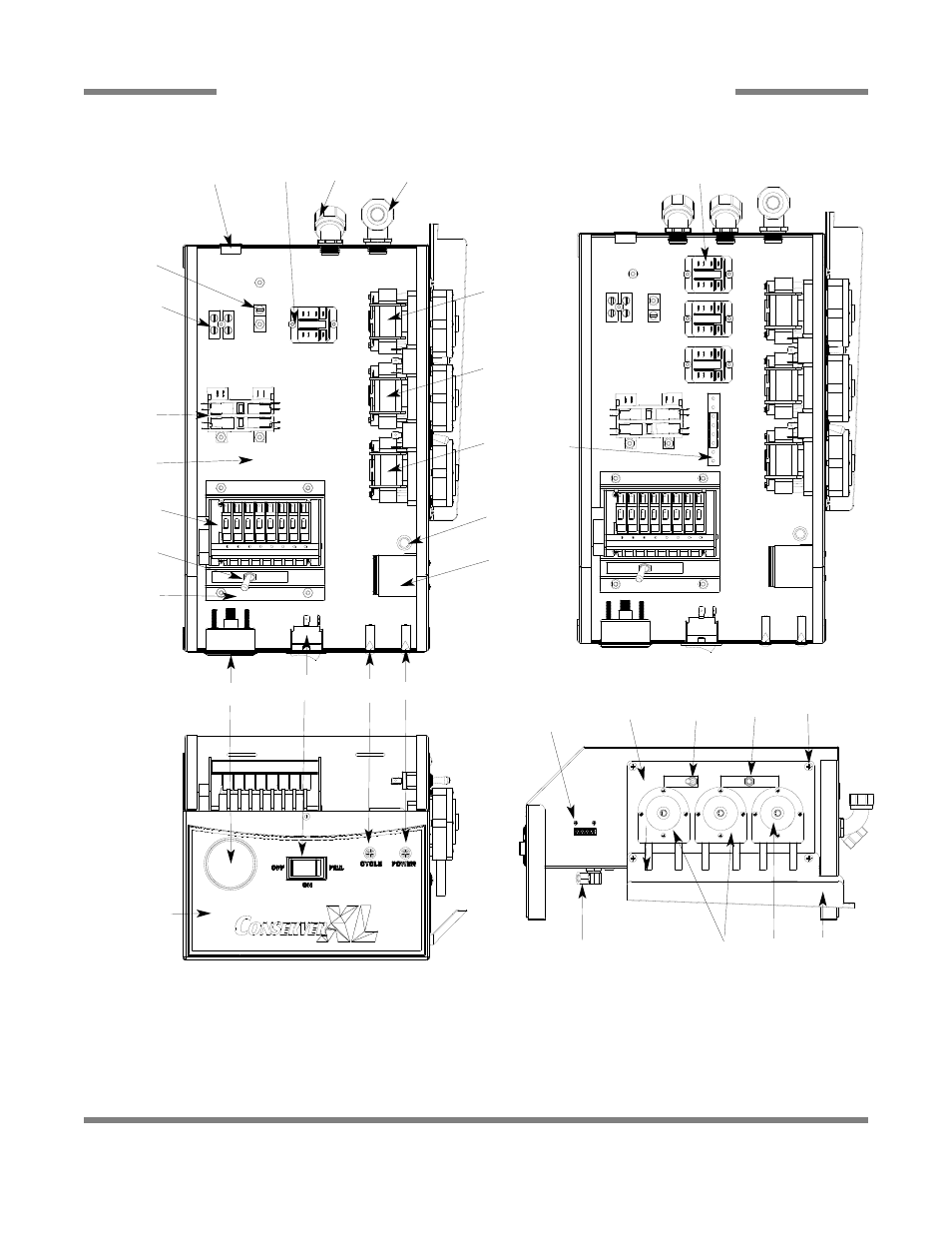

CONTROL BOX ASSEMBLIES - MECHANICAL TIMER
39
20 21 22 23
19
18
24
25
25
7, 29
1
3
14
4
6 5
17
16
15
10
8a
7, 29
8
9
13 12 11
27, 28
2
Conserver XL2 Series Control Box Assembly Conserver XL Control Box Assembly
21
30
26, 31
ITEM QTY DESCRIPTION Mfg. No.
1 1 Control Box Weldment, Conserver XL 05700-002-04-57
1 1 Control Box Weldment, Conserver XL2 Series 05700-002-21-56
Cover, Control Box 05700-002-04-62
Decal, Warning-Disconnect Power 09905-100-75-93
Cotter Pin, 3/32 x 3/4" 05315-207-01-00
2 1 Decal, Control Box Front, Conserver XL 09905-002-04-61
2 1 Decal, Control Box Front, Conserver XL2 Series 09905-002-20-46
