SECTION 5: PARTS SECTION
HOOD ASSEMBLY
45
1
15
14
13
12, 6
10,11, 6
9, 6
7, 4, 6
3, 4, 5
16
6
2
8
4
6

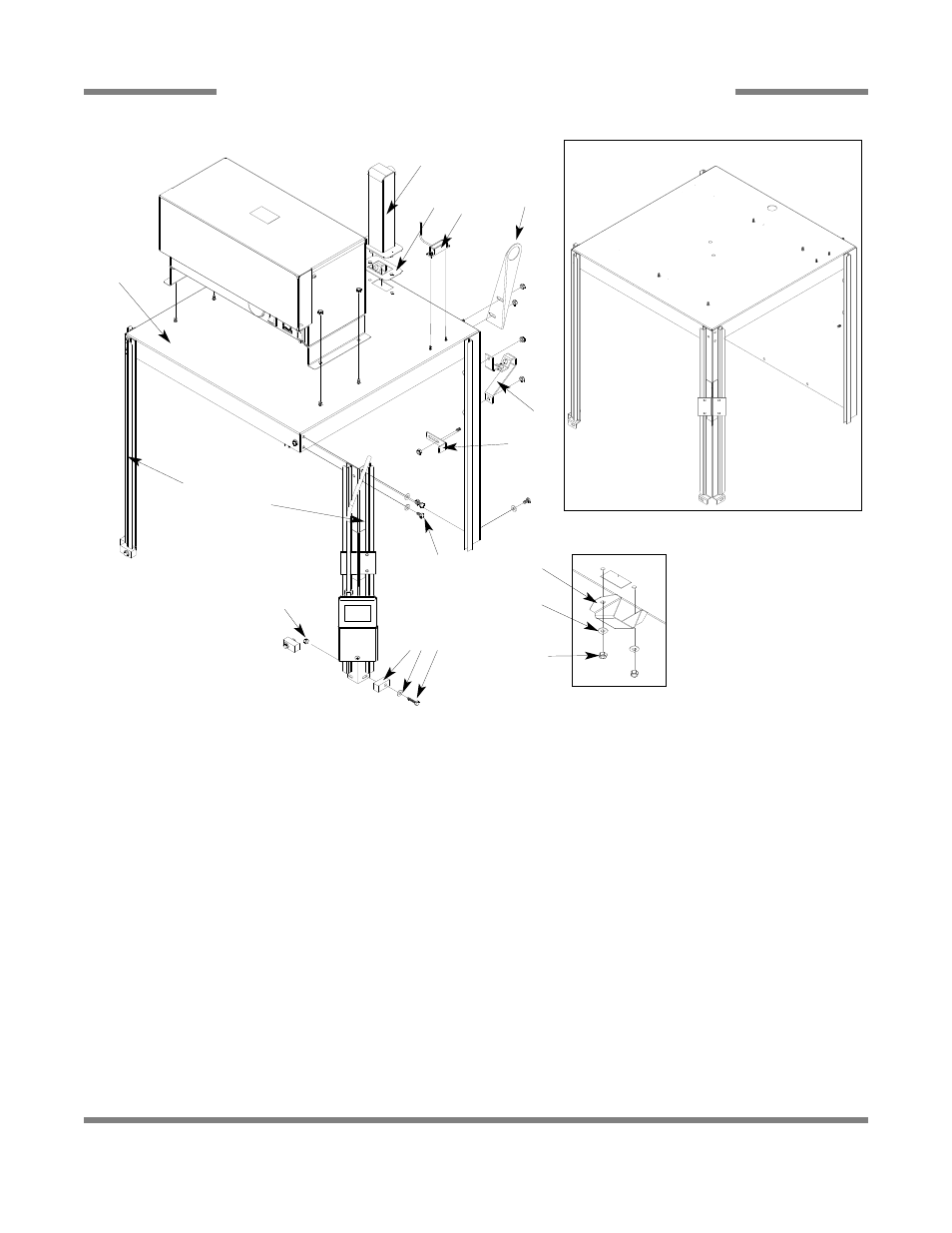

Conserver XL Hood Weldment
ITEM QTY DESCRIPTION Mfg. No.
1 1 Hood Weldment, Conserver AXL 05700-003-22-05
1 1 Hood Weldment, Conserver XL (Starting with S/N 04d10286) 05700-002-91-38
2 1 Hood Support 05700-002-78-99
3 4 Block Spacer 05700-002-81-02
4 16 Washer, 1/4" ID S/S 05311-174-01-00
5 4 Screw, 1/4"-20 x 1 1/8" Long S/S 05305-274-21-00
6 27 Locknut, 1/4”-20 S/S Hex with Nylon Insert 05310-374-01-00
7 10 Screw, 1/4"-20 x 1/2" Long S/S 05305-274-02-00
8 1 Shield, Air Gap 05700-002-13-35
9 1 Bracket, Manifold Positioning Tube 05700-011-34-63
10 2 Bracket, Cantilever Support 09515-003-15-64
11 6 Wear Button 05700-011-88-01
12 1 Bracket, Plumbing Support 05700-021-34-02
13 1 Reed Switch 05930-002-36-80
14 1 Gasket, Air Gap 05330-002-14-48
15 1 Weldment, Air Gap 05700-002-81-70
16 1 Hood Support Weldment 05700-003-22-54
Air Gap Mounting Components
Conserver AXL Hood Weldment
