Conserver XL Series Technical Manual 7610-002-10-23

Issued: 11-28-2007 Revised: N/A

SECTION 5: PARTS SECTION

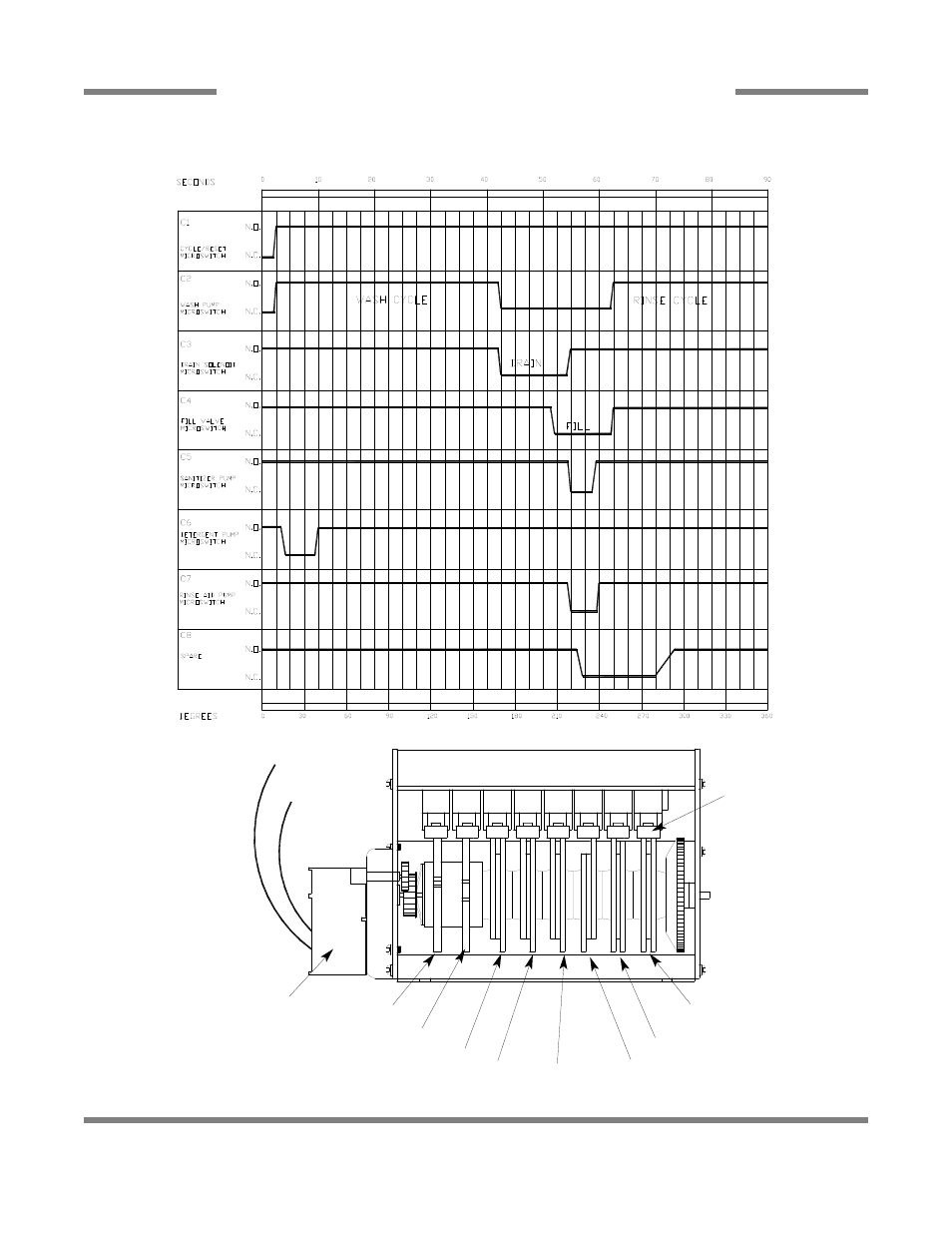

MECHANICAL 8 CAM TIMER

43

CYCLE/

RESET

WASH

DRAIN

FILL

SANITIZER

DETERGENT

RINSE
AID

SPARE
CAM

Microswitch
Qty. 8
05930-01-65-81

Timer Motor

05945-306-14-00
