SECTION 5: PARTS SECTION

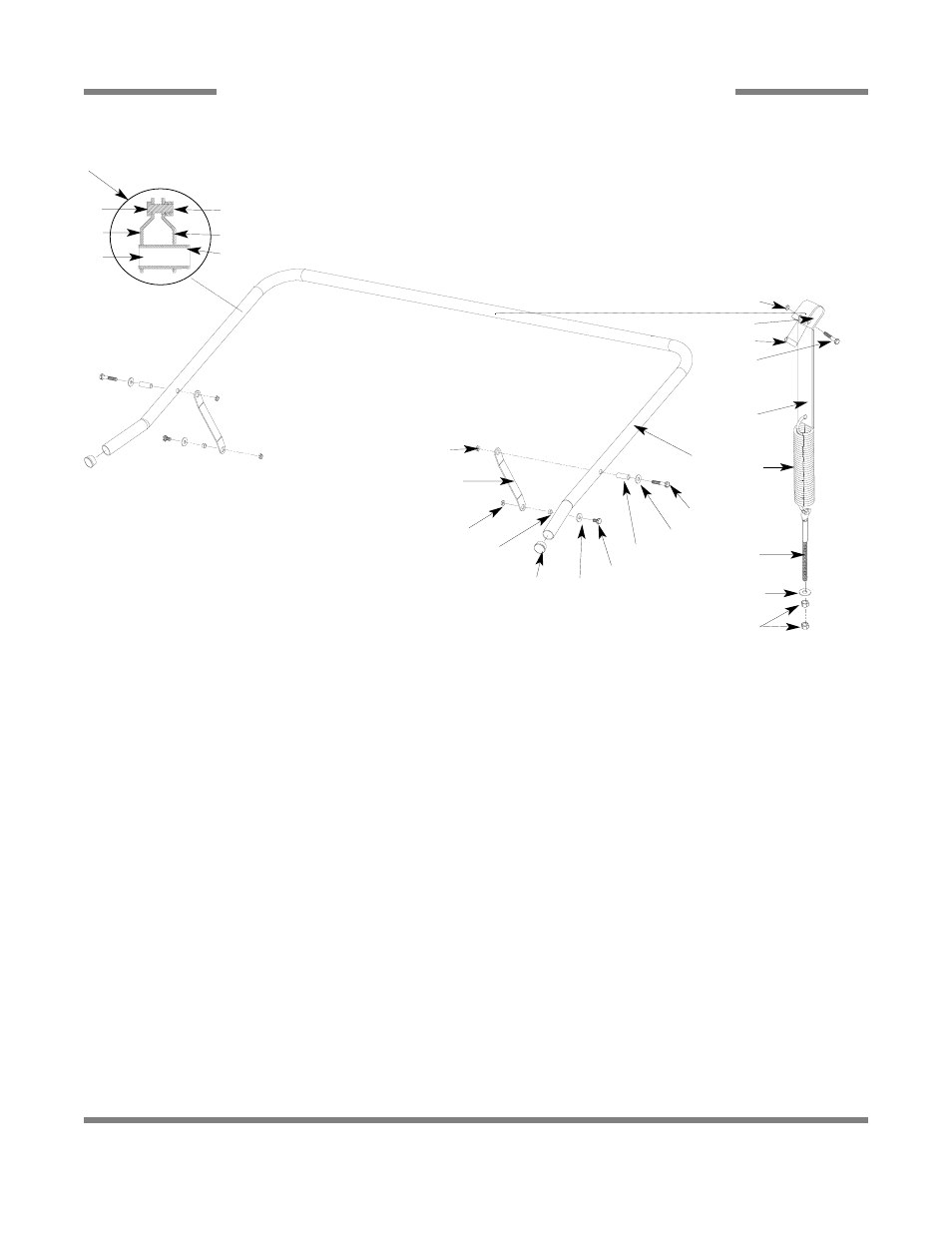

CONSERVER XL2 CANTILEVER ARM ASSEMBLY (SINGLE BRACKET MOUNT)
49
ITEM QTY DESCRIPTION Mfg. No.
1 1 Hex Nut, 1/4"-20 with Nylon Insert, S/S 05310-374-01-00
2 1 Wear Strip UHMW 05700-011-34-50
3 1 Sleeve 05700-000-01-53
4 1 Bolt, 1/4"-20 x 1 3/4", S/S 05305-274-10-00
5 1 Link, Spring to Cantilever Arm 05700-021-34-49
6 1 Cantilever Spring 05340-111-35-22
7 1 Cantilever Eye Bolt 05700-011-45-99
8 1 Washer, Impeller 05311-176-02-00
9 2 Nut, 3/8"-16 Hex, S/S 05310-276-01-00
10 1 Cantilever Arm 05700-031-45-38
11 2 Hex Head Bolt, 1/4"-20 x 1 1/2", S/S 05305-274-23-00
12 4 Washer, Flat 1/4", S/S 05311-174-01-00
13 2 Cantilever Arm Sleeve 05700-000-85-69
14 2 Hex Head Bolt, 1/4"-20 x 1/2", S/S 05305-274-02-00
15 2 Endcap, Cantilever Arm 05340-011-35-00
16 2 Bolt Spacer 05700-000-29-40
17 2 Cantilever Arm Lever 05700-011-90-99
18 2 U Bracket Assembly 05700-011-43-72
19 2 Bolt, Hex Head, 1/4"-20 x 3/4" 05305-274-04-00
20 5 Hex Nut, 1/4"-20 with Nylon Insert, Low Profile 05310-374-02-00
21 1 Bracket, Inner Half, U 05700-021-43-00
Bracket, Outer Half, U & Bearing Assembly 05700-011-43-54
22 1 Bracket, Outer Half, U 05700-021-43-04
23 1 Sleeve Bearing 03120-011-43-53
24* 2 Retaining Ring 05340-011-33-62
11
10
12
13
14
12 15
16
20
17
20
1
2
3
4
5
6
7
8
9
18 U Bracket Assembly
19
21
23
20
22
*24
OLD STYLE CANTILEVER ARM ASSEMBLY
Note: Items 1thru 5 and items 18 thru 24 are used only
with the old style, single mount bracket, Cantilever Arm
Assembly.
