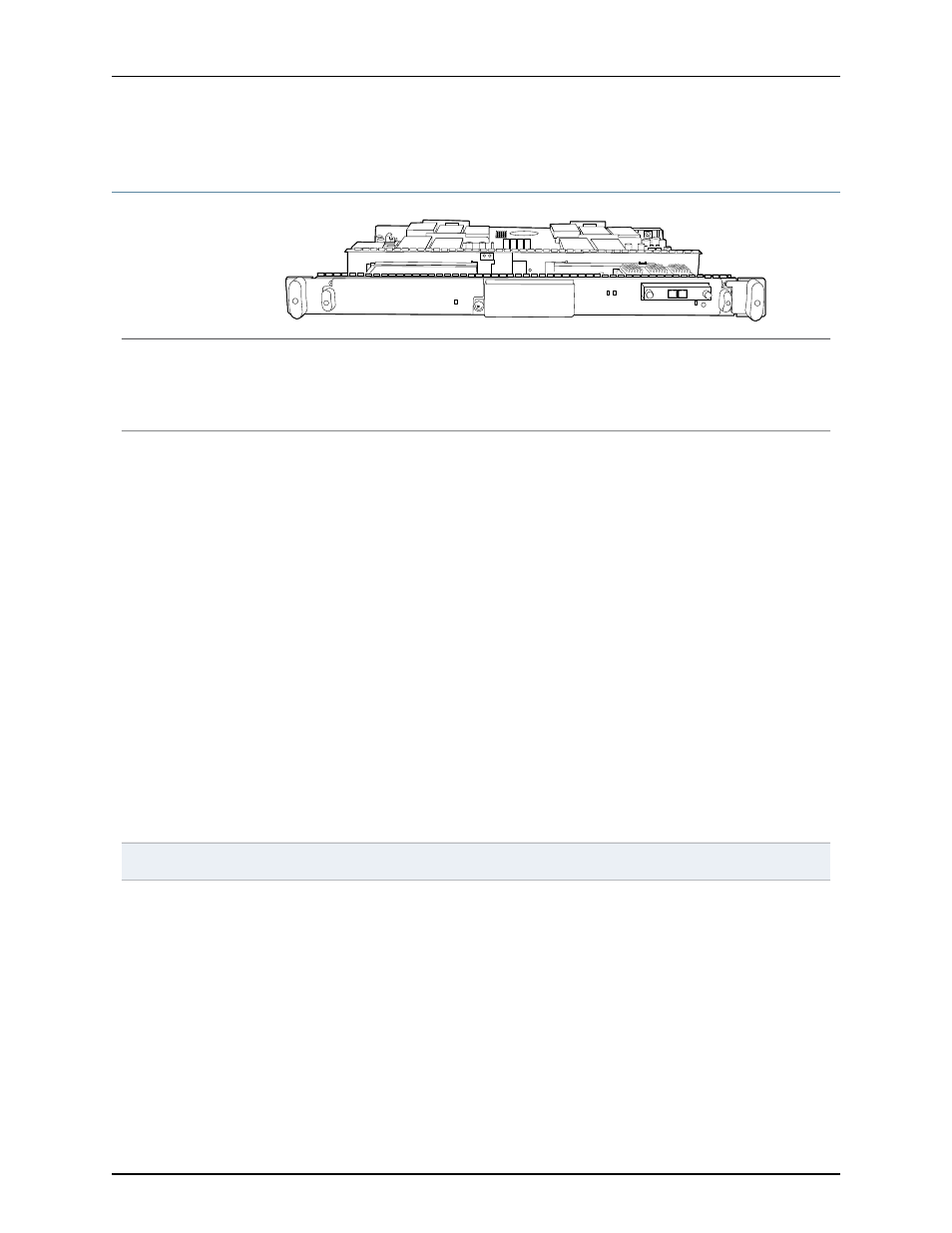

100-Gigabit Ethernet PIC with CFP (T1600 Router)
g006042
100
G
PIC
0
PIC
1
100
G
• Junos OS Release 10.3 (Type 4)
The 100-Gigabit Ethernet PIC is available only packaged in an assembly with the T1600-FPC4-ES
FPC.
Software release
• One 100-Gigabit Ethernet port
• Power requirements for PD-1CE-CFP-FPC4 (PIC and FPC): 9.48 A @48 V (455 W)
• Model number: PD-1CE-CFP-FPC4
• PIC 0 and PIC 1 are connected by a bridge board
• There are two physical interfaces when the 100-Gigabit Ethernet PIC is online. Each physical
interface represents one of two internal 50-Gigabit Ethernet Packet Forwarding Engines (PFEs)
in the FPC. PFE0 is physical interface 0, PFE1 is physical interface 1.
The following example shows the CLI representation of physical interface. The interface type
is
et , the FPC slot number is x , the PIC slot is always 0 , and the ports for the PFEs are 0:0 for
PFE0 and 0:1 for PFE1.
• et-x/0/0:0
• et-x/0/0:1
• You must also configure two logical interfaces under each physical interface. The following
CLI example shows the logical interfaces.
• et-x/0/0:0.0 and et-x/0/0:0.1
• et-x/0/0:1.0 and et-x/0/0:1.1
NOTE: When bringing the PIC online and offline using the request chassis pic (offline | online)
fpc-slot slot-number pic-slot slot-number command, you must specify pic-slot slot-number 0 .
NOTE: For more information about CLI commands, see Junos® OS Ethernet Interfaces.
Description
• Support for MTUs up to 9192 bytes Hardware features
