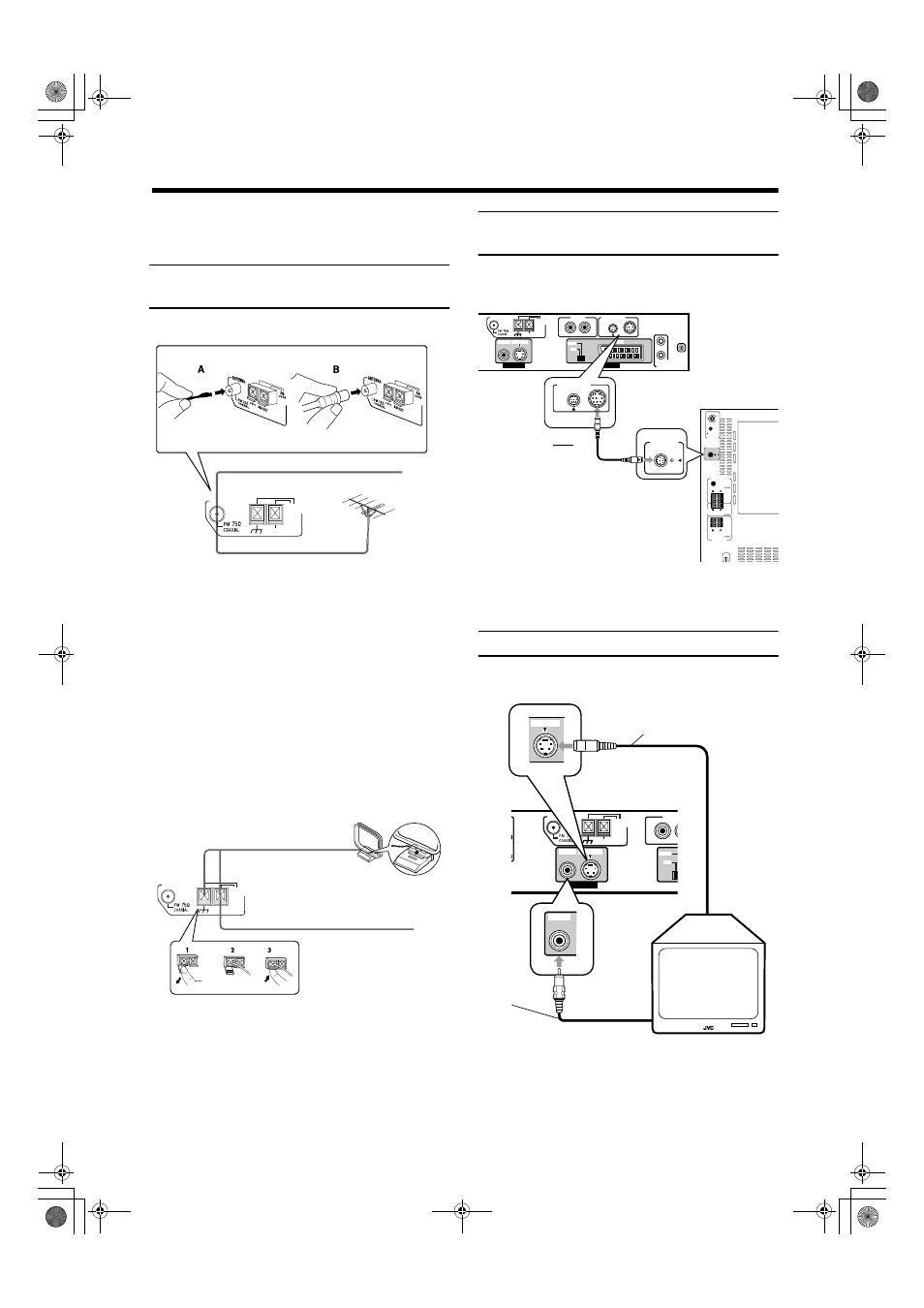

Connections
CAUTION:
• Make all connection before plugging the system in an
AC outlet.
Connecting the FM and AM (MW)
antennas
FM antenna connections
A.Using the supplied FM antenna
The FM antenna provided can be connected to the FM 75
Ω
COAXIAL terminal as temporary measure.
B.Using the standard type connector (Not
supplied)
A standard type connector should be connected to the FM 75
Ω
COAXIAL terminal.
Note:
• If reception is poor, connect the outdoor antenna.
Before attaching the 75
Ω
coaxial cable (the kind with a
round wire going to an outdoor antenna), disconnect the
supplied FM antenna.
AM (MW) antenna connections
Turn the loop until you have the best reception.
Notes:
• Make sure the antenna conductors do not touch any other
terminals, connecting cords and power cord. This could
cause poor reception.
• If reception is poor, connect an outdoor single vinyl-
covered wire to the AM EXT terminal. (Keep the AM (MW)
loop antenna connected.)
Connecting the powered sub-
woofer
Use the supplied system cable to connect the powered sub-woofer
(SP-PWA9).
CAUTUON:
Use the system cable provided for attaching the
center unit and the sub-woofer.
Connecting the TV
Connect the TV to view video images from the unit.
ANTENNA
AM
LOOP
AM EXT
FM Antenna
Extend the supplled FM antenna horizontally.
Outdoor FM Antenna Cable
A.
B.
ANTENNA
AM
LOOP
AM EXT
Outdoor single vinyl-covered wire
AM (MW) Loop Antenna
MAX
MIN
REVERSR
NOMAL
PHASE
SUB WOOFER
CONNECTOR FROM XV - THA9
FRONT SPEAKERS
CENTER
SPEAKER
REAR SPEAKERS
SPEAKER IMPEDANCE
SPEAKER IMPEDANCE
CAUTION :
SPEAKER IMPEDANCE
CAUTION :
CAUTION :
LEFT
RIGHT
VOLUME
CONNECTOR
TO SP-PWA9
AV
COMPU LINK
AUX IN ANTENNA AM
LOOP
AM EXT
S-VIDEO AV COMP.
Y/C
VIDEO
VIDEO OUT AV OUT
R L
CONNECTOR
FROM XV - THA9
CONNECTOR
TO SP-PWA9
Center unit (XV-THA9R)
Ensure that the £ mark on the
plug faces down.
System cable
(supplied)
Ensure that the
£ mark
on the plug faces to the
right.
Powered sub-woofer
(SP-PWA9)
AUX I ANTENNA
AM
LOOP
AM EXT
S-VIDEO COMP.
Y/C
VIDEO
VIDEO OUT
R
S-VIDEO
VIDEO
S-video cable (not supplied)
Connect to the TV if it has an S-video
input (for higher image quality). Connect
the cables with the
∞ mark facing up.
Center unit (XV-THA9R)
Video cable
(supplied)
To composite
video input
To S-video
input
