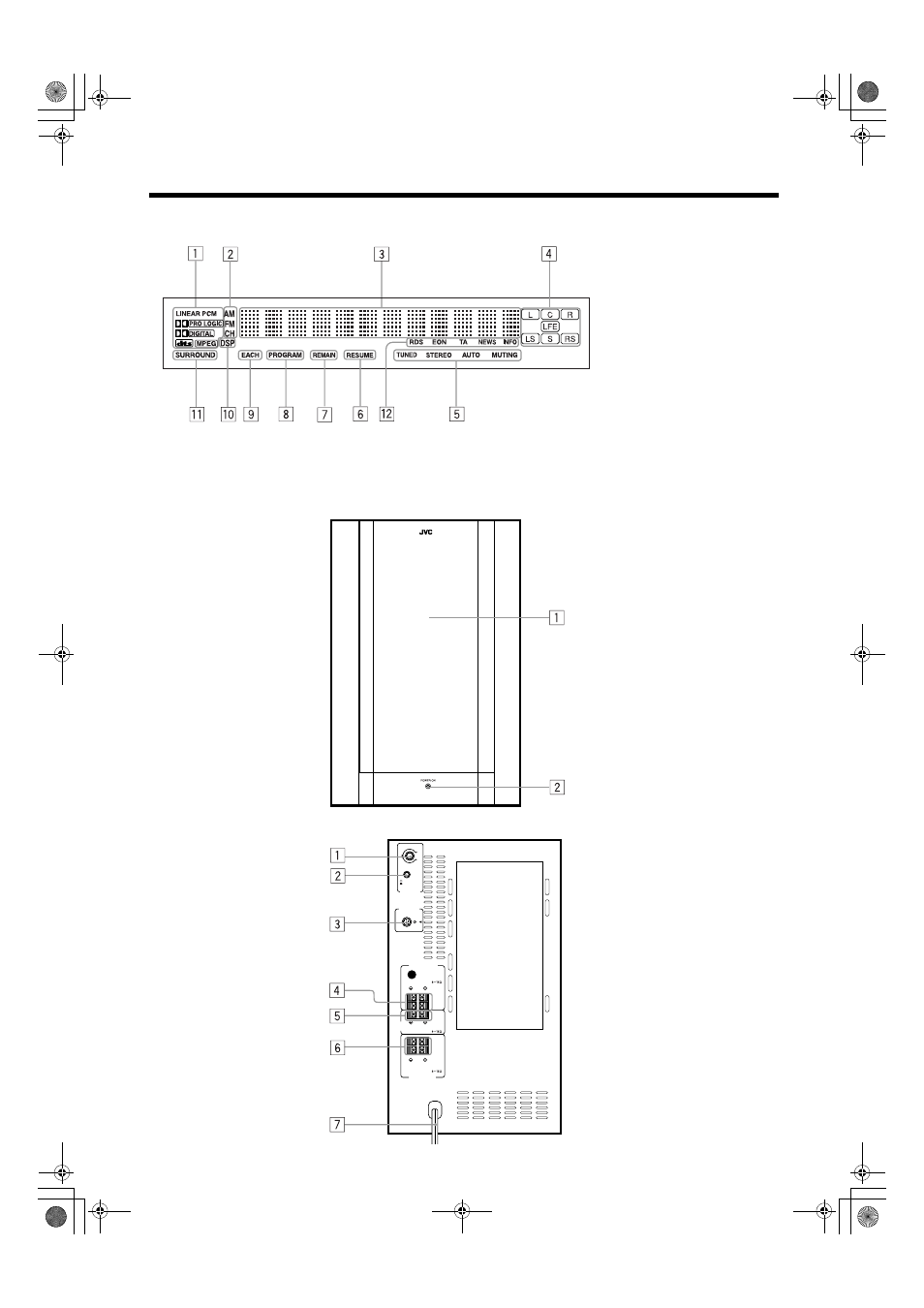

Display window
Powered sub-woofer
(Front)
(Rear)
1 Decode mode indicator
2 Radio indicator (40, 41)
3 Multi-information window
Displays time, status
information, etc.
4 Audio channel indicator (19)
5 Radio reception mode indicator
(40, 41)
6 RESUME indicator (25)
7 REMAIN indicator (Timer
indicator) (39)
8 PROGRAM indicator (36)
9 EACH indicator (Timer
indicator) (39)
p DSP indicator (21)
q SURROUND indicator (21)
w RDS reception mode indicator
(42)
1 Speaker
2 POWER ON lamp (17)
MAX
MIN
REVERSR
NOMAL
PHASE
SUB WOOFER
CONNECTOR
FROM XV - THA9
FRONT SPEAKERS
CENTER
SPEAKER
REAR SPEAKERS
SPEAKER IMPEDANCE
SPEAKER IMPEDANCE
CAUTION :
SPEAKER IMPEDANCE
CAUTION :
CAUTION :
LEFT
RIGHT
VOLUME
1 VOLUME knob (18)
2 PHASE button (18)
3 Connector for center unit (6)
4 FRONT SPEAKERS
terminals (8)
5 CENTER SPEAKER
terminals (8)
6 REAR SPEAKERS
terminals (8)
7 Power cord (10)
