Amplifier settings
Perform amplifier settings (balance, tone, speaker size and delay
time, crossover frequency, LFE (Low Frequency Effect) level and
dynamic range) for the powered sub-woofer unit to obtain
optimum listening performance.
Note:
• Before starting settings, be sure that each speaker is
properly installed and your listening position is fixed, since
some setting items should be changed according to your
listening position with respect to the installed speakers.

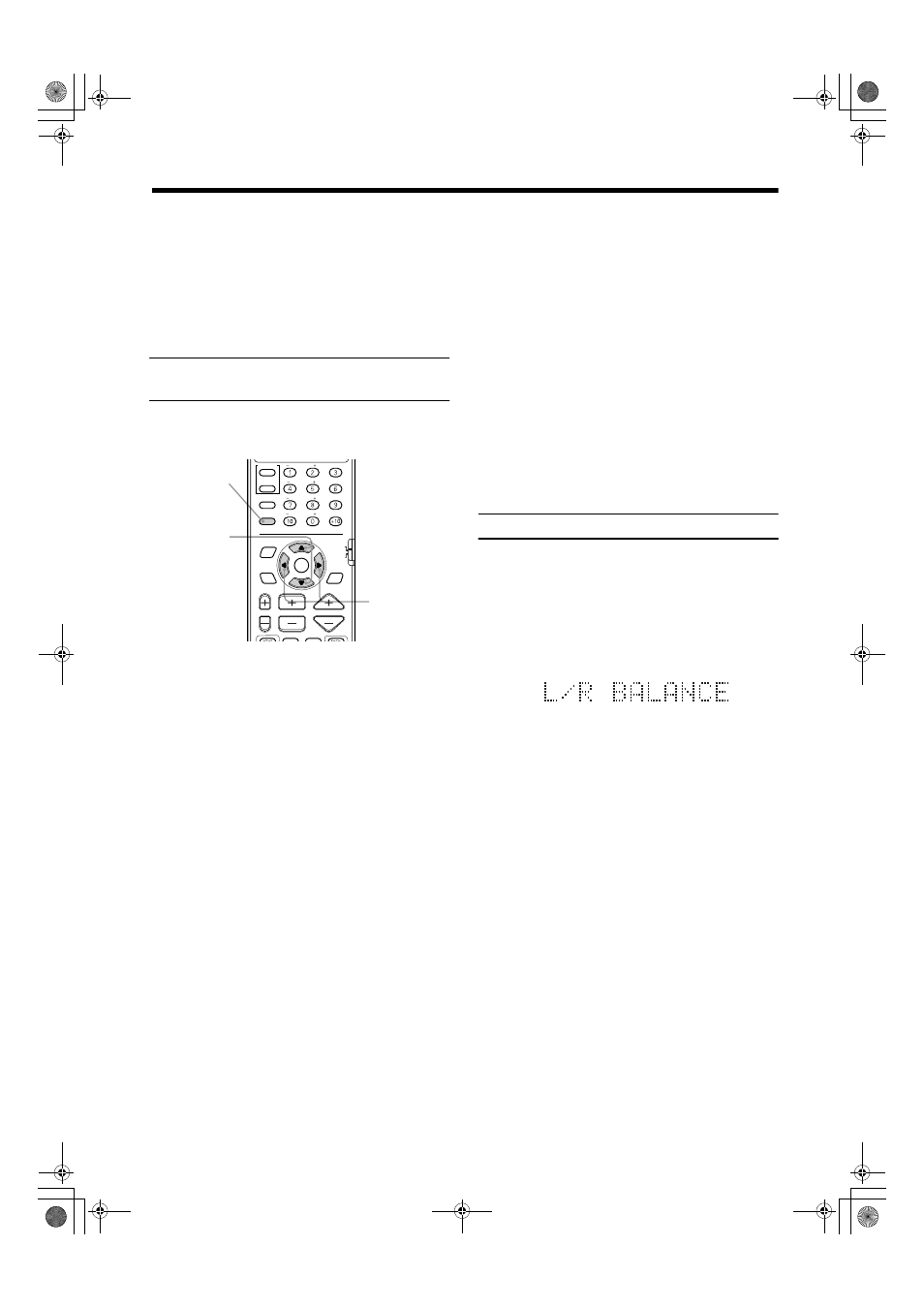

Basic operation for setting
amplifier
The basic operation for setting each item is as follows:
❏ While stopped or during playback
From the remote control only:
1 Press SETTING.
The system enters power amplifier setting mode and the setting
item you have lastly selected appears on the display window.
2 Press the 5 5 5 5/∞ ∞ ∞ ∞ cursors to select the desired
item.
Each time you press the button, the setting item shown on the
display window changes as follows:
j j j j L/R BALANCE j j j j BASS j j j j TREBLE j j j j FRONT
SPK j j j j CENTER SPK j j j j REAR SPK j j j j CENTER
DELAY j j j j REAR DELAY j j j j CROSSOVER j j j j LFE
ATT. j j j j D.RANGE COMP. j j j j
L/R BALANCE
Balance between the right and left front speakers
BASS
Bass (low frequency sound) for the front speakers
TREBLE
Treble (high frequency sound) for the front speakers
FRONT SPK*
Setting the size of the front speakers
CENTER SPK*
Setting the size of the center speaker
REAR SPK*
Setting the size of the rear speakers
CENTER DELAY
Setting the delay time for the center speaker
REAR DELAY
Setting the delay time for the rear speakers
CROSSOVER*
When using a small speaker with weak bass as a front, center
or rear speaker, you can redirect bass audio to the sub-woofer.
LFE ATT. LFE (Low Frequency Effect) attenuator
When bass sound is distorted while playing back the program
recorded in Dolby Digital or DTS surround, you can lower the
sound level using LFE attenuator.
D.RANGE COMP.
You can compress the dynamic range. This may be used when
you play back surround effects at night. This function work
only for the program recorded in Dolby Digital.
* When you use the supplied speakers with this
system, you do not need to change the initial
settings for these items.
3 Press the
2 2 2 2/3 3 3 3 cursors to select the desired
option.
When you select one of options, it is set for the item.
To exit power amplifier setting mode
Press SETTING again.
Setting balance
Adjust the balance between the front L/R speakers.
1 Press SETTING.
The system enters power amplifier setting mode and the
setting item you have lastly selected appears on the display
window.
2 Press the
5 5 5 5/∞ ∞ ∞ ∞ cursors until “L/R BALANCE”
appears on the display window.
• After a while, the current setting appears.
3 Within 5 seconds, press the 2 2 2 2/3 3 3 3 cursors to
adjust the balance.
Each time you press the button, the balance level changes as
follows:
R-21 to R-1 j j j j CNTR j j j j L-1 to L-21
Holding down the button continuously changes the level.
To exit power amplifier setting mode
Press SETTING again.
TV/VIDEO MUTING
CHANNEL TV VOL VOLUME
VCR
TV
SLEEP
TV RETURN FM MODE 100+
CONTROL SUBWOOFER EFFECT
CENTER TEST
REAR-R
THEATER
POSITION
DSP
MODE
REAR-L
PLAY
MODE
SETTING
PTY SEARCH
EON SELECT
RDS DISPLAY
PTY- +PTY
RDS
DVD
ENTER
EON
1
2
3
• R-21 to R-1: The output from the right speaker
decreases. (R-21: R channel signal is
muted.)
• CNTR: The outputs from both speakers are the
same.
• L-1 to L-21: The output from the left speaker decreases.
(L-21: L channel signal is muted.)
