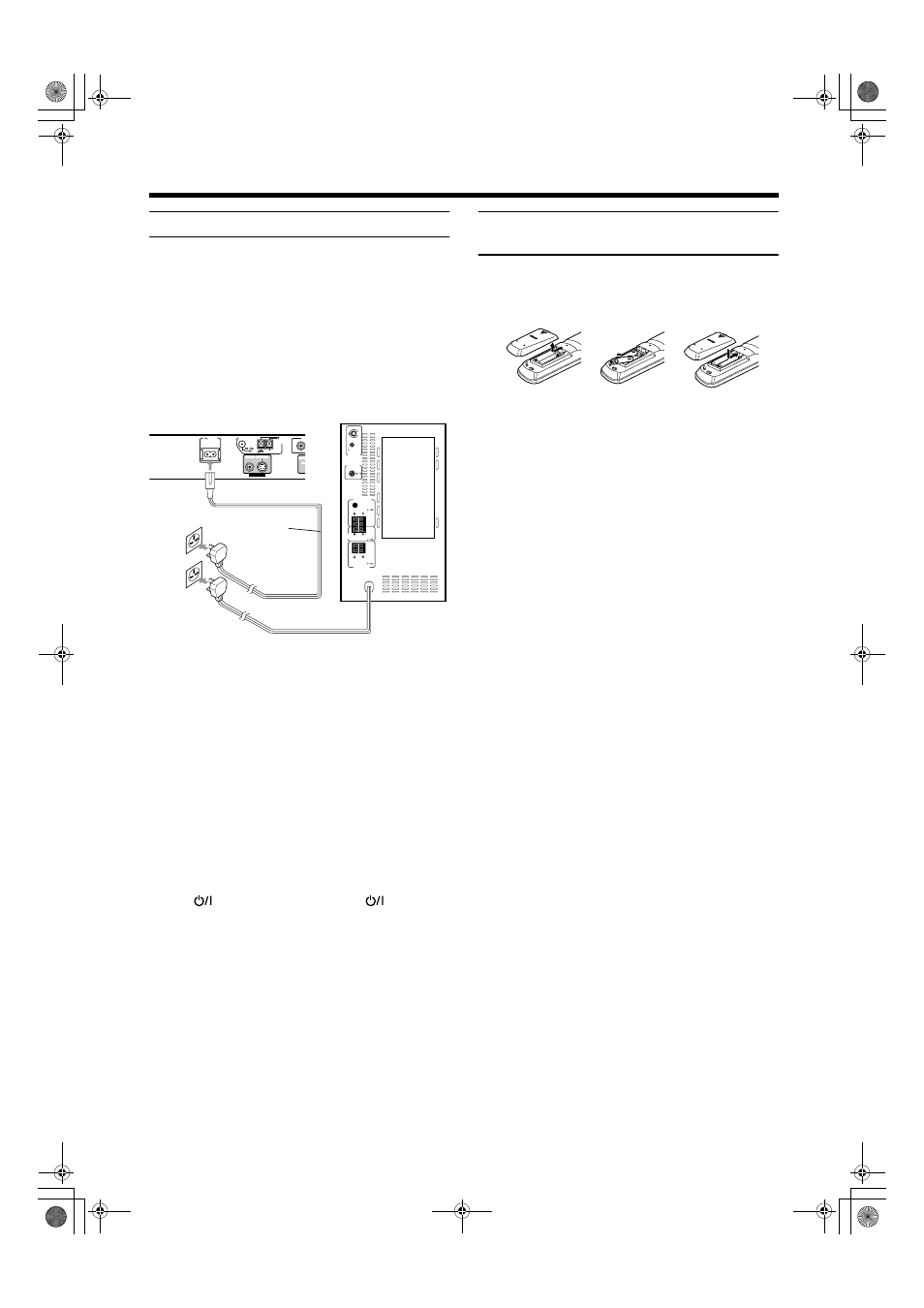

Connecting the power cord
Before plugging the center unit and powered sub-woofer into an
AC outlets, make sure that all connections have been made.
Plug the power cord into an AC outlet.
The red STANDBY lamp on the center unit lights when the power
cord is plugged in.
Keep the power cord away from the connecting cables and the
antenna cable. The power cord may cause noise or screen
interference.
We recommend that you use a coaxial cable to connect the FM
outdoor antenna, since it is well-shielded against interference.
CAUTIONS:
• Do not touch the power cord with wet hands.
• Do not pull on the power cord to unplug the cord.
When unplugging the cord, always grasp the plug so
as not to damage the cord.
Notes:
• The preset settings such as preset channel and sound
adjustment may be erased in a few days in the following
cases:
– When you unplug the power cord.
– When a power failure occurs.
• The speakers will not produce any sound if the powered
sub-woofer power cord is removed from the AC outlet
while the center unit is turned on.
In this case power will not come on even when the
powered sub-woofer power cord is plugged in the AC
outlet.
Press
on the center unit, or AUDIO on the
remote control to turn power on. This will turn the powered
sub-woofer on and sound will be emitted from the
speakers.
Putting batteries in the remote
control
Before using the remote control, put two supplied batteries first.
When using the remote control, aim the remote control directly at
the remote sensor on the center unit.
1 On the back of the remote control, remove the
battery cover.
2 Insert batteries. Make sure to match the
polarity: (+) to (–).
3 Replace the cover.
• If the range or effectiveness of the remote control decreases,
replace the batteries. Use two R6P (SUM-3)/AA (15F) type
dry-cell batteries.
CAUTIONS:
Follow these precautions to avoid leaking or cracking
cells:
• Place batteries in the remote control so they match
the polarity: (+) to (–).
• Use the correct type of batteries. Batteries that look
similar may differ in voltage.
• Always replace both batteries at the same time.
• Do not expose batteries to heat or flame.
AU ANTENNA AC IN AM LOOP
AM EXT
S-VIDEO COMP.
Y/C
VIDEO
VIDEO OUT
R
MAX
MIN
REVERSR
NOMAL
PHASE
SUB WOOFER
CONNECTOR FROM XV - THA9
FRONT SPEAKERS
CENTER
SPEAKER
REAR SPEAKERS
SPEAKER IMPEDANCE
SPEAKER IMPEDANCE
CAUTION :
SPEAKER IMPEDANCE
CAUTION :
CAUTION :
LEFT
RIGHT
VOLUME
Center unit
AC power cord
Powered sub-woofer
1 2 3
