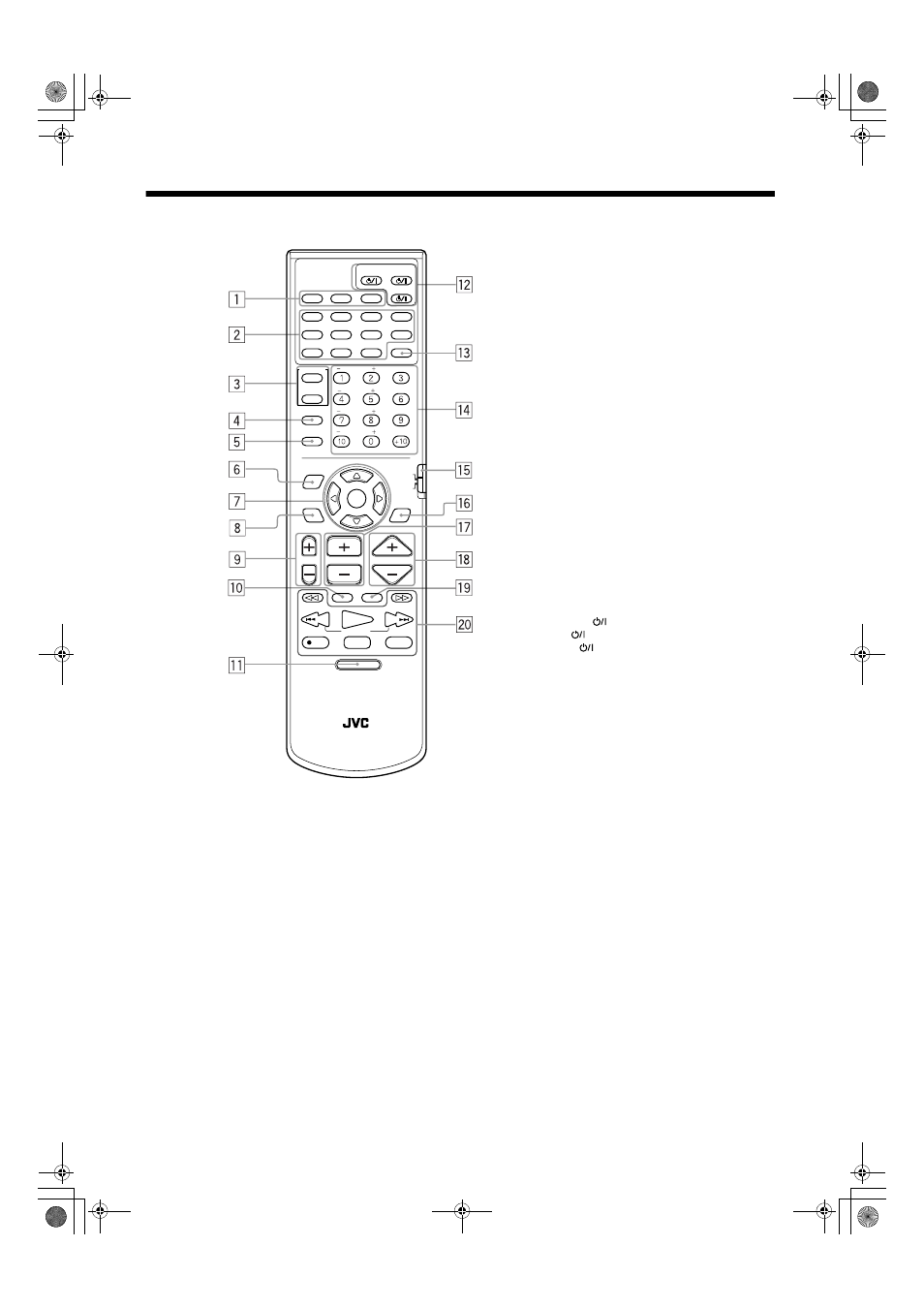

Remote controls
TUNING UP DOWN
REC
/REW FF/
PAUSE
STROBE MEMORY
F.SEARCH B.SEARCH
PLAY
CHANNEL TV VOL VOLUME
STOP
DVD
STANDBY/ON
VCR
DECODE SUBTITLE TITLE AUDIO
TIME DIGEST ZOOM
VCR
TV
TV RETURN FM MODE 100+
CONTROL SUBWOOFER EFFECT
CENTER TEST
REAR-R
REAR-L
DISPLAY
CHOICE ANGLE RETURN
FM/AM AUX
SLEEP
SETTING
PLAY
MODE
THEATER
POSITION
DSP
MODE
TV/VIDEO MUTING
SOUND
RM-STHA9R
DVD CINEMA SYSTEM
PTY SEARCH
EON SELECT
RDS DISPLAY
PTY- +PTY
AUDIO TV
RDS
DVD
ENTER
EON
DVD MENU
1 Source selecting buttons (14, 18, 41)
AUX, FM/AM, DVD
2 DVD operating buttons
TITLE (25)
SUBTITLE (31)
DECODE (19)
AUDIO (32)
ZOOM (31)
DIGEST (28)
TIME (38, 39)
DISPLAY (37, 38)
RETURN (26)
ANGLE (33)
CHOICE (44)
3 Control buttons VCR/TV (55, 56)
4 SLEEP button (20)
5 SETTING button (50)
6 PLAY MODE button (34, 35, 36, 37)
7 Cursor (EON SELECT, PTY +, PTY
SEARCH, PTY –) and ENTER
(EON) buttons (42, 43)
8 THEATER POSITION (RDS
DISPLAY MODE) button (42)
9 TV VOL +, – button (55)
p TV/VIDEO button (55)
q DVD MENU button (25)
w STANDBY/ON buttons
AUDIO (17, 22)
TV (17, 22, 55, 56)
VCR (56)
e SOUND button (53, 54)
r Number buttons
t Remote control mode selector (55)
DVD, RDS
y DSP MODE button (21)
u CHANNEL +, – button (55, 56)
i VOLUME +, – button (17)
o MUTING button (18)
; Operating buttons (23, 24, 40, 41)
