6 horizontal timing (vertical binn, At-200ge – JAI AT-200GE User Manual
Page 41
AT-200GE
- 39 -
Partial scan
examples
Effective lines
Total lines
Horizontal
Frequency
Frame rate
2/3
824
881
19.276 KHz
21.87 fps
1/2
616
696
19.276 KHz
27.69 fps
1/4
308
422
19.276 KHz
45.67 fps
1/8
152
283
19.276 KHz
68.11 fps

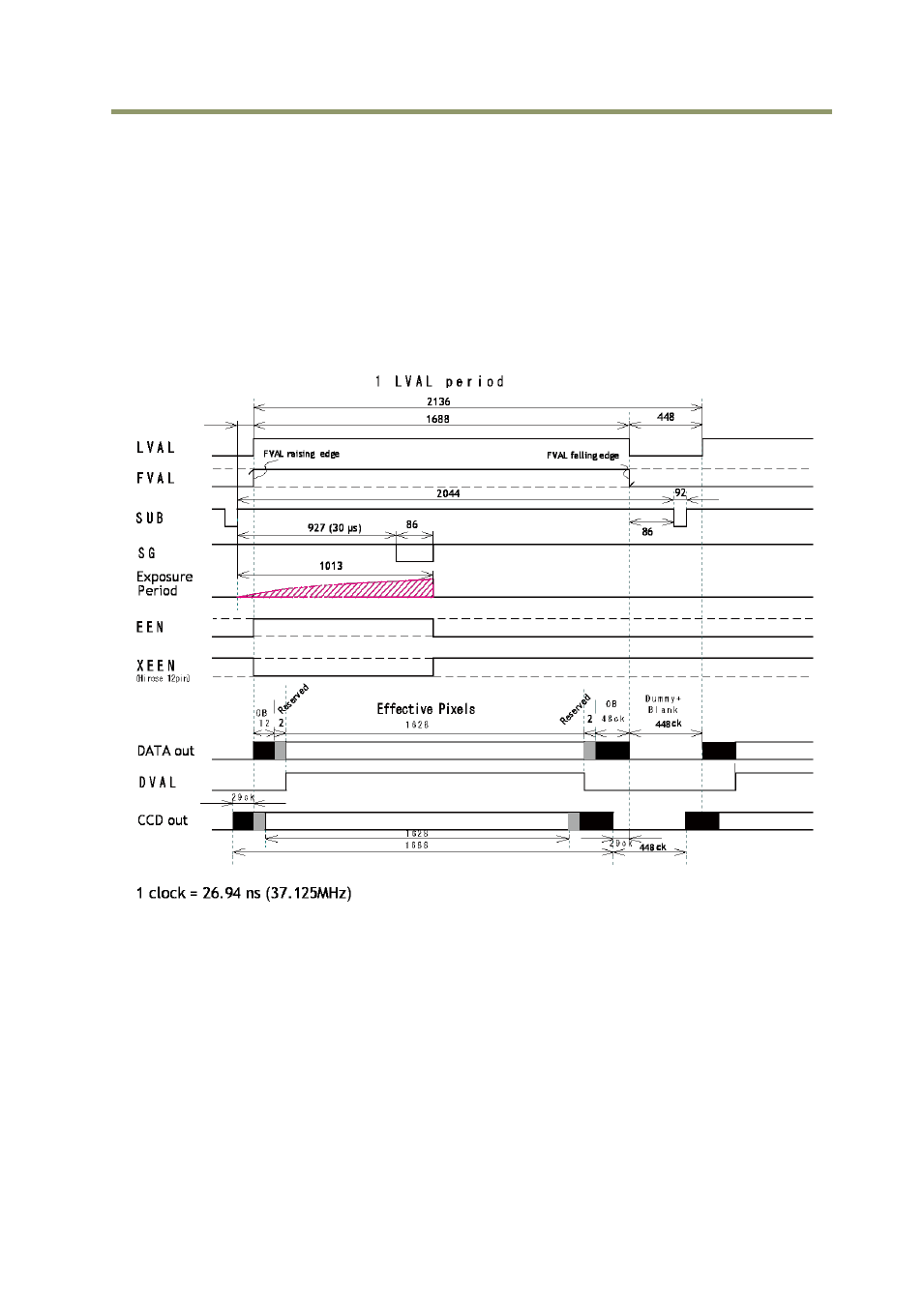

9.6.6 Horizontal timing (Vertical binning mode)
Fig. 39 Horizontal timing for V binning.
