9.6. Sensor Layout and timing

9.6.1 CCD Sensor Layout



























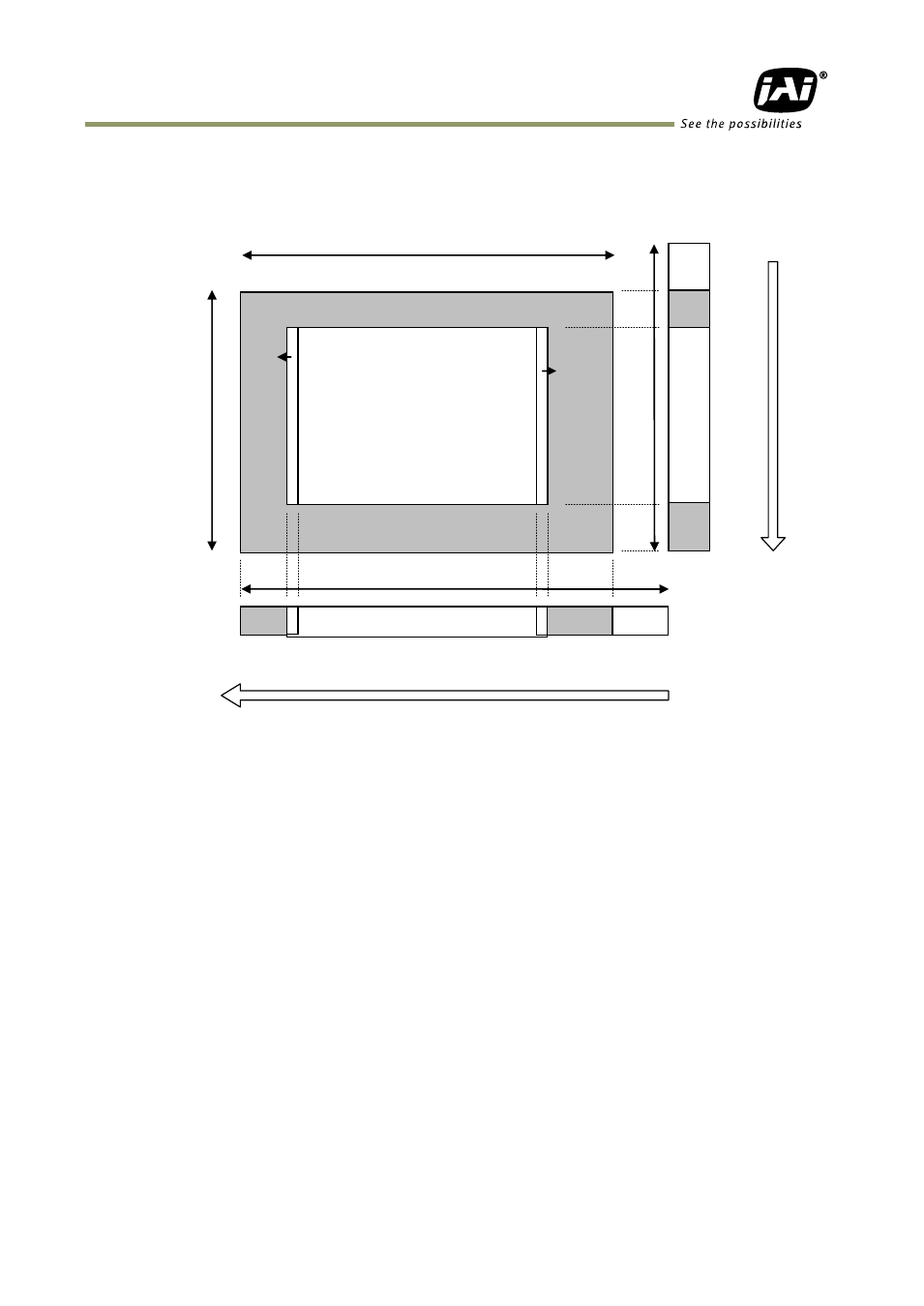

Fig.34 CCD sensor layout











blank

Read Out
(Vertical)

1248

Active Pixels

1624(H)x1236(V)

Optical Black
Lines

Optical Black Lines

1624

12

48

10

2

blank

1926Clock

Read Out(Horizontal)

4

238

1688

1236

1252

2

2

Reserve

Reserve
