6.4. Auto iris video output level
This video output signal is NUM luminance signal and does not have SYNC. It is available only
in Continuous mode and RCT mode. It is also not available in partial scan mode.
This signal is not affected by the gain control.
CCD out
Analog Out
200mV
700mV
230mV↑
800mV

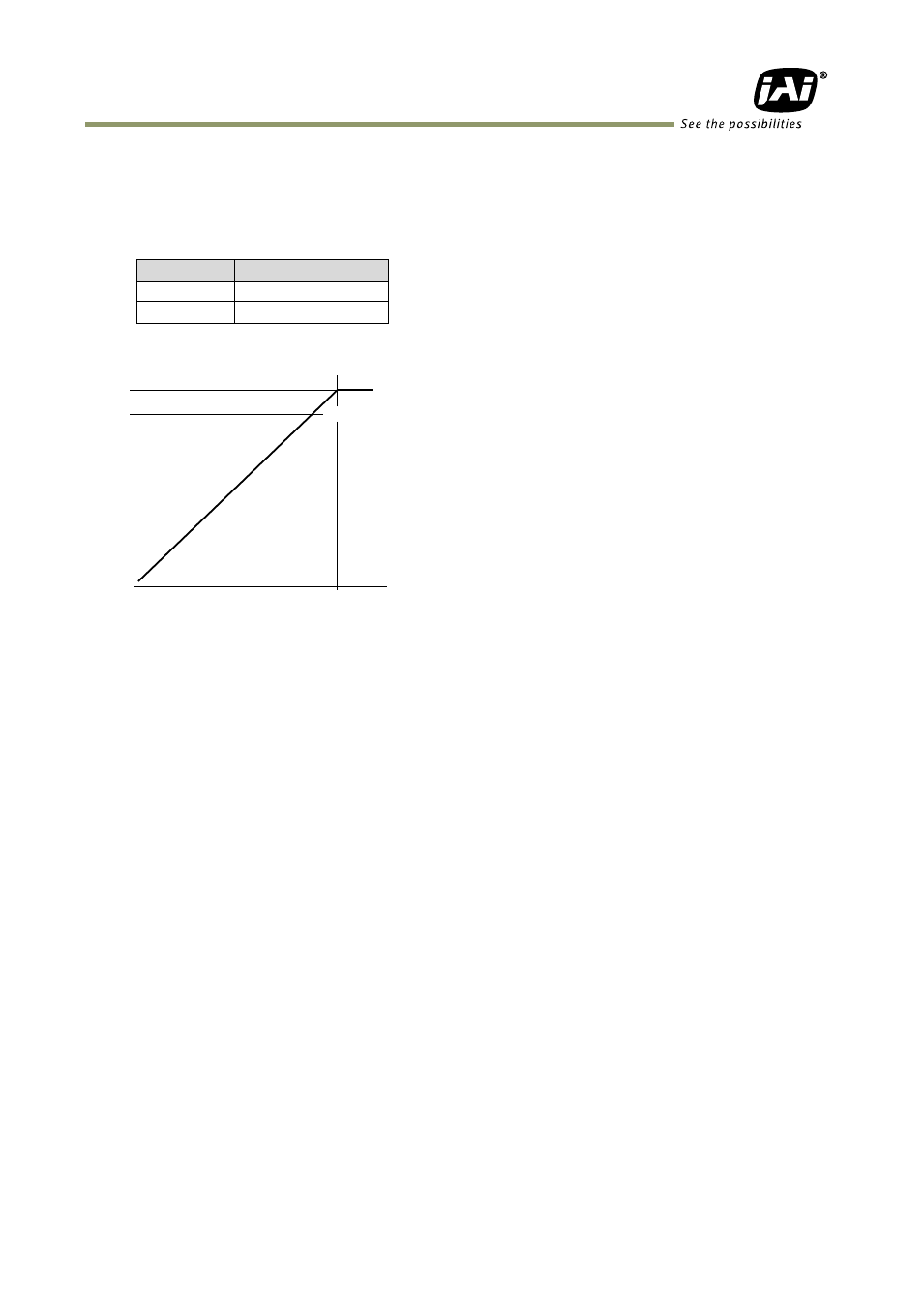

Fig.12 Iris video output
0
100% Level
700
200
A
n
al
og
Ou
t
[
m
V]
CCD Out [mV]
265
930
