Chapter 4 Servicing the Device
38
User’s Guide

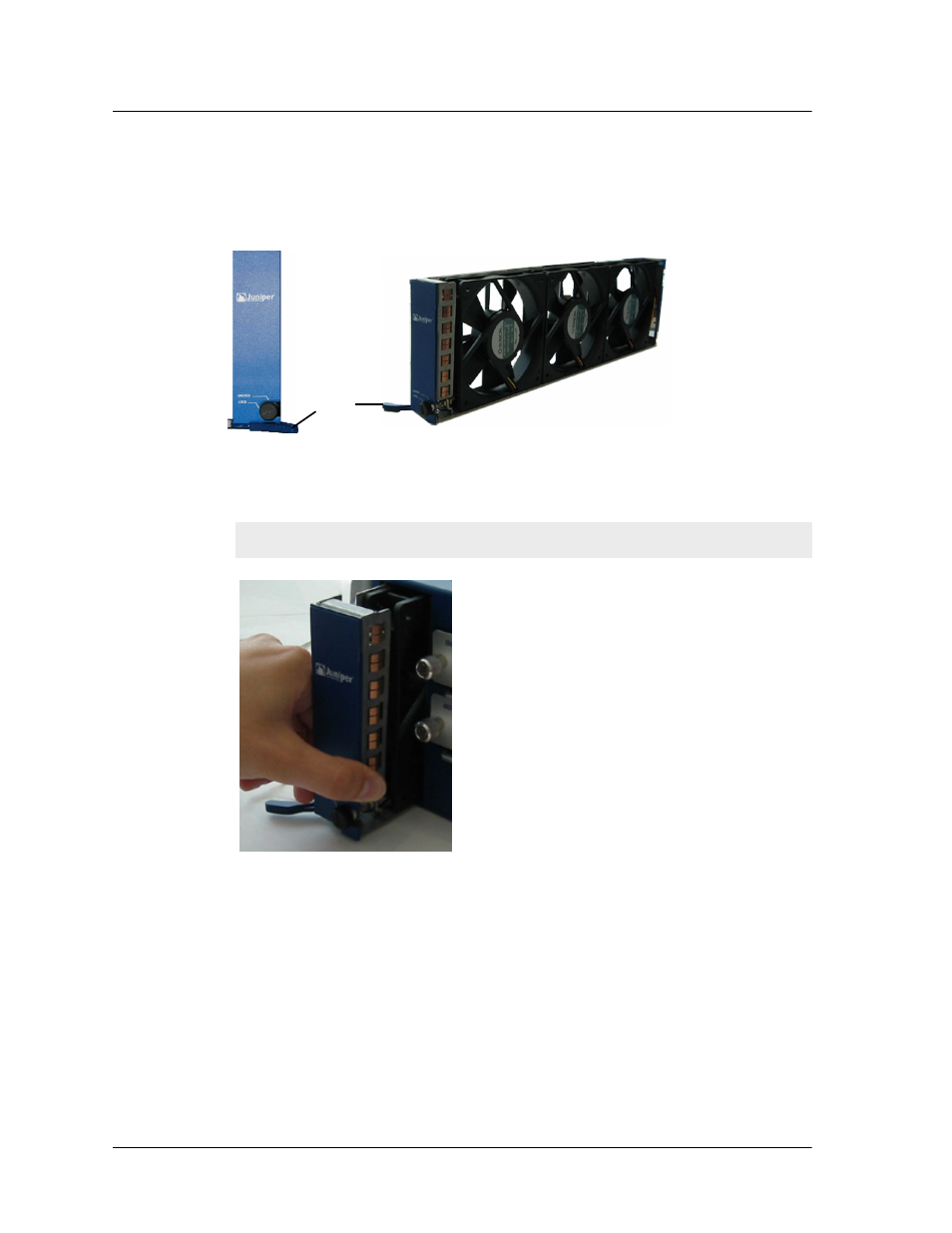

NetScreen-5200 Fan Module
To remove the fan module on a NetScreen-5200:
1.
Pull the fan lever until it is fully extended.
2.
Grip the sides, then gently slide the assembly straight out.
3.
Insert the new fan module in the fan bay, then push it straight in.
4.
Secure the fan module in place by pushing the fan lever flat against the front
panel.
Warning:
Do not remove the fan module while the fans are still spinning.
Fan
Lever
Fan Front
Fan Module
