NetScreen-5000 Modules
NetScreen-5000 Series 7
The 5000-M2 Management Module
The 5000-M2 management module is based around powerful, dual 1GHz PowerPC CPUs,
which assist other system elements, primarily with non-flow related tasks. The 5000-M2
management module provides overall management and control of the system. Although it
performs system management, the primary function of the 5000-M2 is to support the
other modules.
Features of the 5000-M2 management module include:
• A management port, for WebUI management or Command Line Interface
sessions.
• An RJ-45 console port, for connecting serial terminal emulation programs such
as HyperTerminal.
• Two High Availability (HA) ports.
• A modem port.
The 5000-M2 management module also has port Link and Activity LEDs, CPU utilization
indicators, a High Availability (HA) LED, an Alarm LED, a Status LED, a Flash LED,
and a Power LED. In addition, it has a compact flash slot for flash memory card
installation.
See Port Descriptions and LED Status for descriptions of the LED lights.
Note: The 5000-M2 is not currently FIPS, NEBS, or Common Criteria Certified.

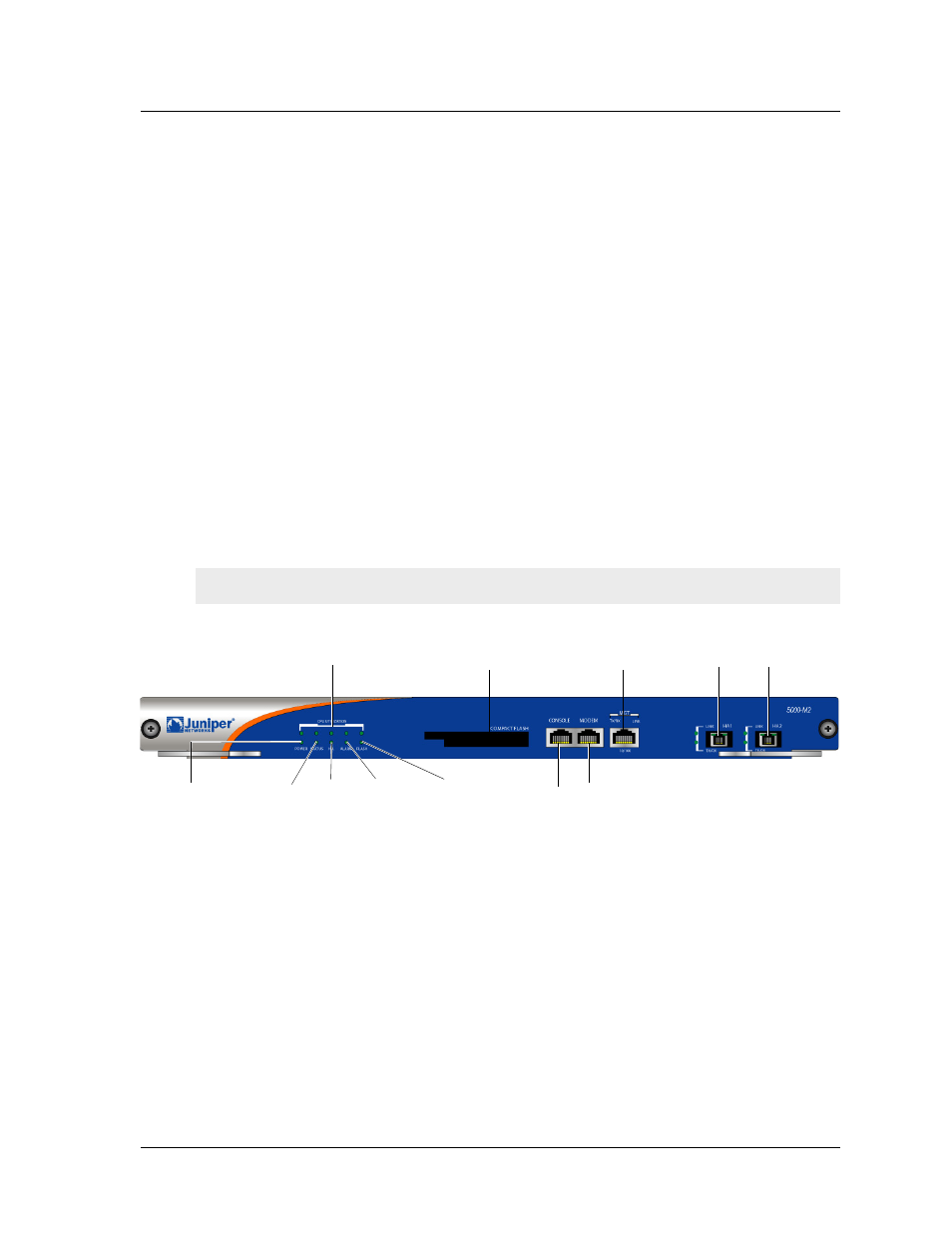

Power
LED
Status
LED
HA
LED
Alarm
LED
Flash
LED
Compact Flash Slot
Console
Port
Modem
Port
Management Port High Availability Ports
CPU Utilization
LEDs
