Item
Number Part Number Description Note
Quantity Per
Package Assembly
1057852 Tube, Pivot/Slide, Curved End, Steel, Black (9-7/8") 1 1 1
1057854 Tube, Pivot/Slide, Curved End, 2" Longer, Steel,
Black 1 1 1
1058418 Tube, Pivot/Slide, Curved End, 4" Longer, Steel,
Black 1 1 1
1025457 Spacer, Coved (1/4 x 3/4 x 11/32") 1 2 2
1027097 Plug Button, Black (3/4") 1 1 3
7930323 Package, Locknut (1/4-20) 25 1 4
7930366 Package, Socket Head Screw (1/4-20 x 2-1/4") 25 1 5
1026879 Footplate, Composite, Small, Black (6" W x 6" L) 1 1 6 A
1026880 Footplate, Composite, Medium, Black (7" W x 6" L) 1 1 6 B
1026881 Footplate, Composite, Large, Black (8" W x 6" L) 1 1 6 C
1026879 Footplate, Composite, Small, Black (6" W x 6" L) 1 1 6 D
1026880 Footplate, Composite, Medium, Black (7" W x 6" L) 1 1 6 E
1026881 Footplate, Composite, Large, Black (8" W x 6" L) 1 1 6 F
A - 13"-14" Wide
B - 15"-16" Wide
C - 17" and Wider
D - 15"-17" Wide
E - 18"-19" Wide
F - 20" and Wider NOTE:

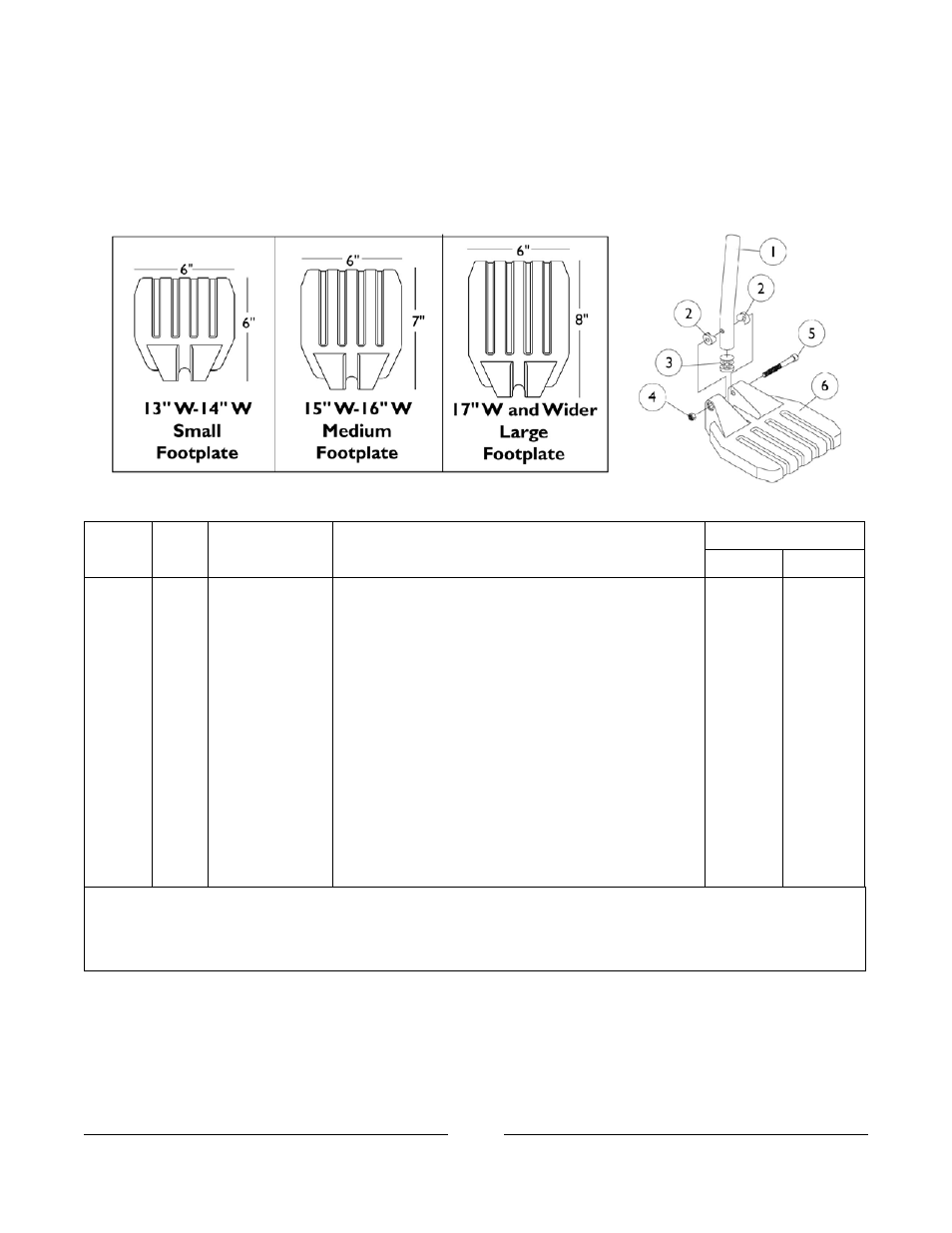

Pivot/Slide Tube w/ Footplate Assy. - Composite - 1651
NOTE: Heel Loops are not included. See footrest and legrest accessories.
NOTE: For complete pivot/slide tube and footplate assemblies, see front riggings reference charts
