Heritage Series ADSL Bridge/ Router
3-9 Basic Configurations
3.5 PPP Over ATM (RFC2364)

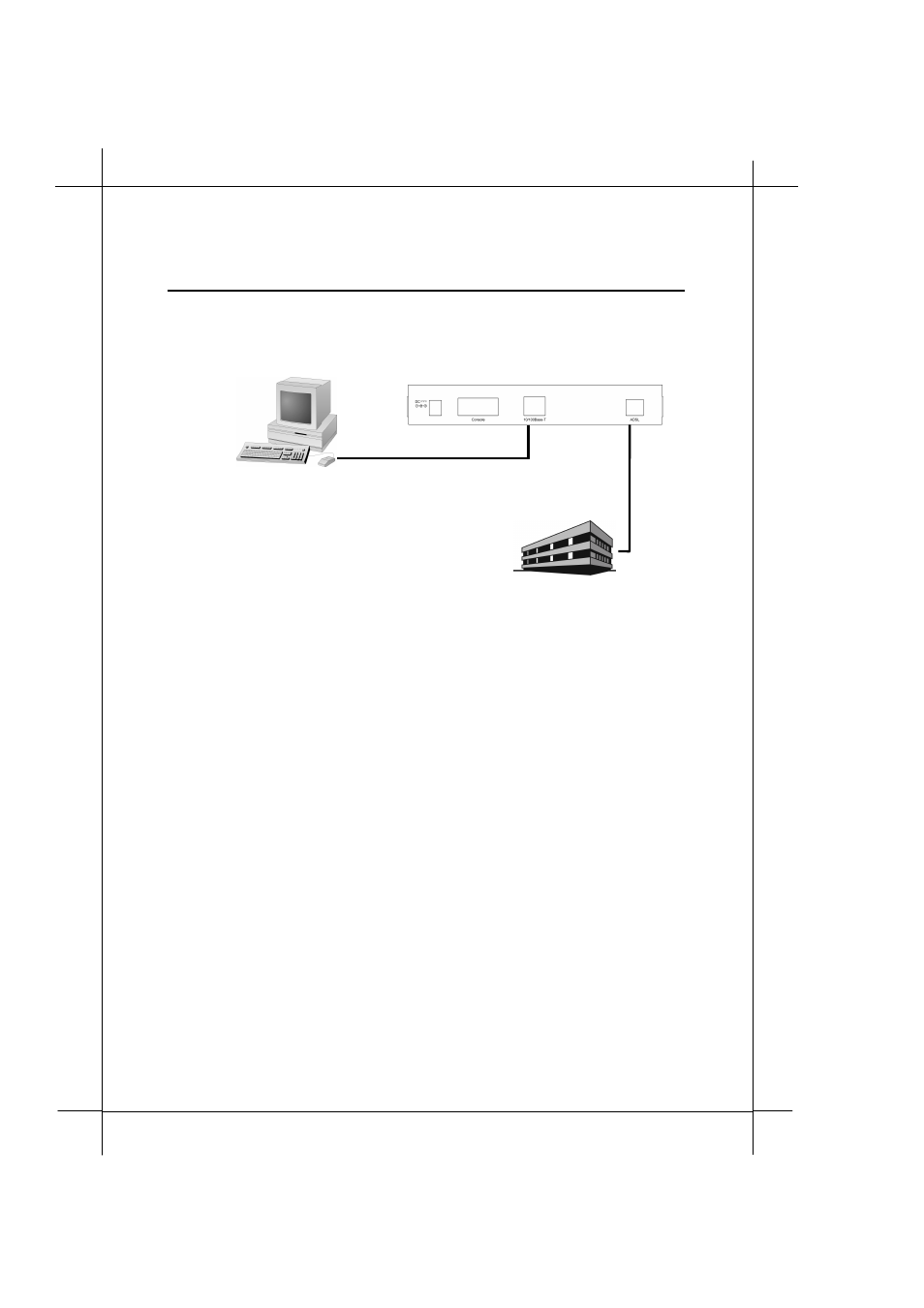

[System configuration]
[ISP/DSLAM Configuration]
IP Address : 192.168.1.1
Subnet Mask : 255.255.255.0
Default Gateway : 192.168.1.2
[Local PC Configuration]
IP Address : 202.1.136.100
Subnet Mask : 255.255.255.0
Default Gateway : 202.1.136.254
The xDSL Router also can be setup to support RFC 2364(PPP over ATM)
with following procedure. Before setup RFC 2364, you have to ensure
remove existing RFC 1483 or RFC 1577 configuration with the procedure
mentioned above.
• IP dial out over PPPoA
> ip device add Ethernet ether //edd 202.1.136.254
↵
(This is the IP of Ethernet port of xDSL Router)
> ip device add ppp_device ether //ppp/DEVICE=1
↵
> config save
↵
> restart
↵
> ppp 1 pvc 0 32
↵
(Set channel 1 to VPI=0, VCI=32)
> ppp 1 welogin
↵
(This is the login name and password of PPP server)
> ppp 1 enable
↵
DSLAM/NSP
192.168.1.1
Ethernet
Ethernet Port
202.1.136.100
202.1.136.254
192.168.
1.2
