46 Intel Server Board SHG2 Product Guide
Adding or Replacing a Processor
If you are adding a second processor to your system, the second processor must be identical in
speed with the first processor.
1. Observe the safety and ESD precautions at the beginning of this chapter and the additional
cautions given here.
2. Remove power from your system by unplugging the AC power cord.
3. Remove the side cover (see your system or chassis documentation for instructions).

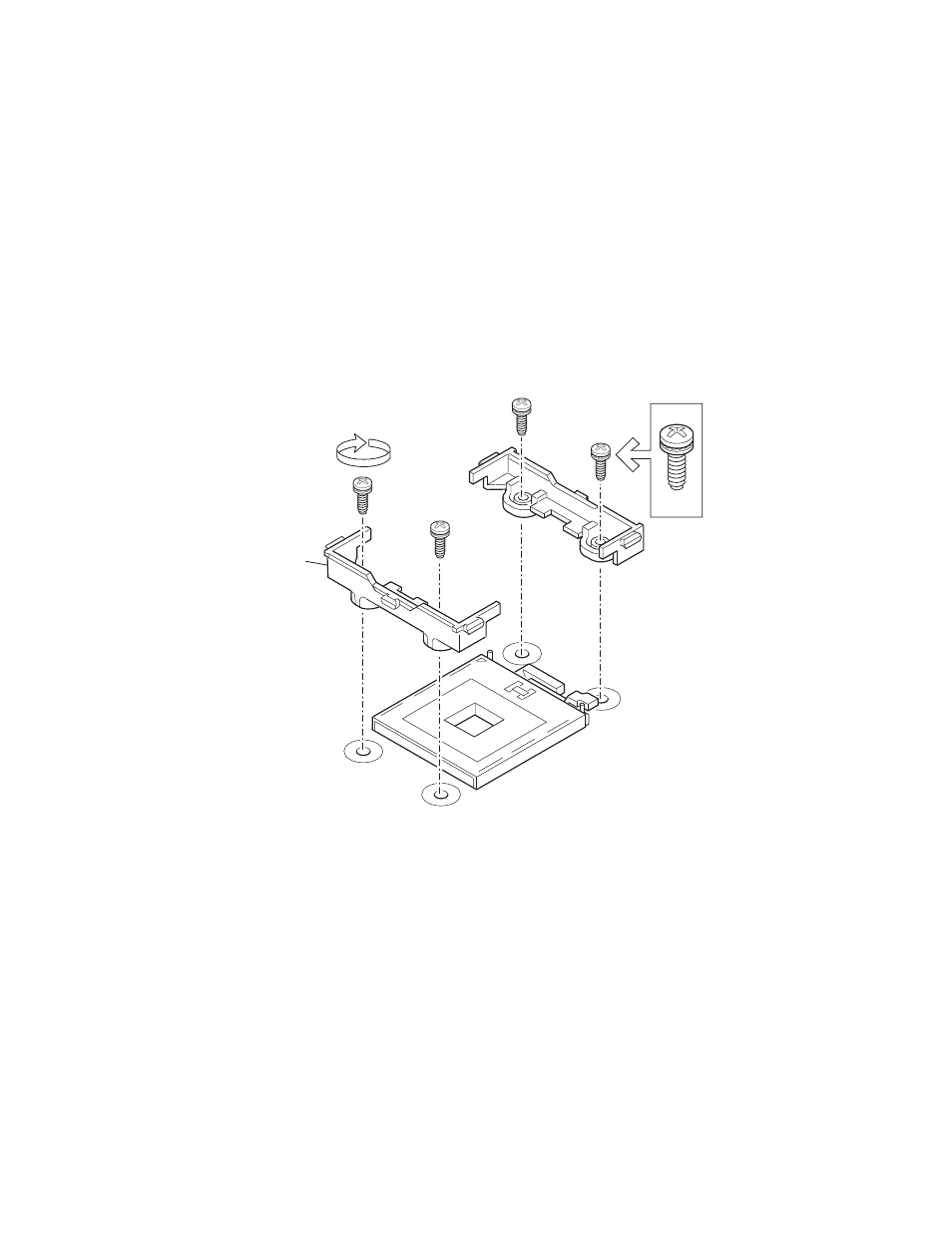

4. Install the retention brackets for the primary processor by inserting the retention brackets (A)
and tightening the four retention screws. The primary processor socket is located nearest to the
corner of the server board. If installing a second processor, install the retention brackets for the
secondary processor.
OM14364
A
Figure 27. Installing the Retention Brackets
