Server Board installation 35
Making Connections to the Server Board
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R S T U V X W
Y
Z
AA
BB
CC
DD
EE
FF
GG
HH
II JJ KK LL
OM14357
A. Primary Processor Socket (CPU1) T. LVD SCSI B
B. CPU2 Fan U. Battery
C. Secondary Processor Socket (CPU2) V. LVD SCSI A
D. Front Panel USB W. Jumper block CN53
E. Serial B X. Chassis Intrusion
F. Jumper Block CN27 Y. PCI-X 64-bit/133 MHz
G. System Fan 5 Z. PCI 32-bit/33 MHz
H. Floppy disk drive connector AA. PCI-X 64-bit/100 MHz
I. Secondary IDE BB. System Fan 1
J. System Fan 6 CC. System Fan 2
K. Primary IDE DD. ICMB
L. Front Panel connector EE. NIC1 (10/100)
M. IPMB FF. NIC2 (Gbit)
N. Jumper Block CN43 GG. System I/O connectors
O. System Fan 3 HH. DIMMs
P. System Fan 4 II. Main Power
Q. HSBP B JJ. Aux Sig
R. HSBP A KK. +12 V CPU Power
S. HDD LED LL. CPU1 Fan

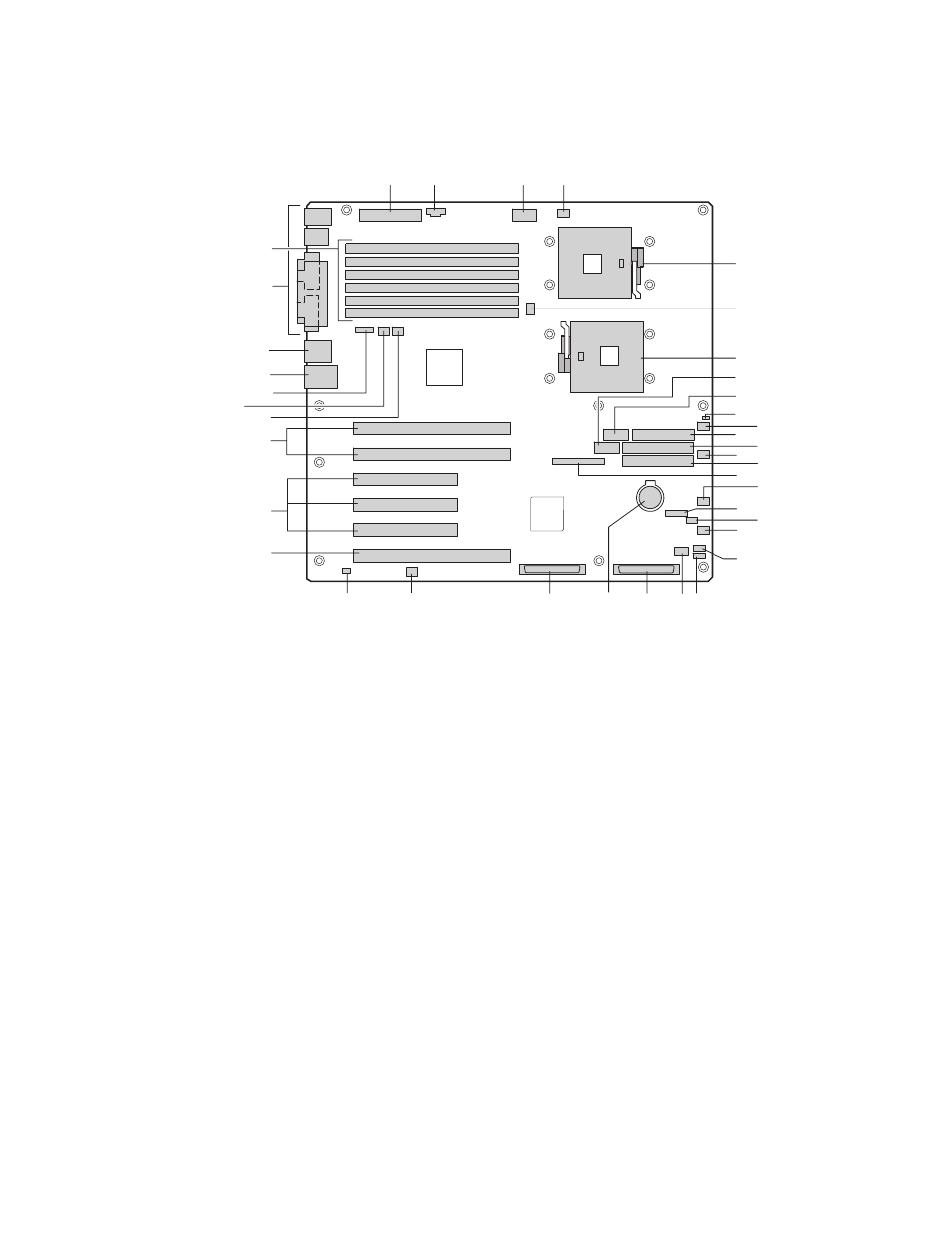

Figure 20. Making Connections to the Server Board
