Server Board installation
37
Floppy and Front Panel Cables

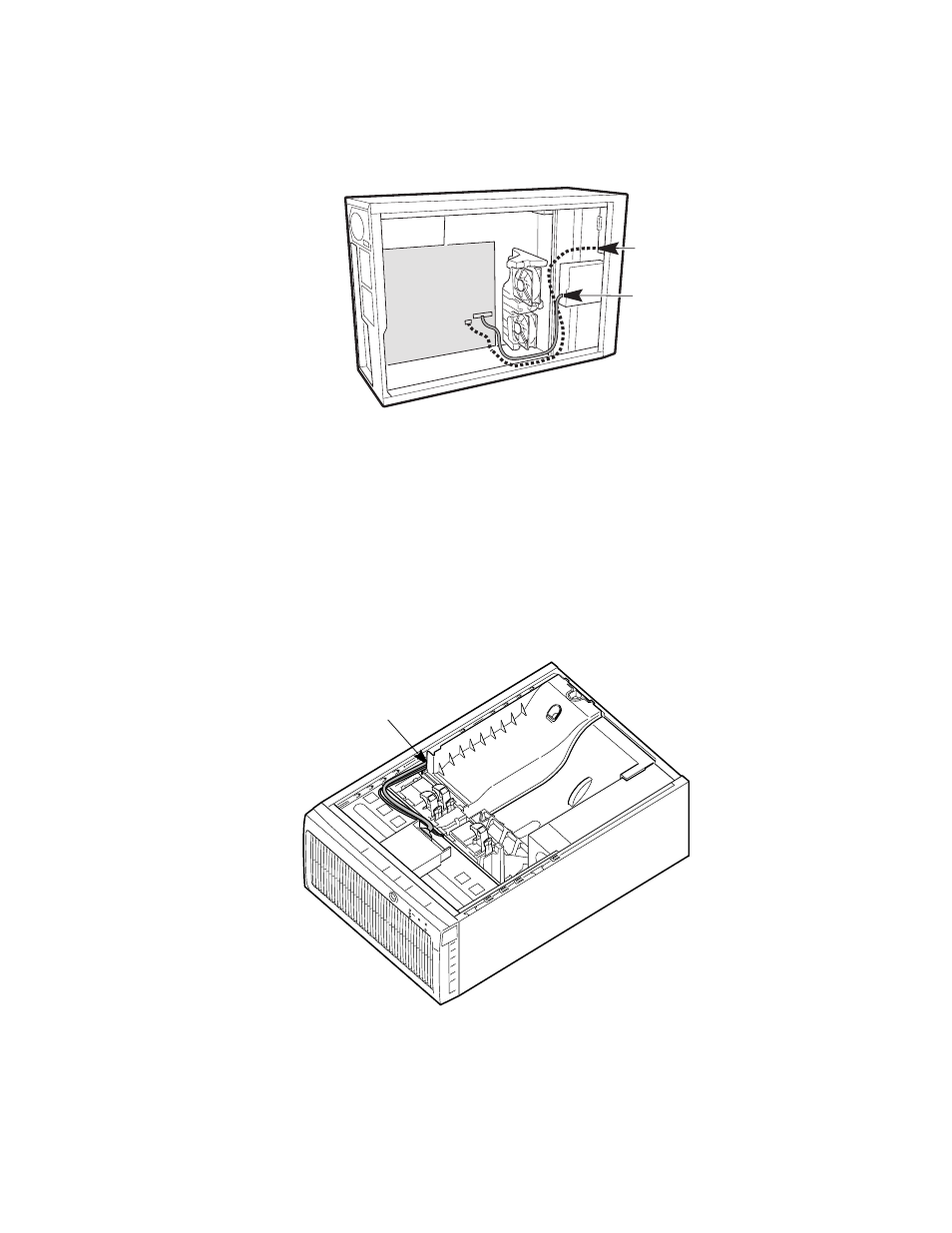

Route the floppy drive and front panel cables as shown.
A
B
OM14376
A. Front Panel Cable
B. Floppy Diskette Cable
Figure 22. Routing the Floppy and Front Panel Cables
Cable Routing – Intel SC5200 Hot-Swap, Redundant Power
Chassis
Route the floppy drive cable and the hot-swap drive bay ICMB cable between the chassis wall and
the hot-swap fan holder as shown below at location A.
A
OM14377
A. Cable Routing Location
Figure 23. Routing the Floppy and ICMB Cables
