Appendix C: Using the LoopTest Utility
iSPAN PRI PCI ISDN Users Guide 91
2. From the Start menu, select Programs, then
INTERPHASE WAN Adapters, and then LoopTest.

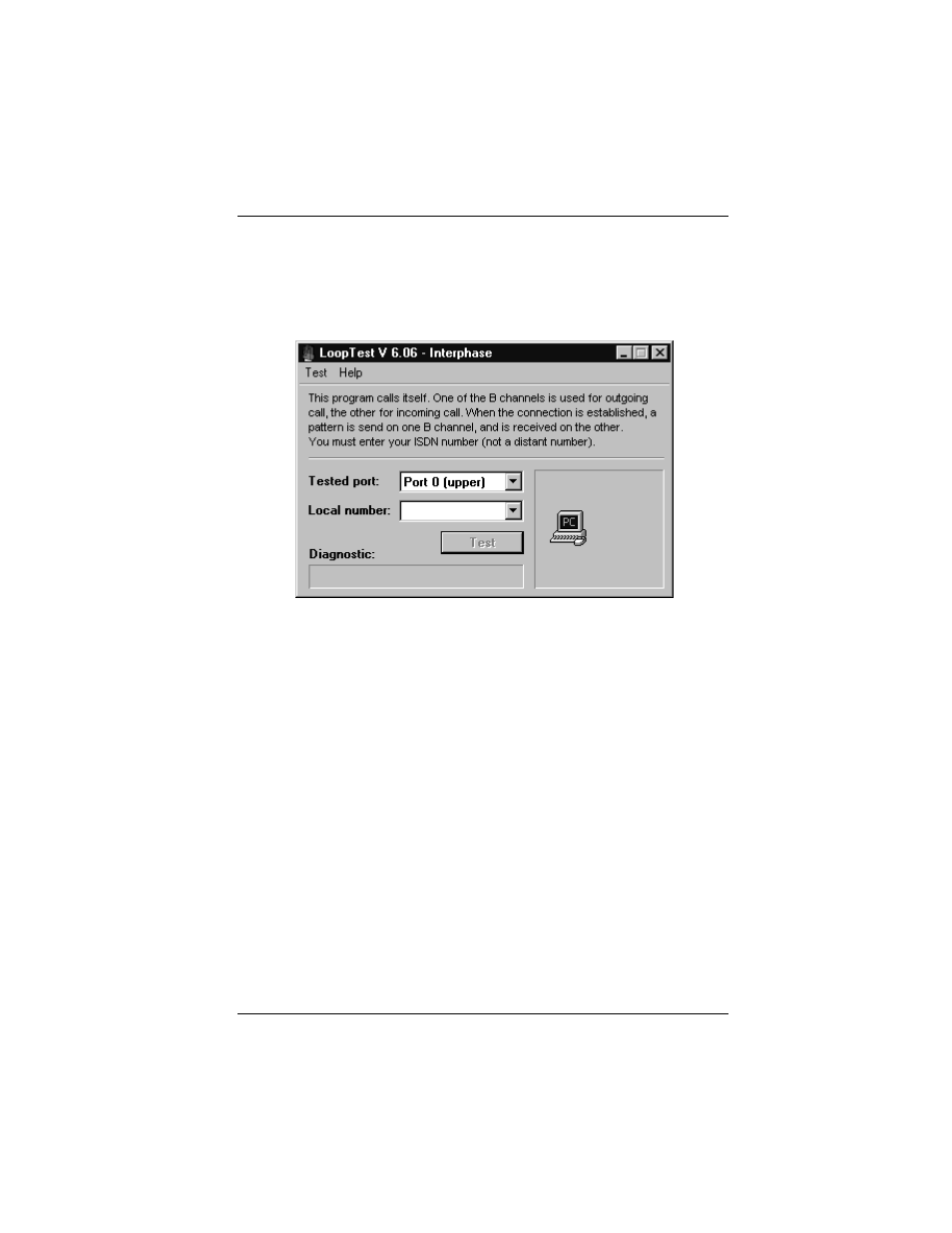

The main LoopTest dialog appears:
Figure C-2. LoopTest main dialog
3. Select the port to test from the drop-down list (if your
adapter has two PRI ports), and enter your own ISDN
number.
4. Click Test.
The diagnostic field describes the test result. If the
message Test Passed appears, your ISDN line is
working and RAS dial-in or dial-out can be done.
If an error occurred, LoopTest displays information
about the cause and circumstances of the error. For
more detailed information about these messages, see
Understanding LoopTest Messages on page 94.
