42
Hardware Maintenance Manual: xSeries 200

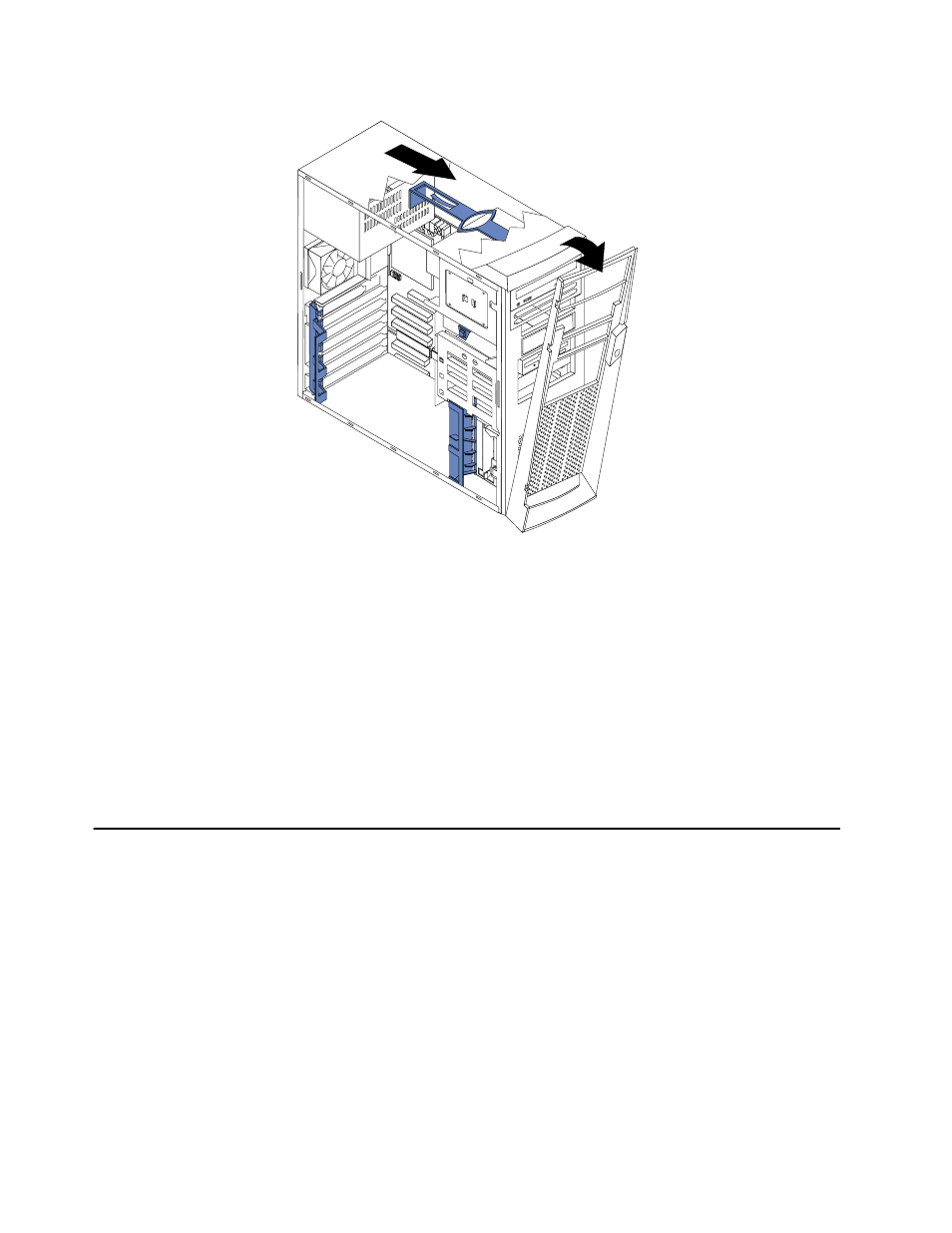

Complete the following steps to remove the bezel:
1. Review the information in “Before you begin” on page 38.
2. Turn off the server and peripheral devices and disconnect all external cables and
power cords.
3. Remove the side cover (see “Removing the side cover” on page 40).
4. Press the bezel-release latch at the top of the server to disconnect the top of the
bezel from the server.
5. Release the two tabs at the top edge of the bezel and pull the top of the bezel
slightly away from the server.
6. Pull the bezel up to release the two tabs at the bottom edge of the bezel. Store the
bezel in a safe place.
Removing the support bracket assembly
When working with some options such as hard disk drives, microprocessors, and
memory modules you must first remove the support bracket assembly to access the
location of the option.
