PCI-6886 User’s Manual

80

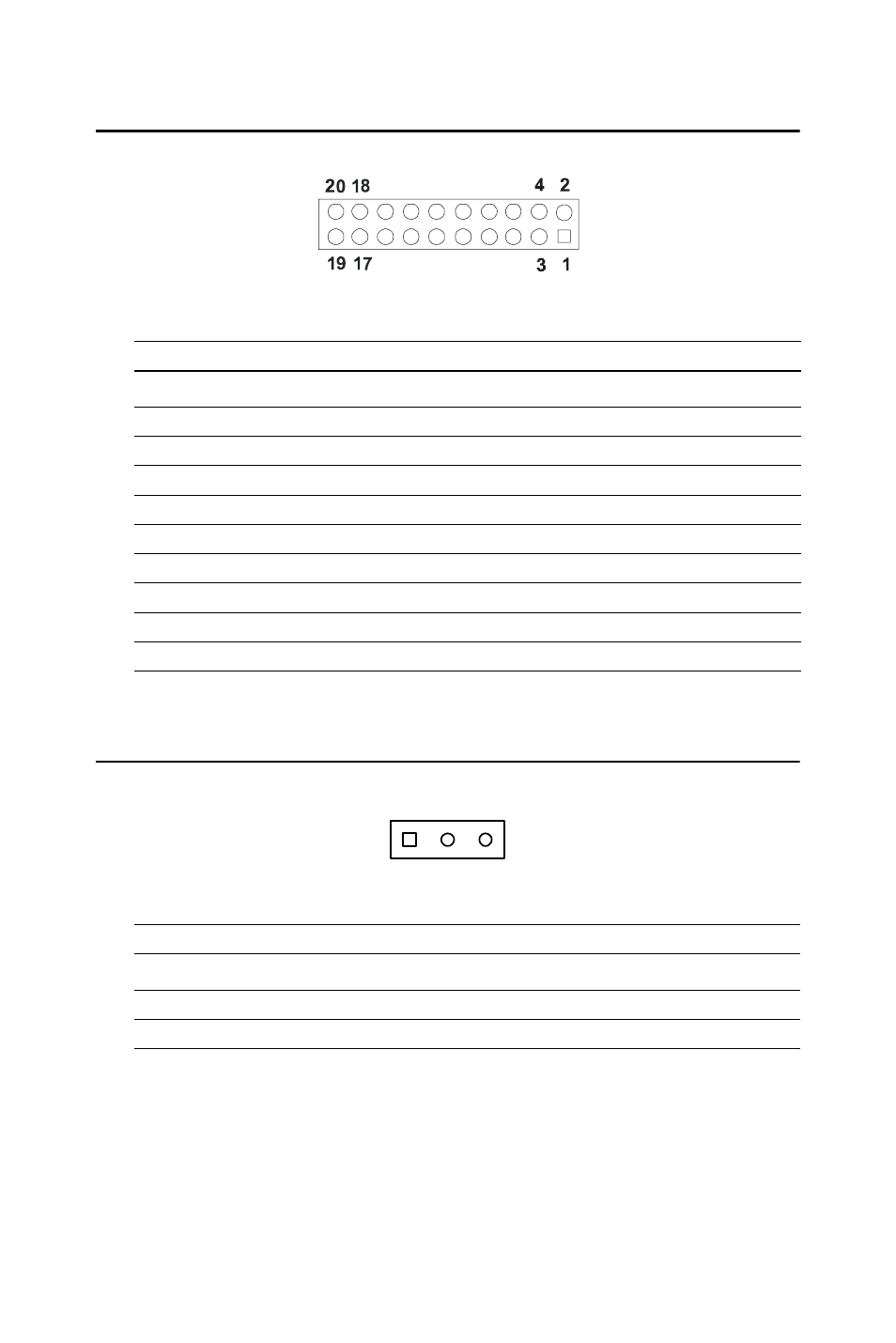

B.20 DVI connector (CN16)

B.21 CPU FAN connector (FAN1)

Table B.20: DVI connector(CN16)

Pin

Signal

Pin

Signal

1

TDC0-

2

VCC

3

TDC0+

4

TDCCLK-

5

GND

6

TDCCLK+

7

TDC1-

8

GND

9

TDC1+

10

MDVICLK

11

GND

12

MDVIDATA

13

TDC2+ 14

HOT_DETECT

15

TDC2+

16

MI2CDATA

17

VCC 18

MI2CCLK

19

NC 20

NC

Table B.21: CPU FAN connector (FAN1)

Pin

Signal

1

GND

2

+12V

3

FAN SPEED DETECT

1

2

3
