PCI-6886 User’s Manual 14

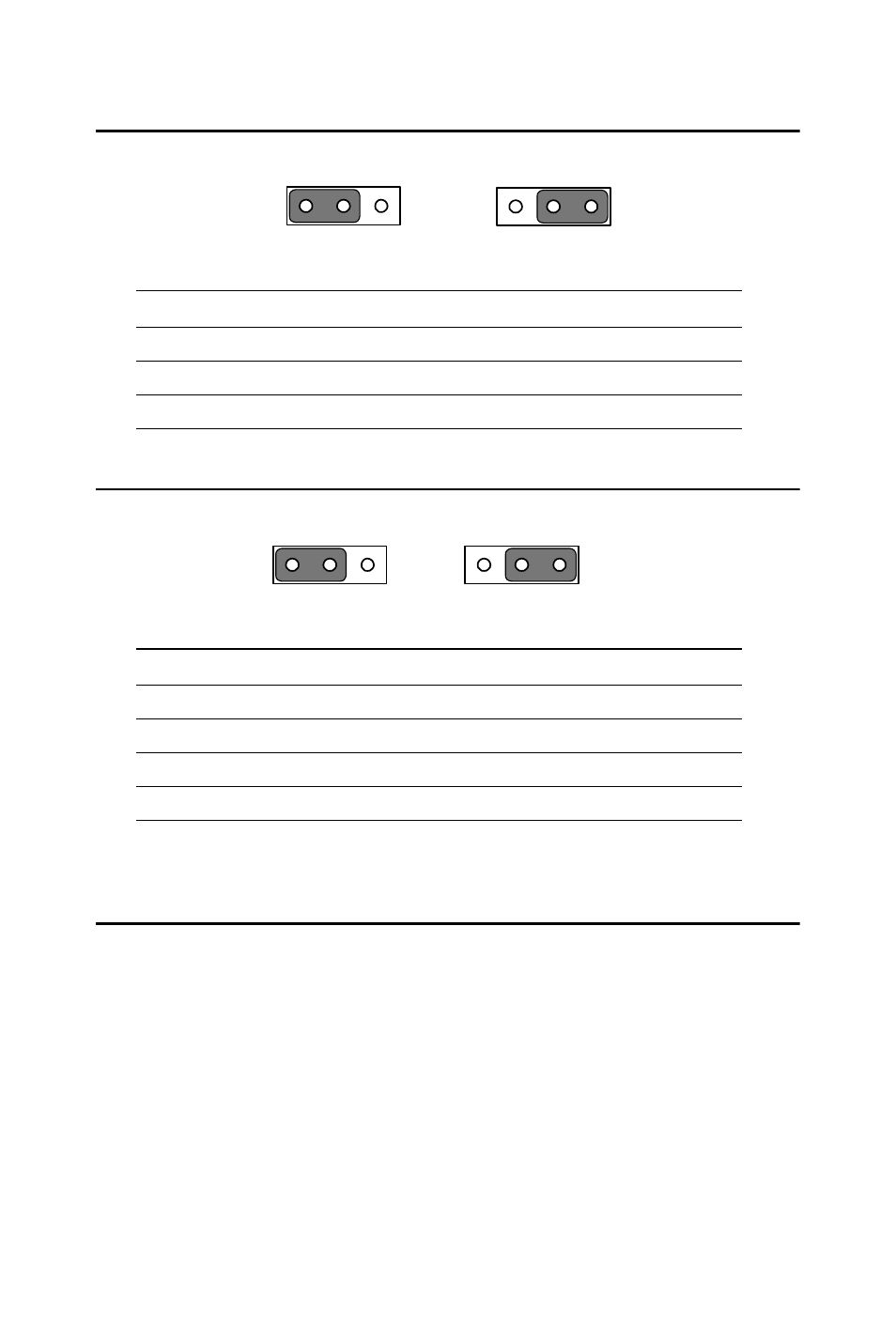

2.8 LVDS Panel Power Select(JP3)
2.9 PCI Card Power Select(JP4)
2.10 Installing SODIMMs
The procedure for installing SODIMMs appears below. Please follow
these steps carefully.
1. Make sure that all power supplies to the system are switched off
2. Install the SODIMM card. Install the SODIMM so that its gold pins
Table 2.5: LVDS Panel Power Select
Pin Function
1-2 +5V
2-3 +3.3V
Table 2.6: PCI Card Power Select
Pin Function
*1-2 +5V
2-3 +3.3V
* : Default setting
Notes The modules can only fit into a socket one way.
The gold pins must point down into the
SODIMM socket.
1 2 3 1 2 3
1 2 3 1 2 3
