PCI-6886 User’s Manual 74

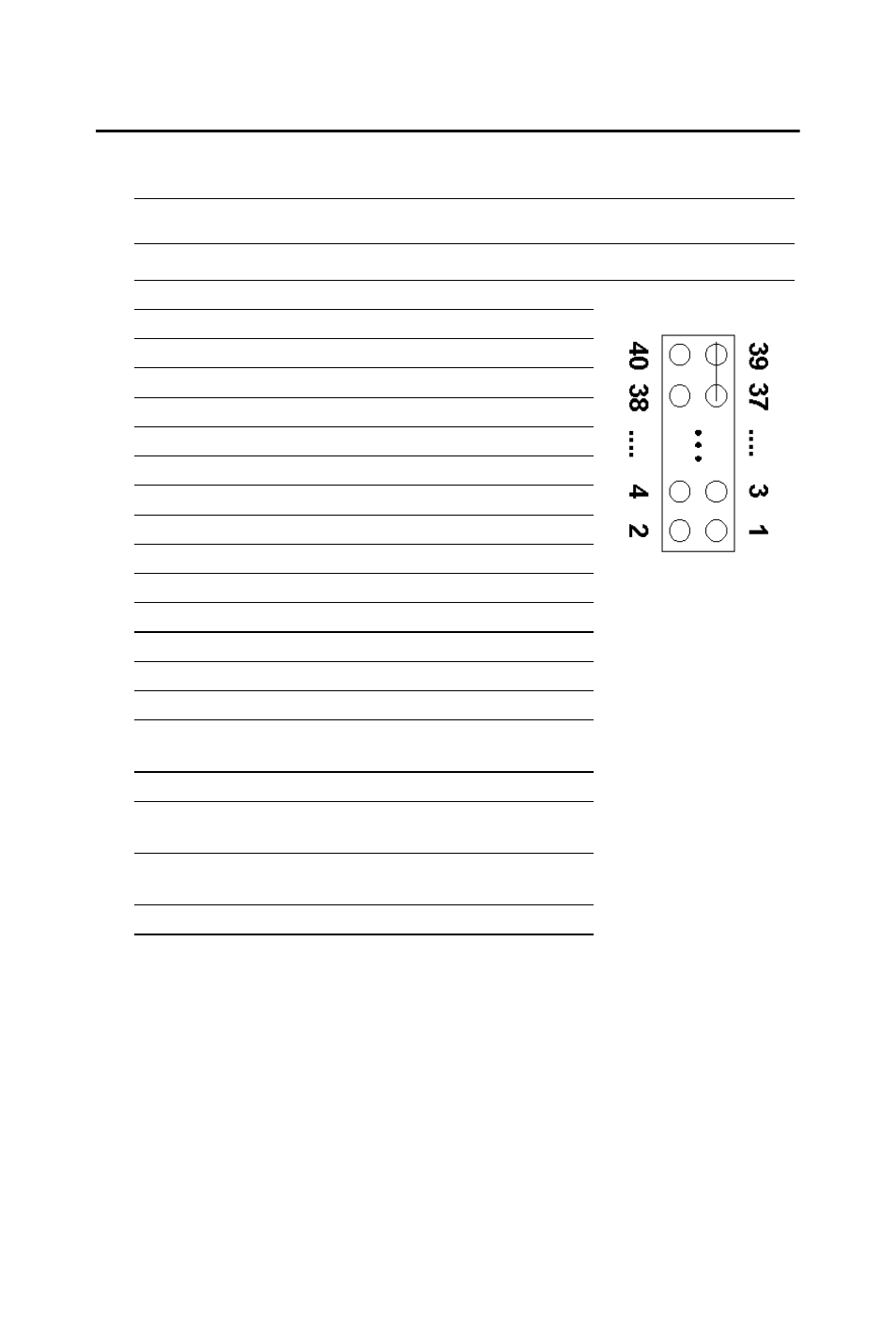

B.11 LVDS connector(CN15)
Table B.11: LVDS connector (CN15)
Pin Signal Pin Signal
1 +5V/3.3V 2 +5V/3.3V
3 GND 4 GND
5 +5V/3.3V 6 +5V/3.3V
7 LVDS0_N0 8 LVDS1_N0
9 LVDS0_P0 10 LVDS1_P0
11 GND 12 GND
13 LVDS0_N1 14 LVDS1_N1
15 LVDS0_P1 16 LVDS1_P1
17 GND 18 GND
19 LVDS0_N2 20 LVDS1_N2
21 LVDS0_P2 22 LVDS1_P2
23 GND 24 GND
25 LVDS0_C0N 26 LVDS1_C0N
27 LVDS0_C0P 28 LVDS1_C0P
29 GND 30 GND
31 LVDS_DDC
OCLK
32 LVDS_DDCPDATA
33 GND 34 GND
35 NC/
LVDS0_N3
36 NC/LVDS1_N3
37 NC/
LVDSS0_P3
38 NC/LVDS1_P3
39 NC 40 +0.3V Reference
