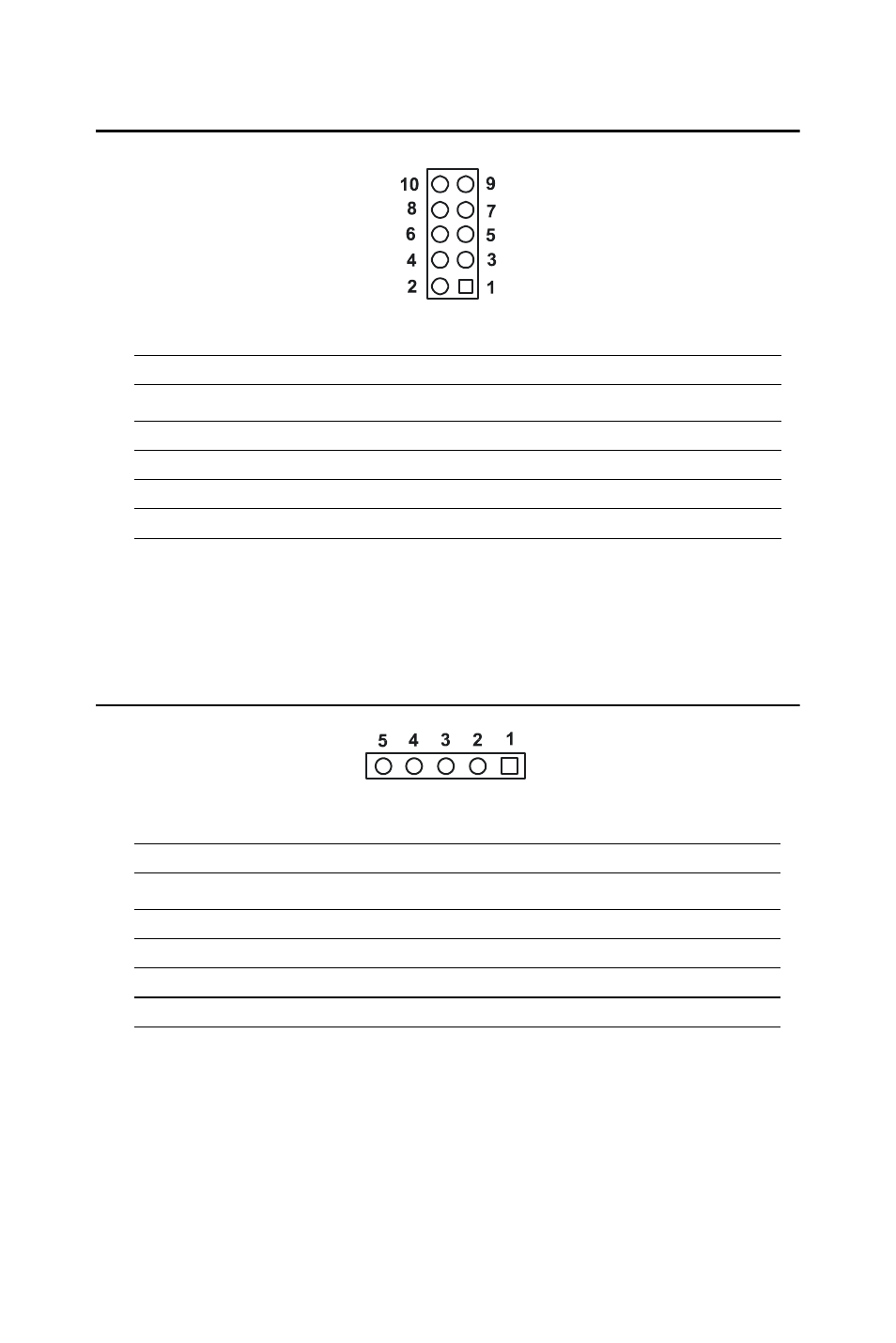

background image

PCI-6886 User’s Manual

72

B.8 USB 3, 4 connector(CN9)

B.9 LCD INV power connector(CN20)

Table B.8: USB 3, 4 connector(CN9)

Pin

Signal

Pin

Signal

1

+5V

2

+5V

3

USB0-

4

USB1-

5

USB0+

6

USB1+

7

USB GND

8

USB GND

9

GND

10

NC

Table B.9: LCD INV power connector (CN20)

Pin

Signal

1

+12V output

2

GND

3

Back-light enable signal output

4

Back-light VBR signal output

5

+5V output
