IBM System Storage DR550

Version 3.0 ------17 March 2006

Page 40

IBM Storage Systems

Copyright © 2006 by International Business Machines Corporation

Cabling between the Racks


This section is only applicable to the dual node 89.6 TB configuration of the DR550. At 44.8 TBs of
raw capacity, the first rack is fully populated. Thus to expand the storage capacity beyond 44.8 TBs,
an additional rack is required. Cabling between the racks is accomplished with two LC-LC Fibre
Channel Cables provided with the DR550 and two Ethernet crossover cables (also provided with the
DR550). The cabling between the racks accomplishes two objectives:

Connects the second DS4100 to the Fibre channel SAN switches (2005-H08s)

Connects the second DS4100 to the Ethernet ports on the P5 520 server

To connect RACK1 with RACK2, the following four connections should be made:

Rack / EIA

Device

Connector

Rack / EIA

Device

Connector

RACK2 / EIA1

DS4100_2
Ctrl_A

Host 1

RACK1 / EIA17

SAN Switch_1

Port_3

RACK2 / EIA1

DS4100_2
Ctrl_B

Host 1

RACK1 / EIA23

SAN Switch_2

Port_3

RACK2 / EIA1

DS4100_2
Ctrl_A

Ethernet

RACK1 / EIA13

DR_Engine_1

Ethernet

RACK2 / EIA1

DS4100_2
Ctrl_B

Ethernet

RACK1 / EIA13

DR_Engine_1

Ethernet


It is the customer’s responsibility to connect these cables.

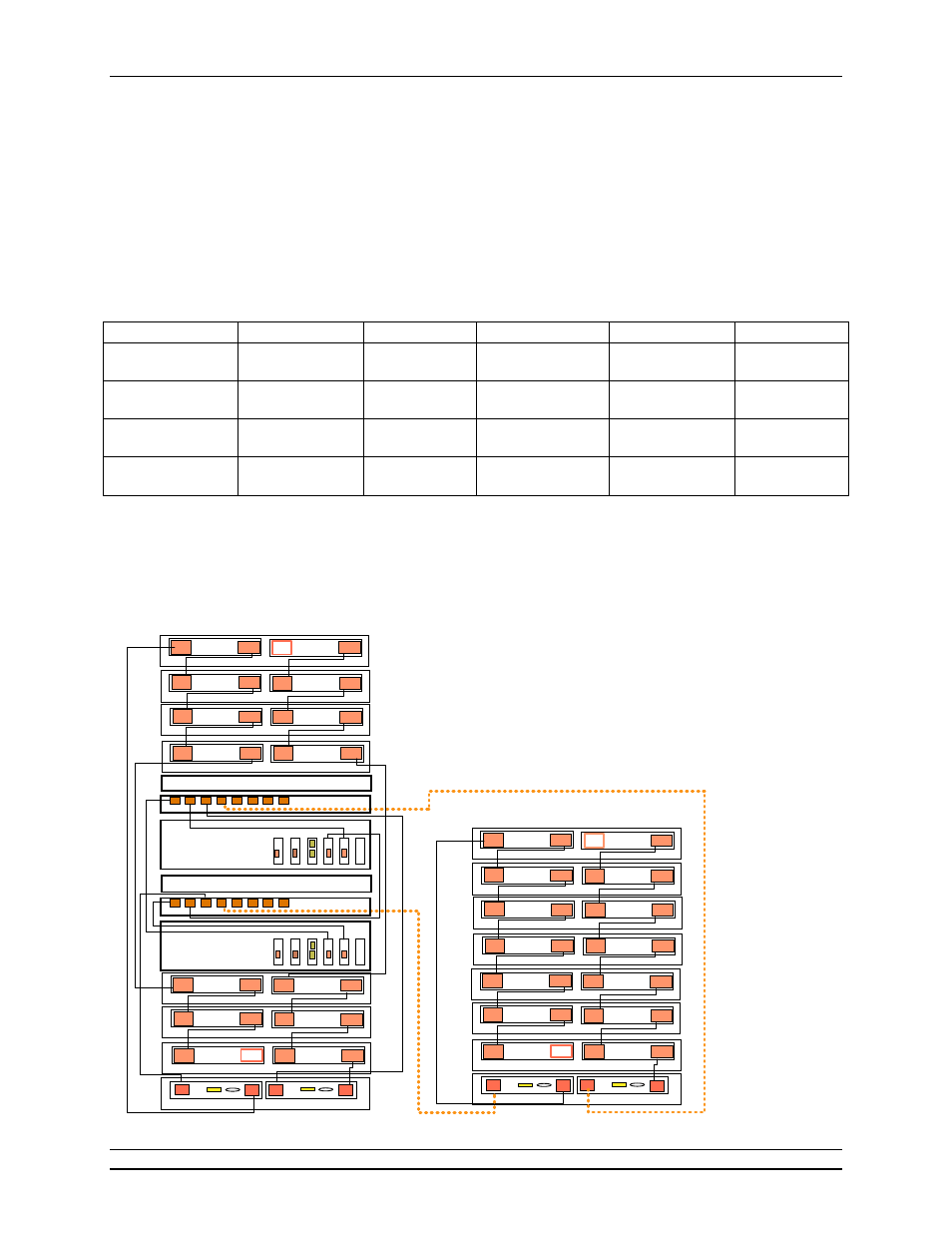

The following diagram

shows the required FC connections. Orange (dotted) cables represent fibre channels
connections. The black (thin) connections have been done in manufacturing.

89.6 TB Rack FC Interconnections

EXP100_2,1

DS4100_2

EXP100_2,2

IN

OUT

EXP100_2,3

IN

OUT

IN

OUT

IN

OUT

IN

OUT

IN

OUT

EXP100_2,4

EXP100_2,5

IN

OUT

EXP100_2,6

IN

OUT

IN

OUT

IN

OUT

IN

OUT

IN

OUT

EXP100_2,7

IN

OUT

IN

OUT

EXP100_1,1

EXP100_1,2

IN

OUT

EXP100_1,3

IN

OUT

IN

OUT

IN

OUT

IN

OUT

IN

OUT

EXP100_1,4

EXP100_1,5

IN

OUT

EXP100_1,6

IN

OUT

IN

OUT

IN

OUT

IN

OUT

IN

OUT

EXP100_1,6

IN

OUT

IN

OUT

Switch_2

0

1

2

3

4

5

6

7

Switch_1

0

1

2

3

4

5

6

7

DRS_Engine_2

1

2

3

4

5

6

A

B

DRS_Engine_1

1

2

3

4

5

6

A

B

7310-CR3

7316-TF3

DS4100_1
