Setting
up
the
remote
connection
To
configure
and
manage
the
BladeCenter
T
unit
and
blade
servers,
you
must
first
set
up
the
remote
connection
through
an
Ethernet
port
on
the
LAN
module.
The
LAN
module
is
on
the
rear
of
the
BladeCenter
T
unit
at
the
top-right
side.
LAN module
KVM module
TOP
D
TOP
D
BTM
E
BTM
E
2
4
1
3
CRT
MJR
MNR
2
Alarms
1
Cabling
the
Ethernet
port
You
can
connect
to
an
Ethernet
port
directly
from
a
personal
computer
(PC)
using
a
cross-over
cable,
or
you
can
make
the
connection
through
an
Ethernet
switch.
The
right
Ethernet
port
on
the
LAN
module
is
driven
by
management
module
1,
and
the
left
Ethernet
port
of
the
LAN
module
is
driven
by
management
module
2.

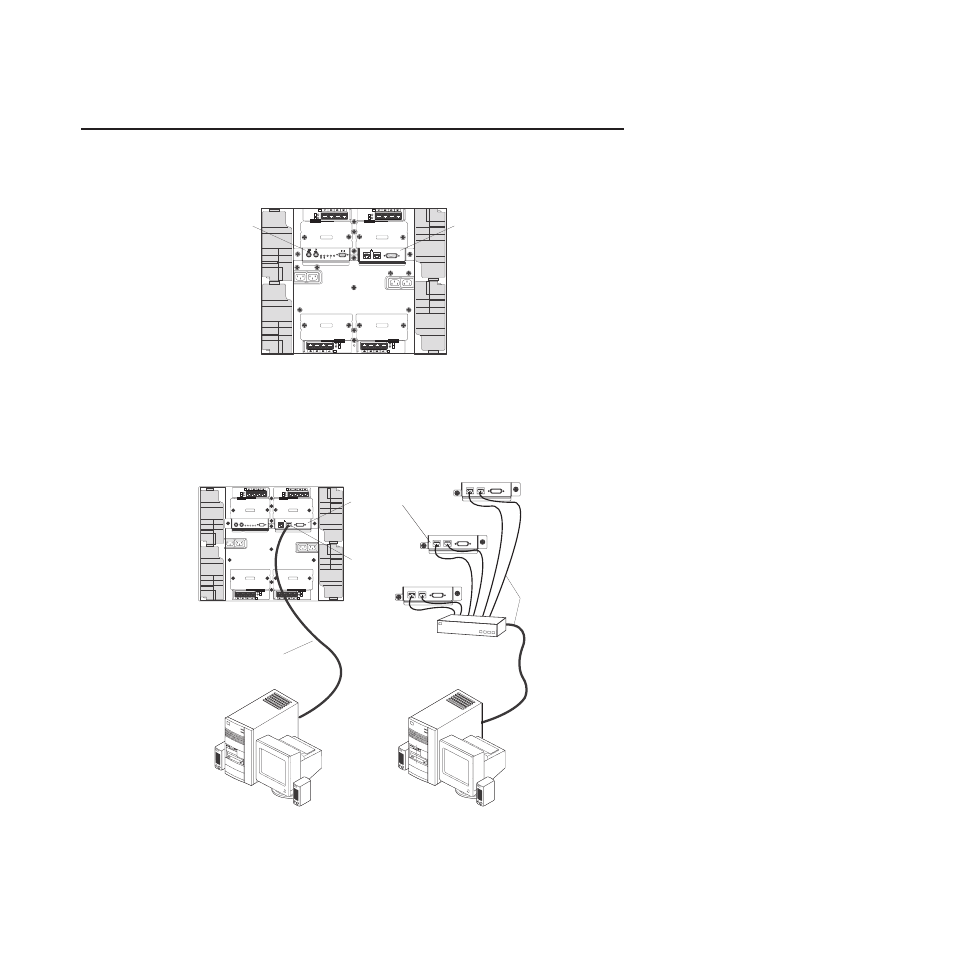

Connect directly to PC
Connect through an Ethernet switch
LAN module
TOP
D
TOP
D
BTM
E
BTM
E
Rear of BladeCenter T type 8730 unit
192.168.70.125
192.168.70.135
192.168.70.155
Ethernet switch
2
4
1
3
2
Alarms
1
RJ-45
connector
Cross-over
Ethernet cable
Standard
Ethernet
cables
Chapter
2.
Configuring
the
BladeCenter
T
unit
25
