5.2 BACnet IF Setup
This section describes how to set up BACnetIF and a setting tool (SetBACnet).
(1)CD-ROM directory structure
The folder composition of the setup disk (CD-ROM) of BACnet IF is shown.
[CD-ROM drive] /BACnetIF :Set-up folder for BACnet IF
/SetBACnet :Set-up folder for Setting Tool

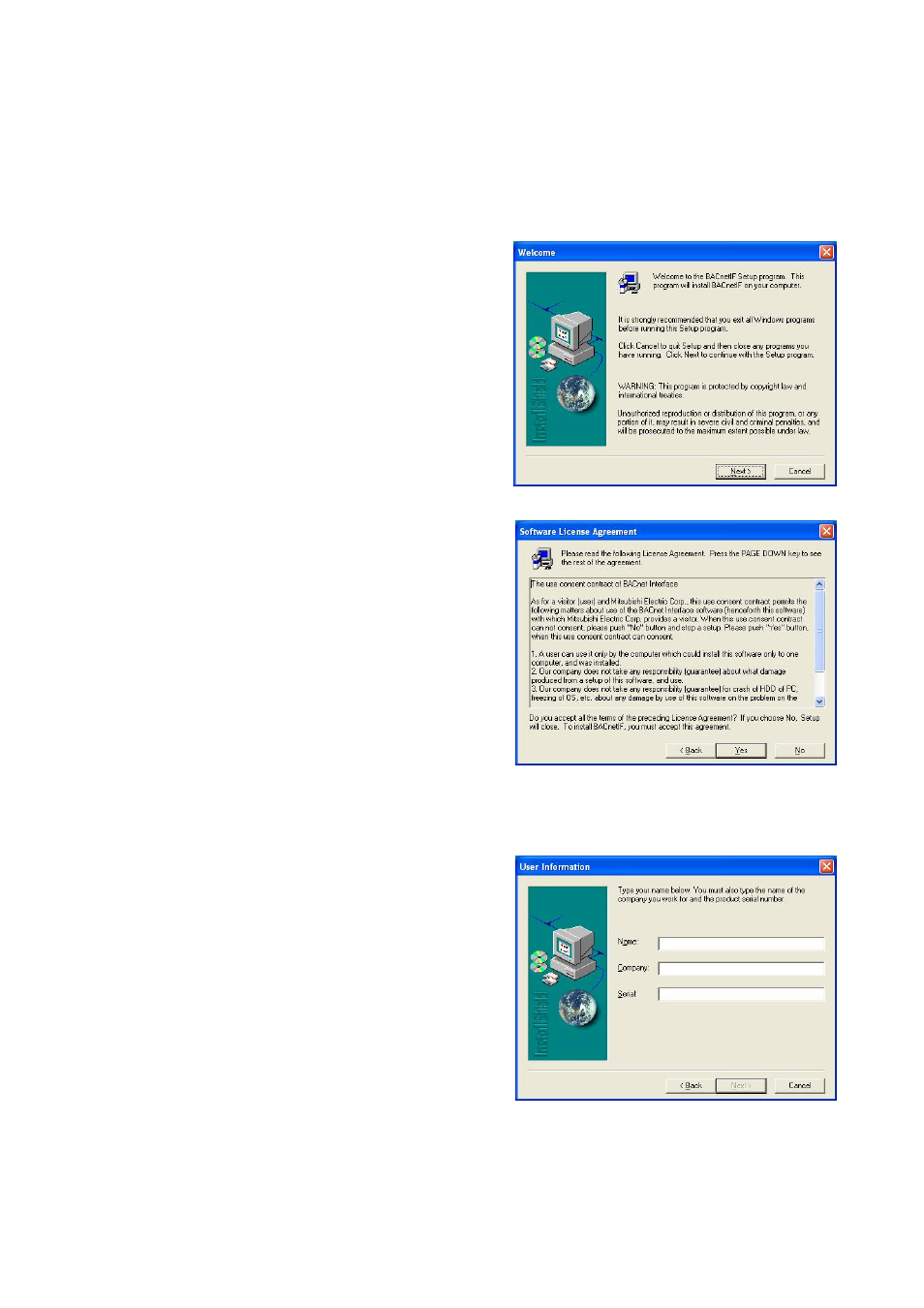

(2) Starting the setup program
Please click and start "SETUP.exe" in CD-ROM.
If there is no problem with cautions, click the
[Next] button to continue on the next screen.
* Click the [Cancel] button to stop the setup.
Setup Program;
BACnet
IF :¥BACnetIF¥ setup.exe
Setting Toll :¥SetBACnet¥setup.exe
(3) Read the software license agreement
The license agreement screens will be displayed one
at a time. Carefully read all of the agreement and check
that you agree with each item and clicking [Yes] to
continue.
*If you cannot agree with the license agreement,
click the [No] button and stop the installation of
BACnet IF.
(4) Setup the serial No.
Check a user's Name and Company name.
The name set up at the time of a Windows XP setup
is displayed.
The serial number inputs the following numbers and
Clicks a [Next] button.
Serial Number;
BACnet IF : BACNET-IF
Setting Tool : SET-BACNET
* Click the [Cancel] button to stop the installation.
