8.6.12.3
SPI (Master Mode) Timing Diagrams

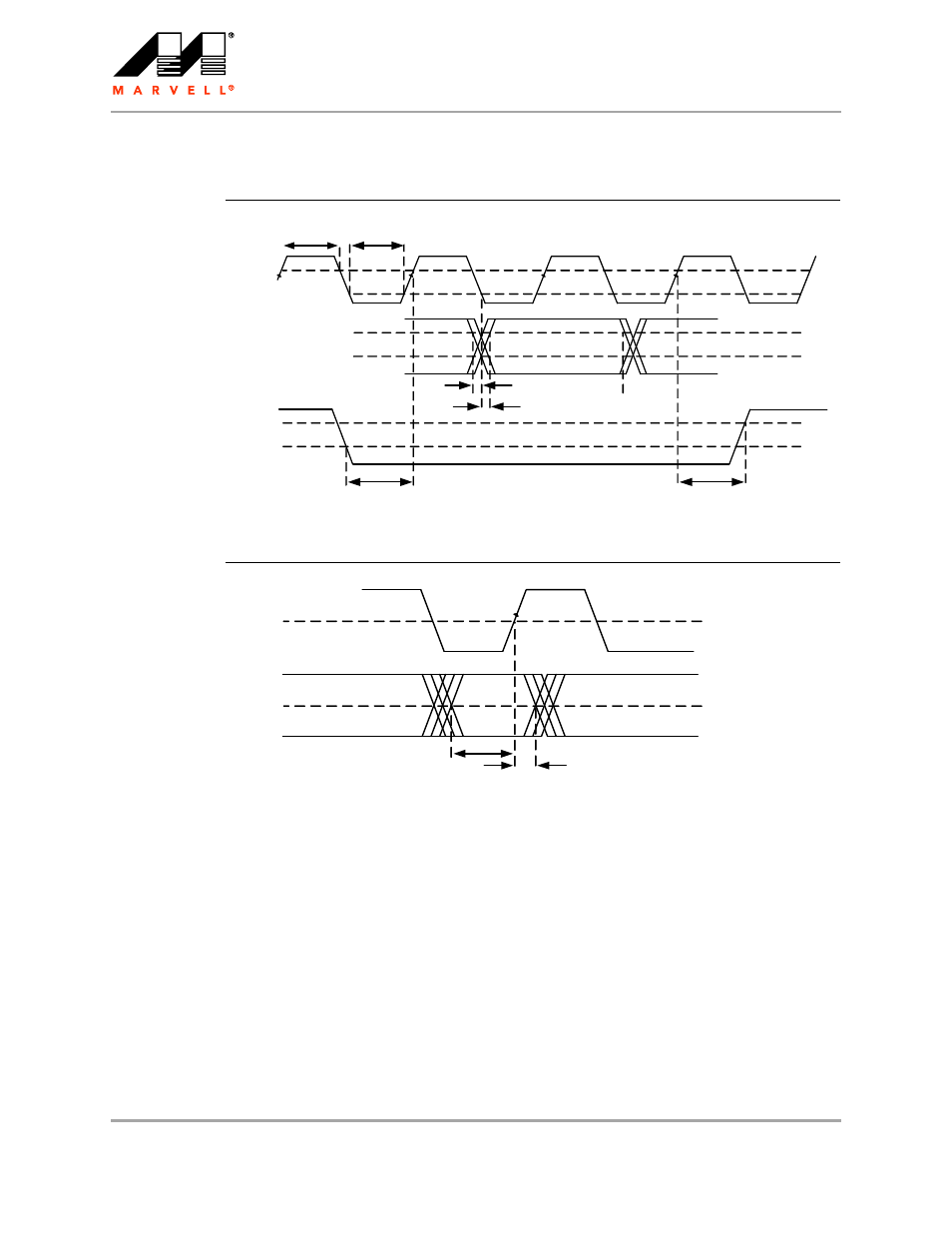

Figure 35: SPI
(Master Mode)
Output AC Timing Diagram
Figure 36: SPI
(Master Mode)
Input AC Timing Diagram
SCLK
tCL
tCH
Data
Out
CS
tDOVmax
tDOVmin
tCSB
tCSA
tSU
SCLK
Data in
tHD
