8.6.10.3
Inter-IC Sound (I
2
S) AC Timing Diagrams

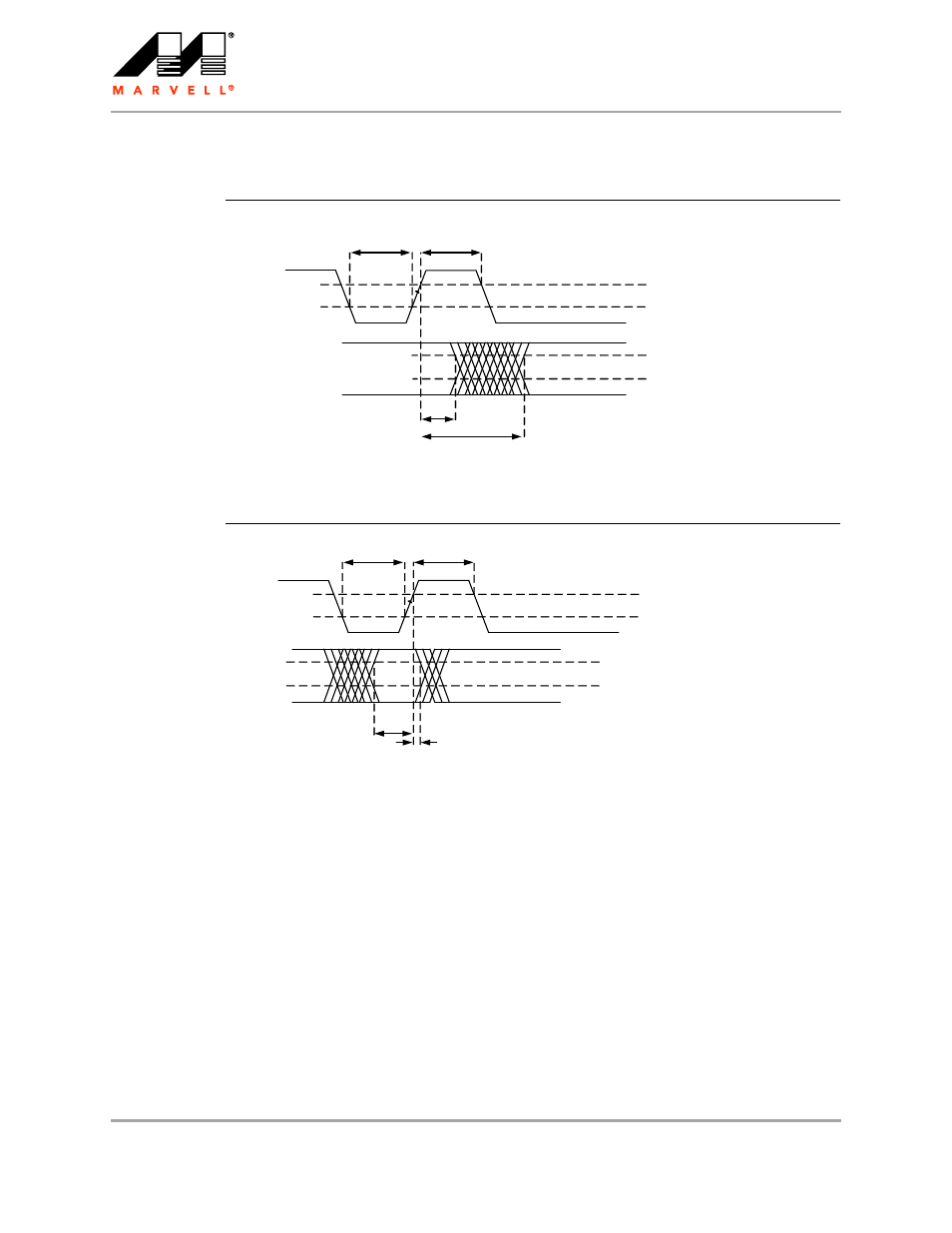

Figure 29: Inter-IC Sound (I
2
S) Output Delay AC Timing Diagram
Figure 30: Inter-IC Sound (I
2
S) Input AC Timing Diagram
I2SBCLK
I2SDO,
I2SLRCLK
VIH(min)
VIH(min)
VIL(max)
tODmin
tODmax
VIL(max)
tCH
tCL
I2SDI
VIH(min)
VIL(max)
tSU
tHO
I2SBCLK
VIH(min)
VIL(max)
tCH
tCL
